We are pleased to announce the introduction of the Marine Equipment section.
Equipment categories include barges, tug boats, crew and work boats, jack-up boats and oil drill rigs.
Additional information and pictures for these units will be displayed when they become available. Please contact the Ransome sales office
if there are any questions regarding this equipment.
|
| |
 |
| |
 |
| |
 |
| |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |
| |
|
Available Marine Equipment
|
| |
L01232023 Dredge all steel welded, 20" cutterhead suction dredge, built in 1969, overall length 120.2', width 34.0', depth 6.4' - P.O.R.
|
| |
L01232023 Ellicott Dredge 2019 year 1270-18" hydraulic cutter suction dredge, power is main engine CAT C-32, approx 5,000 hrs, auxiliary engine CAT C-9 w/ 6,482 hrs, serviced by CAT dealer - P.O.R.
|
| |
| |

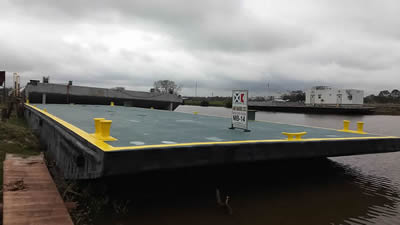

| L01232023 Flexifloat Barges 8 raked Flexifloat barges, 8' x 20' x 4' - P.O.R. |
| |
| L01232023 Flexifloat Barges 8 Flexifloat barges, 40' x 8' x 4' - P.O.R. |
| |
L05102021 Tug Boat 25ft 11 inches by 10 ft wide, truckable 600 HP, has 2 6068 John Deere turbo engines, swings a 34x20 prop with 2 3-1 509 gears, was completely rebuilt in 2018, repainted - P.O.R.
|
| |
L03302021 Dredge HOC-10EC dredge built in 1983, main engine - CAT 3408 engine @ 365HP, auxiliary engine - CAT 3406 @ 235HP, cutter size - 31 1/2" back ring @ 75HP, main pump HDM 32 - 12 x 10,
swing/ladder winch HM1D-13, Winpower 4KW electrical system, hull center section 36' x 10' x 5', hull side sections: 50' x 5' x 4', ladder length 30', spuds 12" x 40' - P.O.R.
|
| |
| |
L01202021 Tank Barge 195' x 35' x 12'6", built 1965, 11,000 bbl double hull, 6:71 GM diesel engine, raked bow and square stern, 3 cargo compartments with 1 meter dipsticks, 4 wing tanks each port and starboard with bow and stern rake voids - P.O.R.
|
| |
L01202021 Spud Barge 125' x 35' x 6', built 1981, 6 main cpt., bow and stern void cpts. - P.O.R.
|
| |

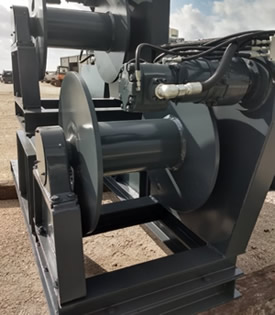

L01202021 Custom Winches new custom built double drum winches - P.O.R.
|
| |
L01202021 Skagit DMW-150 Winches four pt. mooring winches, double side by side drums, 3250' of 2" wire rope per drum w/ levelwind, air controls, 6:71 GM w/ torque converter, power shift transmission - P.O.R.
|
| |
L01202021 Fritz Culver Winch single line pull 450,000K to 550,000K SLP, cable cap. 8450 ft 1.5'', 4700 ft 2'', 2100 ft 3''; brake: band and type air operated, clutch: jaw type air operated - P.O.R.
|
| |
L01202021 Timberland Winches diesel powered tensioner winches, 4 available, model A600-1-500DH, all in good working condition, low hours - P.O.R.
|
| |

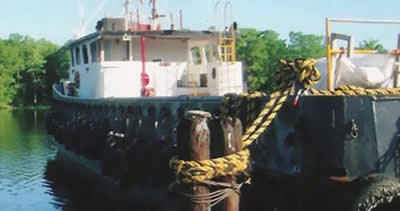

L12302020 Tug Boats 3 available (see below), call for more info - P.O.R.
. Built fall 2020, 25'3" x 14' x 5', weight 40,000 lb, telescopic house, (2) John Deere 6068 AFM85
diesels, 300 HP each, (2) TwinDisc MG-5075 2.88:1, (2) 34" x 18" 4 blade bronze propellors
. 600 HP Truckable Tug built 2020, 1100 hours
. 2006 400 HP, 2000 hours, 25.9' x 12' x 5', 13GT, 10NT, (2) 225 HP John Deere engines
|
| |
| |
|
