Demolition Front End


Additional information on the Demolition Front End will be displayed when it becomes available. Please contact our sales office for specifications and pricing.

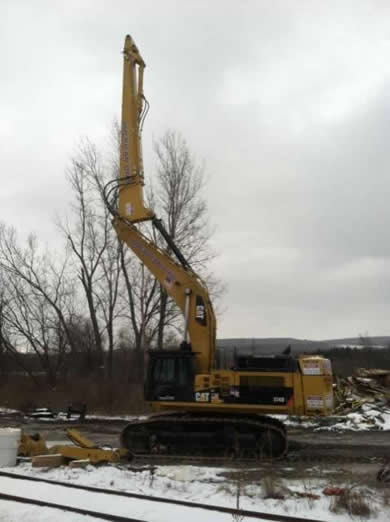

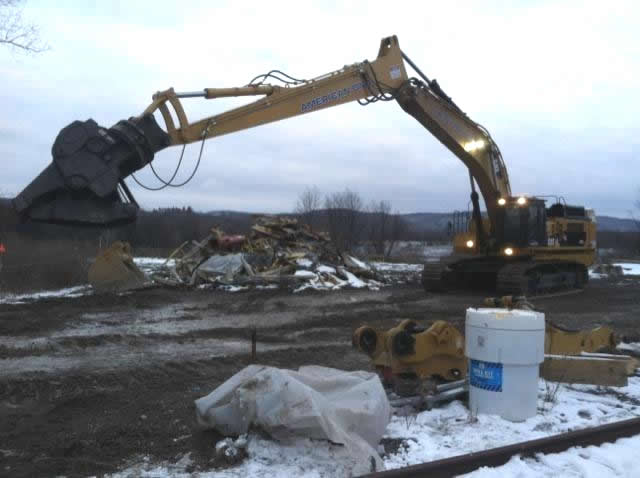

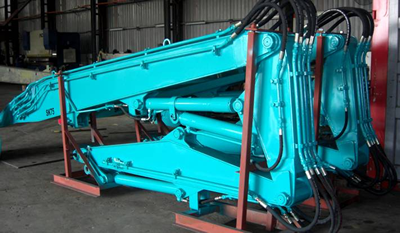

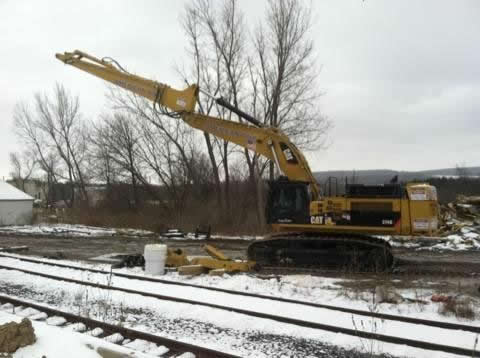

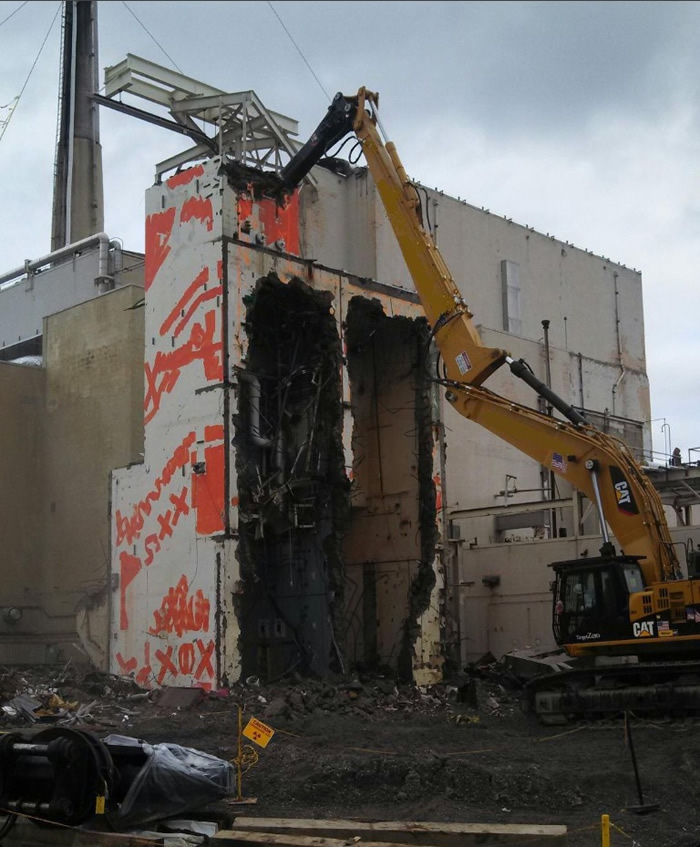

Custom Demolition / High Reach Stick

Special stick modification for high reach demolition or material handlers
(Except for 2nd row, click on pictures below to enlarge)









* * * * * * * * * * * * * * * * * * * * * * * * * * * *

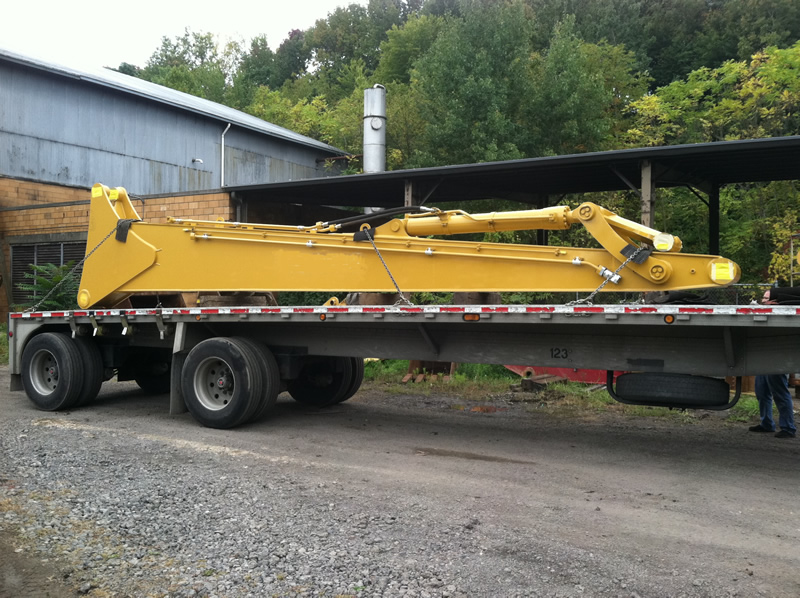

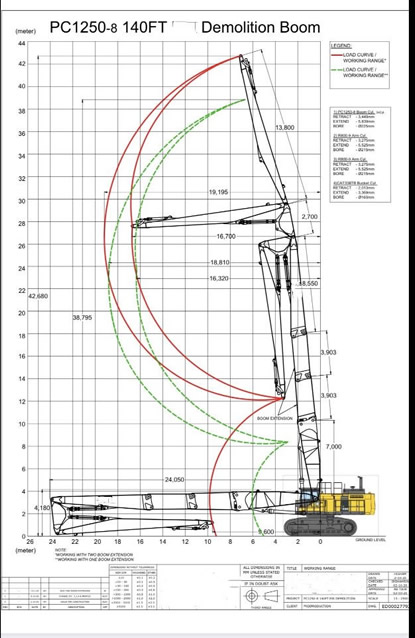

PC1250 Demolition Boom

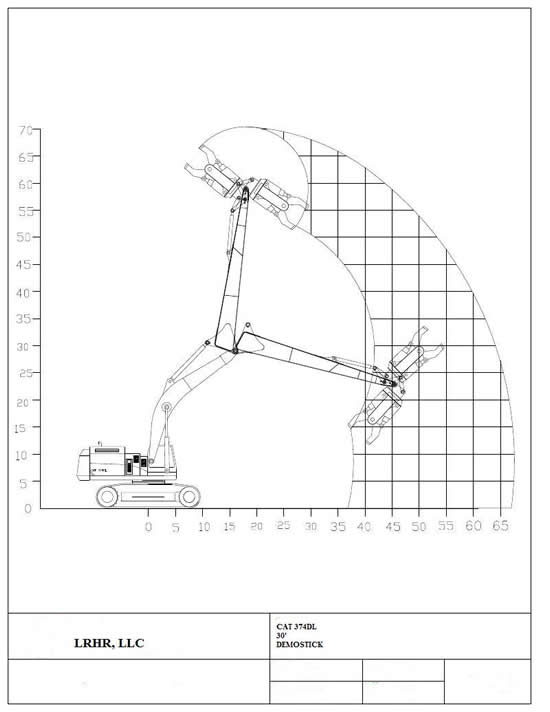

(click on chart to enlarge)

* * * * * * * * * * * * * * * * * * * * * * * * * * * *

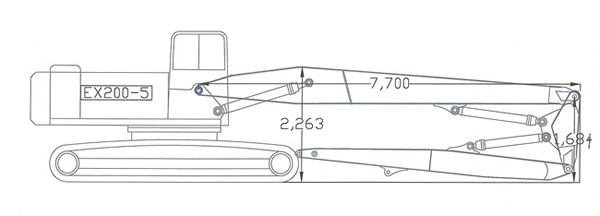

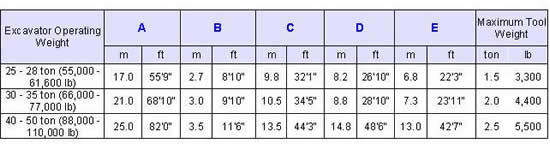

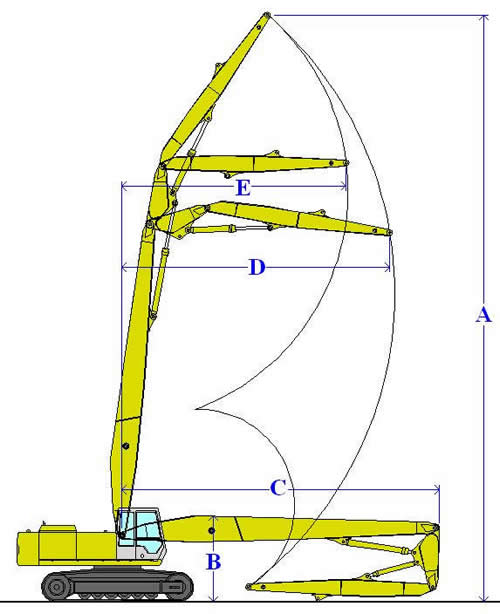

Sample 3-Piece Demolition Front End

Demolition Front End

Other styles and Lengths are available upon request.

* * * * * * * * * * * * * * * * * * * * * * * * *

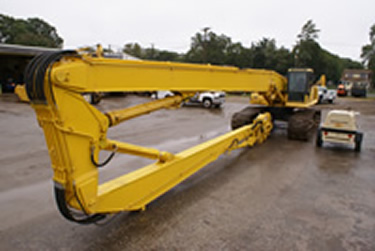

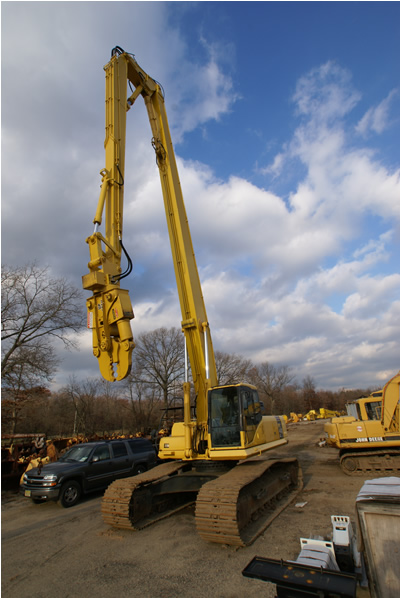

85' 3-piece ultra high demolition front end on PC400 LC-7

PC400 Front End PC400 Front End
PC400 Front End

We have complete front ends and machines in stock.
Please see our Used/Custom section.


* * * * * * * * * * * * * * * * * * * * * * * * *

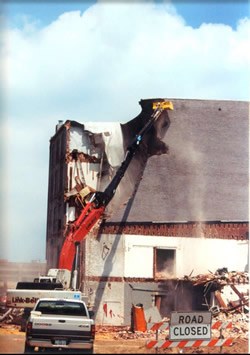

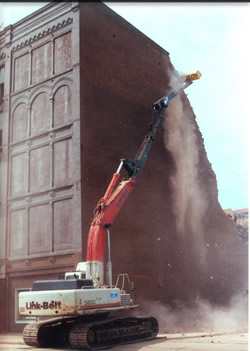

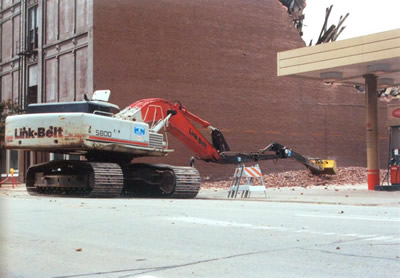

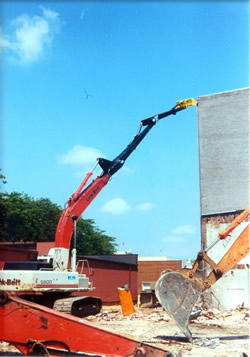

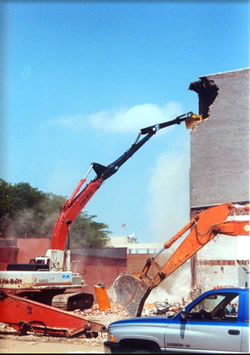

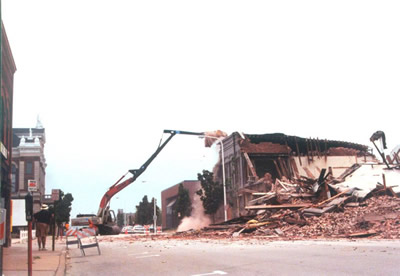

Another Way to Get Higher Reach









* * * * * * * * * * * * * * * * * * * * * * * * *

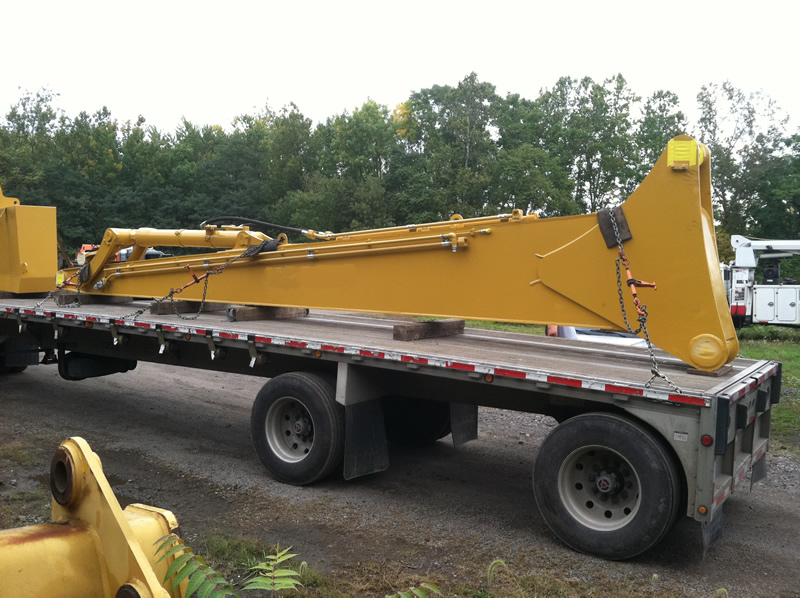

Demolition Boom for Hyundai R450

* * * * * * * * * * * * * * * * * * * * * * * * *

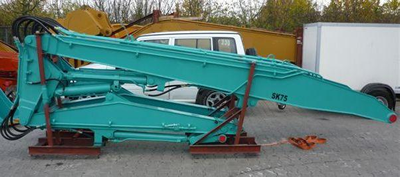

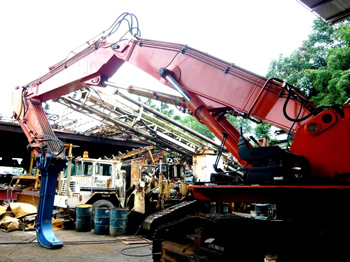

3-piece Demolition boom for under 10 ton excavator, 35 ' reach
Demolition Front End

Demolition Front End

Ideal for demolition work for low rise building and tight spacing environment


With the greater emphasis on work environment safety and stricter regulation in the industry, high reach demolition boom is fast becoming the choice attachment for demolishing old buildings. Replacing the traditional and accident-prone practice where excavators were lifted onto the building to carry out the high risk tasks. The demolition boom has changed the entire concept in tearing down buildings, not only improving the overall safety standard, but has also extended the working radius and reach of the attachment where standard machine and traditional practice fall short in this respect.

An ultra high reach demolition boom is a purpose-built attachment to elevate demolition tool in tearing down multi-story buildings. The beauty of the demolition boom is in its ease of positioning and flexibility in maneuvering of tool in carrying out primary and secondary demolition jobs safely. Demolition attachments are engineered for performance, reliability and low total cost of ownership in mind. Only quality steel is used in fabrication. Demolition front attachment for greater than 40 metric ton (88,000 lb) excavator will have a detachable and modular main boom with a quick coupling joint for efficient mounting and dismantling, as well as ease of ground handling and transportation.

We design and customize demolition solutions for every makes and models of hydraulic excavator, starting from 10 metric ton (22,000 lb) mini excavator and upward. Depending on your excavator size, the demolition boom can easily handle work tool ranging from 0.5 ton (1,100 lb) to 4 ton (8,800 lb) of weight.



* The above specifications are for reference only, actual working range may vary from machine models.
** For the benefit of continuous product improvement, specifications are subject to change without prior notice.


* * * * * * * * * * * * * * * * * * * * * * * * *



Special Application, 3-Piece Front End

Demolition Front End Demolition Front End

for Vibratory Sheeting and Pile Driving


* * * * * * * * * * * * * * * * * * * * * * * * *


Ex370 3-Piece Demo Front, 80 ft.

Ex370 3-Piece Demo Front




Return to Top
* * * * * * * * * * * * * * * * * * * * * * * * *

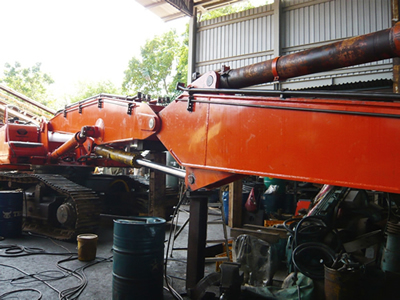

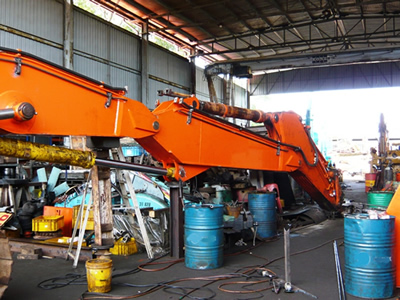

Hitachi 3-piece Demolition Front End
