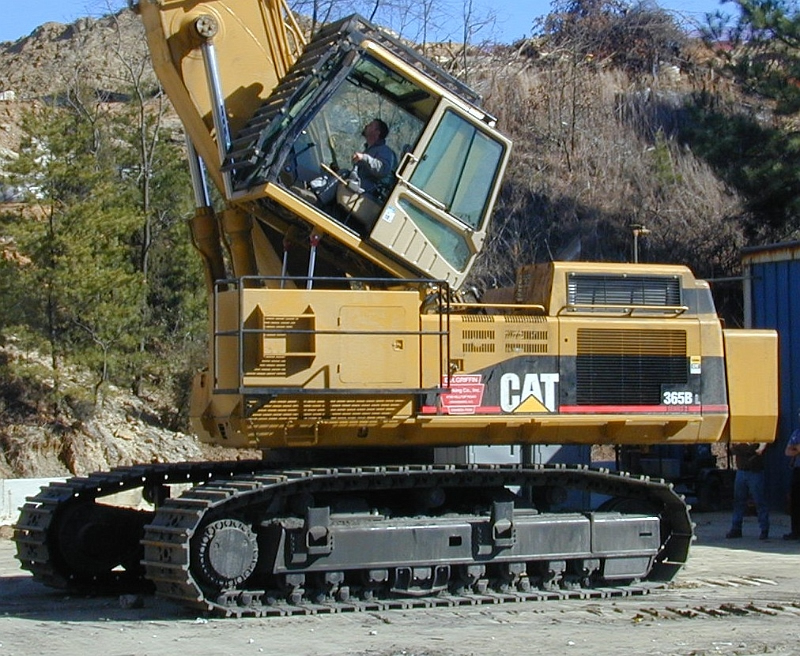

   Elevated Cab

   About our Factory

   Clamshells &
   Special
   Attachments

   Contact Info

   Directions





Custom Modified Booms / Sticks
and Repairs


Click here for Photo Gallery section



We are pleased to announce the introduction of the Custom Booms and Sticks section.

Additional information and pictures for these units will be displayed when they become available. Please contact the Ransome sales office if there are any questions regarding these attachments.

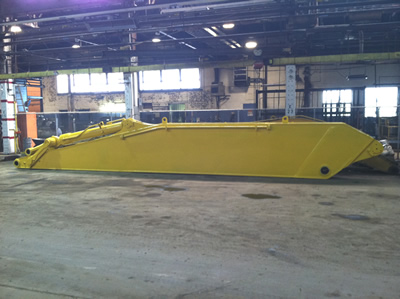

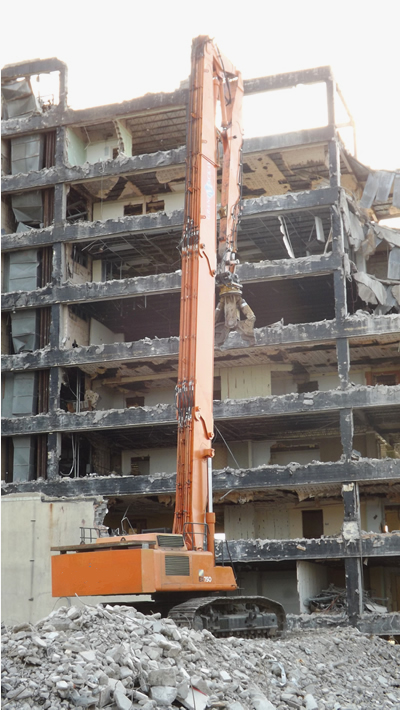

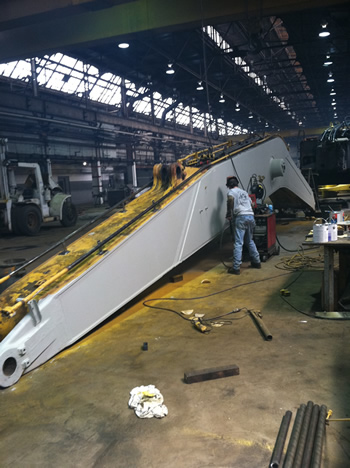

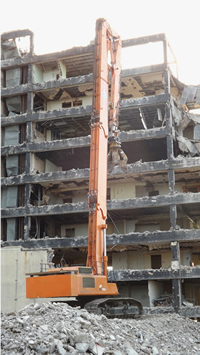

12102012   Custom Demolition / High Reach Stick  Special stick modification for high reach demolition or material handlers - P.O.R.       (Click on pictures to enlarge)








DEMO STICK FOR JD/HITACHI 450

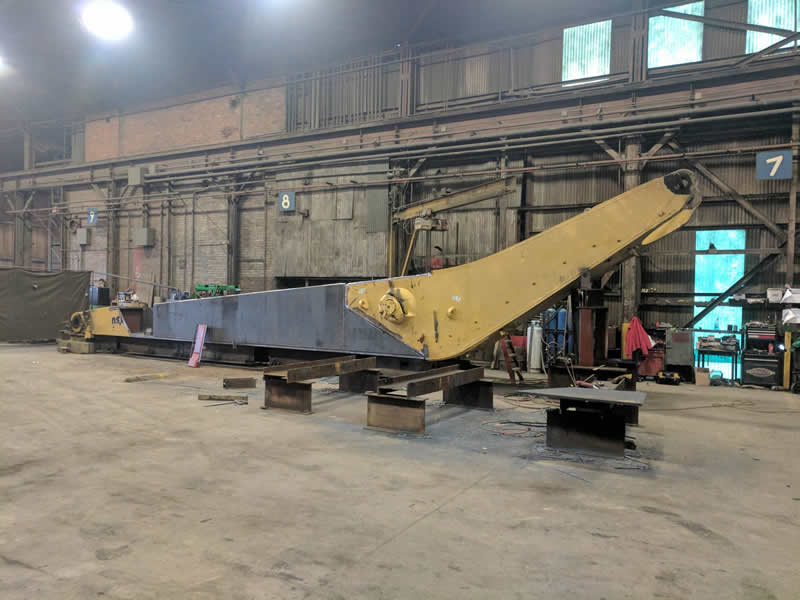

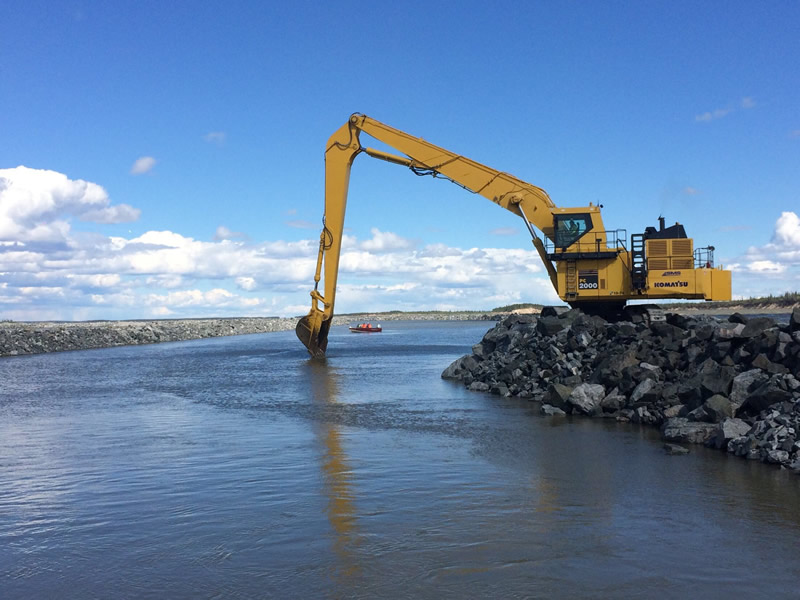

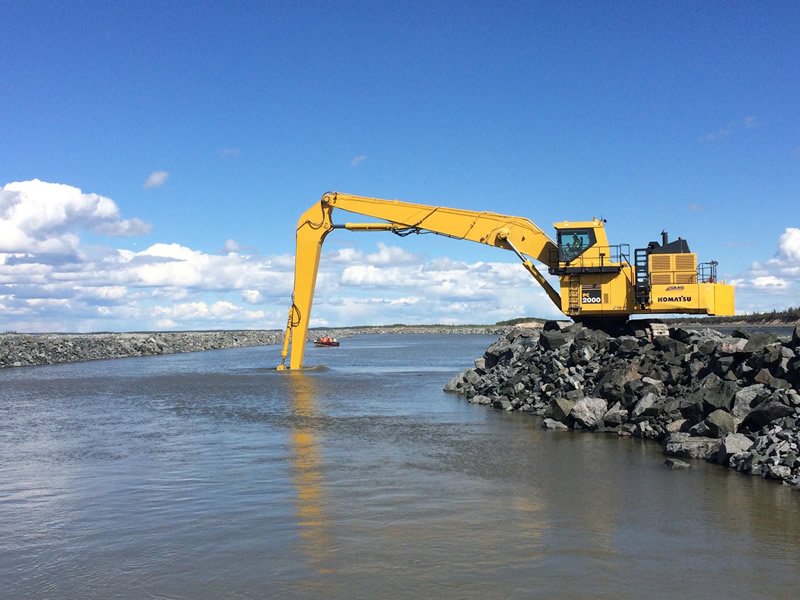

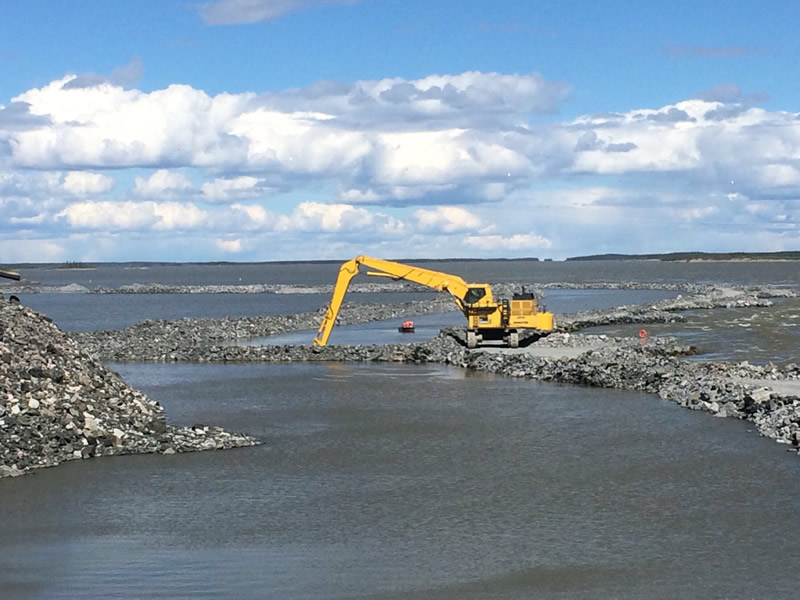

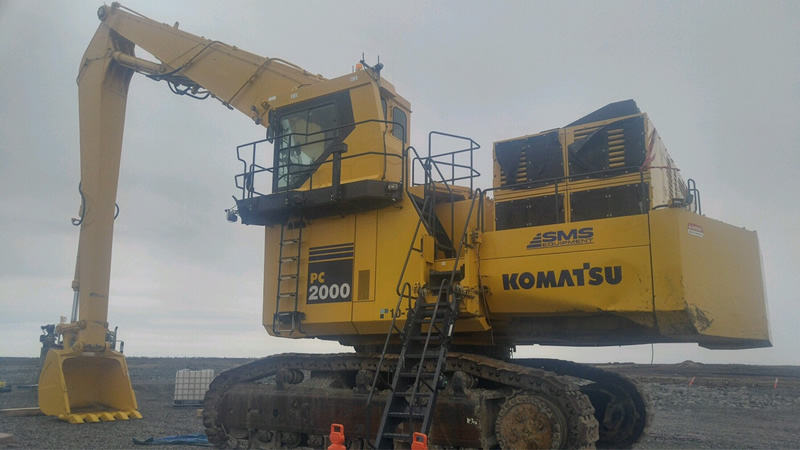

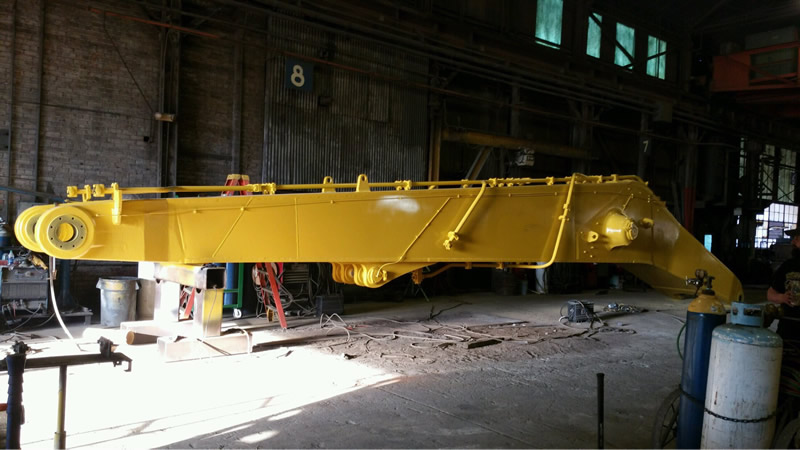

05262017   Komatsu PC2000  cut and stretch, newly custom fabricated 90 long reach excavator front to fit the Komatsu PC2000 - P.O.R.     (Click on pictures to enlarge)




      Completed unit

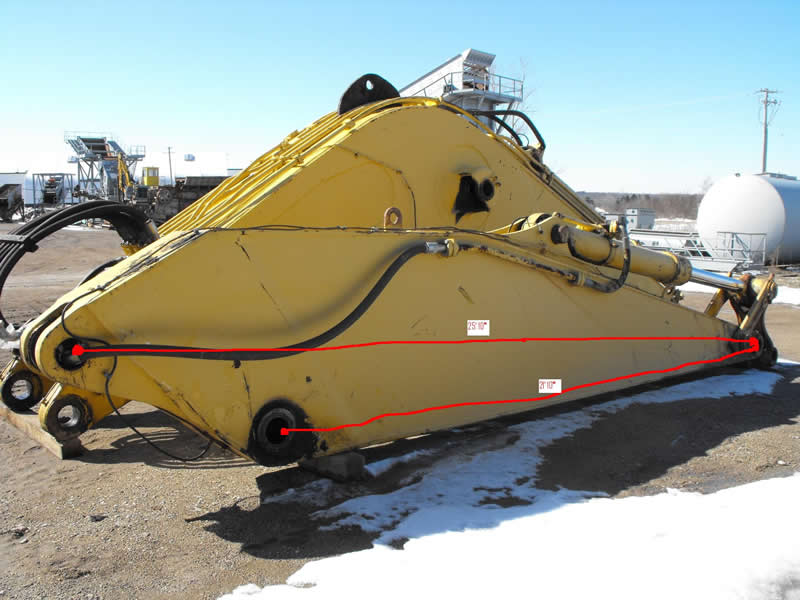

04092013   PC1000 Stick  being cut and stretched to 28 feet and converted for a PC1250 front
   (Last picture shows painted unit)   - P.O.R.

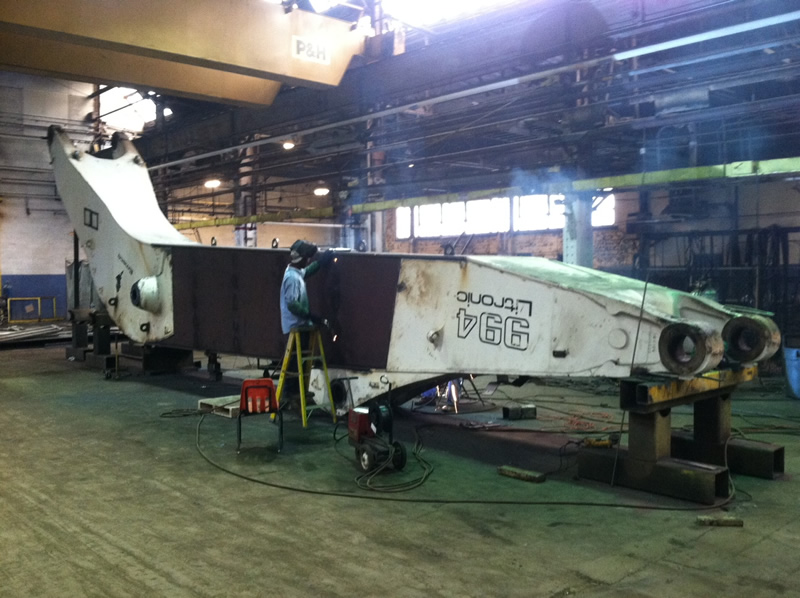

10212013   Liebherr 994  boom and stick we are cutting and stretching to 94 - 95 feet, uses a 9 yd bucket - P.O.R.   (Click on pictures to enlarge)




      Completed unit





07072014   Komatsu PC600  boom stretched to 75 feet - P.O.R.
  (Click on pictures to enlarge)

      Before pictures

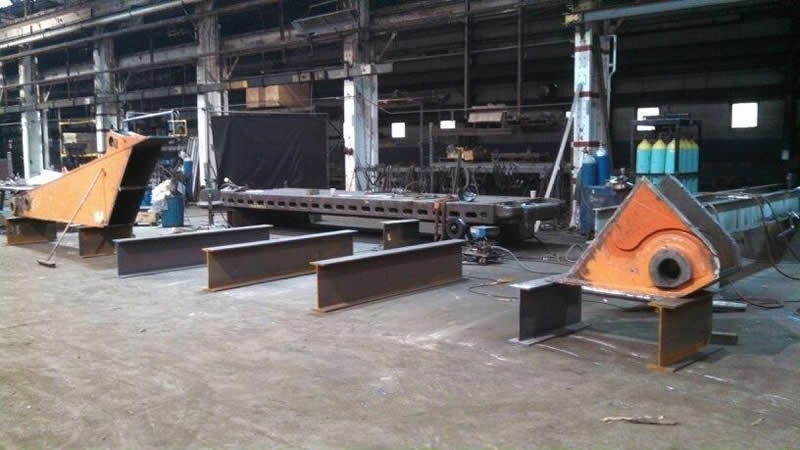

      In progress

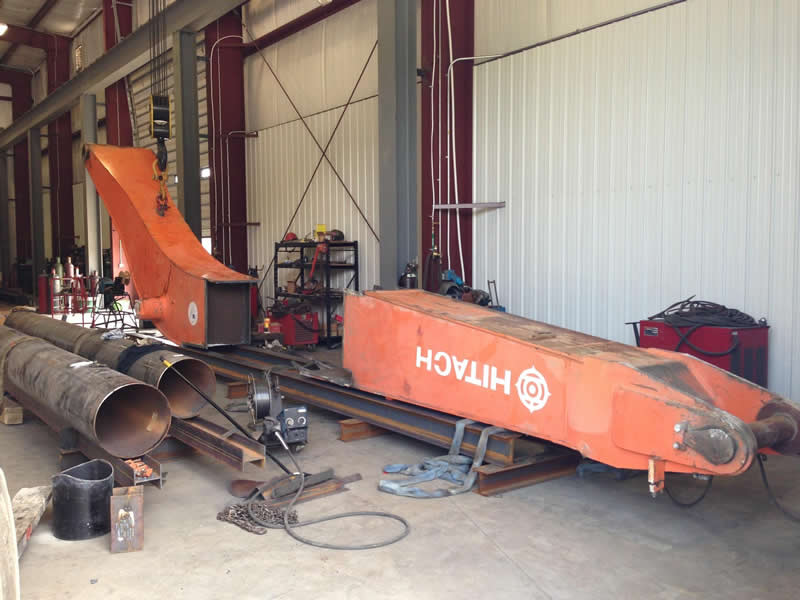

03232014   ZX850LC-3  boom and stick for cutting and stretching, total reach will be 100 feet for ZX870, stick was 14', after job completion - stick is 47' and boom is 54'4" - P.O.R.
  (Click on pictures to enlarge)

      Before pictures


      In progress


      After pictures



05062014   CAT 375  cut and stretched to 26 feet - P.O.R.   (Click on picture to enlarge)

03022014   Liebherr 984  92 foot for 984 cut and stretched - P.O.R.   (Click on picture to enlarge)

08072013   Hitachi ZX800  cutting and stretching boom to 35 feet on ZX800 - P.O.R.
  (Click on pictures to enlarge)

      Before pictures


      After pictures

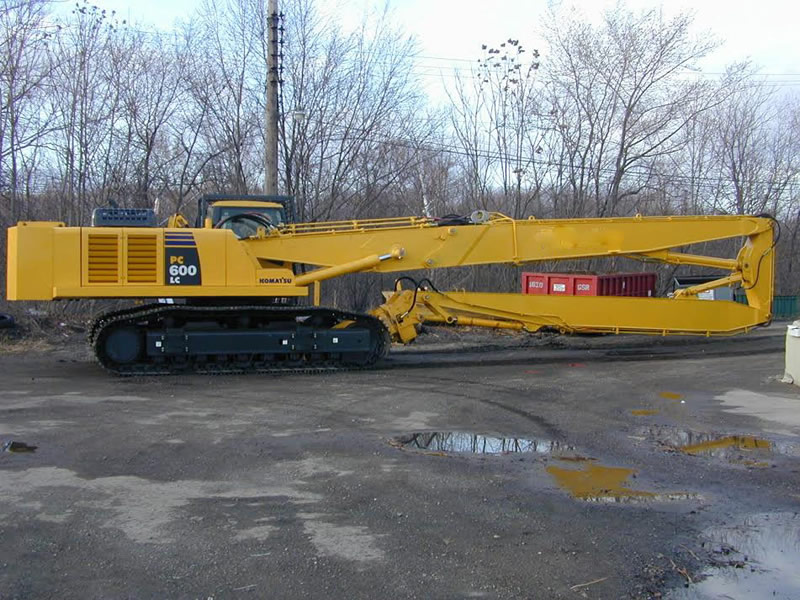

03182013   Komatsu PC600  boom and stick cut and stretched from 40 foot to 75 feet - P.O.R.
    (Click on pictures to enlarge)


      After repair      This front went from 40' reach to 75' reach when stretched



07252013   Komatsu PC1250  standard PC1250 boom and stick being cut and stretched to 100 feet - P.O.R.         (Click on pictures to enlarge)

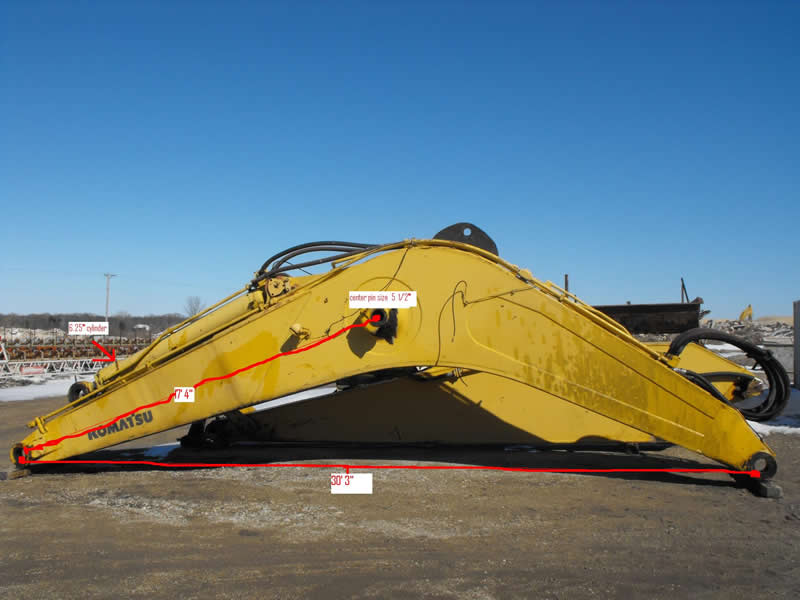

07022012   Boom and stick conversion  55 footer now an 81 foot front...PC1000 (boom 30 feet, stick 25 feet) stretched and converted to PC1250 (boom 46 feet, stick 35 feet) - P.O.R.
  (Click on pictures to enlarge)

      Before pictures


      After pictures






* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

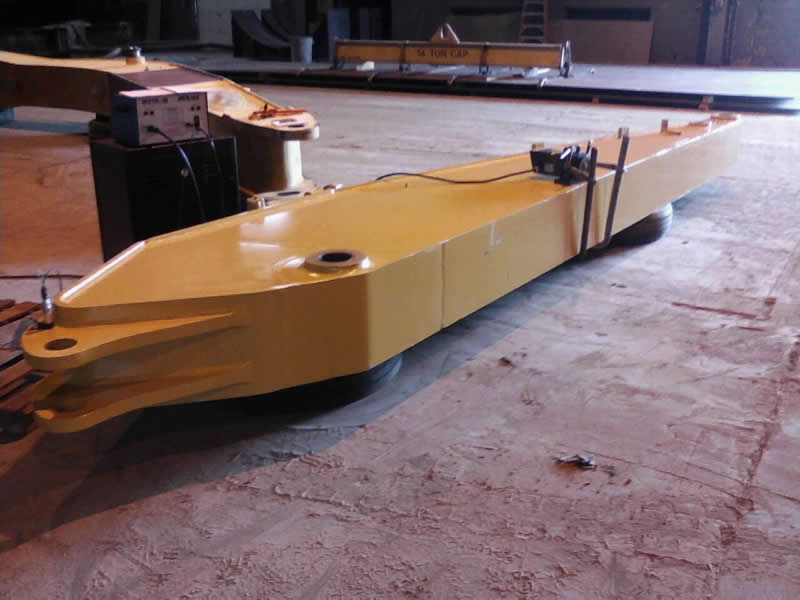

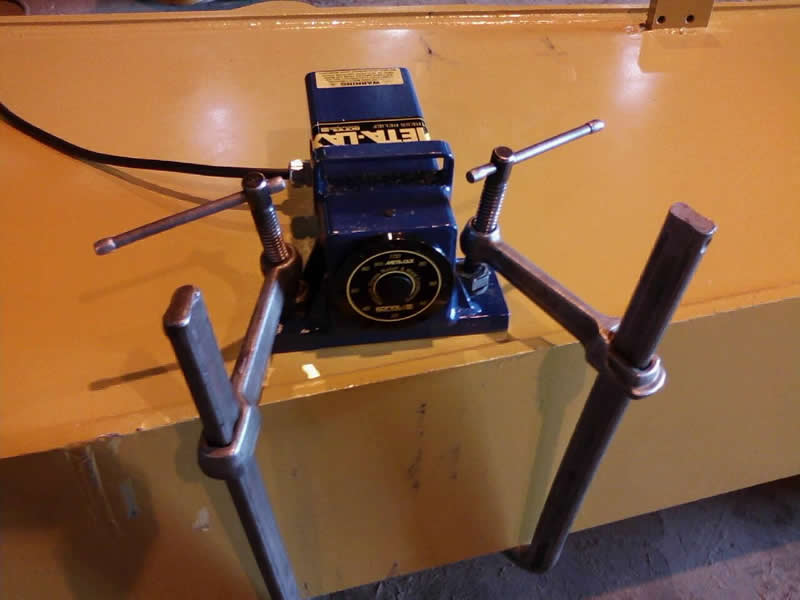

Stress relief being done on a completed cut and stretch stick CAT 349
One of three units done for a CAT dealer, customer of ours

(Click on pictures to enlarge)


08102015   Komatsu PC400 boom and stick conversion  to fit on a Hitachi 400/450 - P.O.R.      (Click on pictures to enlarge)

      In progress pictures




      After pictures



* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

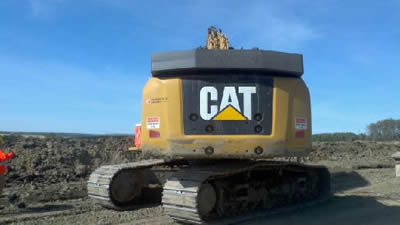

4,000 LBS ADDITIONAL COUNTERWEIGHT ADDED
TO 4 FOOT ADDITION TO BOTH A CAT 349 BOOM AND STICK





* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

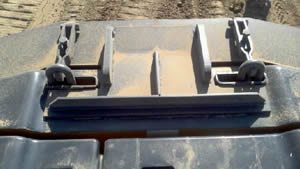

Counterweight for Komatsu PC 1250 with Bracket and Adjustable Counterweight
(Click on pictures to enlarge)




* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

Repair Process

11102015   Komatsu PC1100-1250   material handler stick - P.O.R.



04232014   CAT 325  - P.O.R.
      Sandblasting




      Priming process

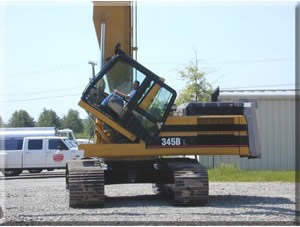

04102013   CAT 345  customer's broken material handler stick before and after the repair - P.O.R.
      Before repair


      In progress

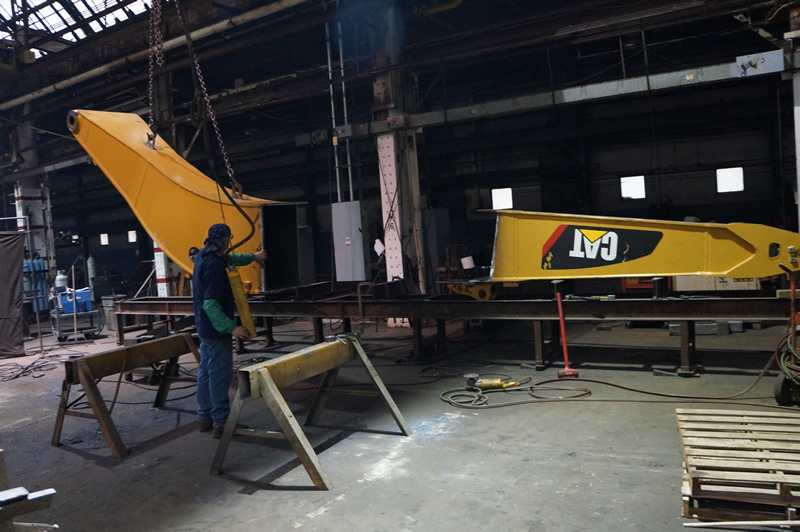

04262013   CAT 349  cut and stretch new boom 4 foot and new stick 4 foot on CAT 349 - P.O.R.
  (Click on pictures to enlarge)

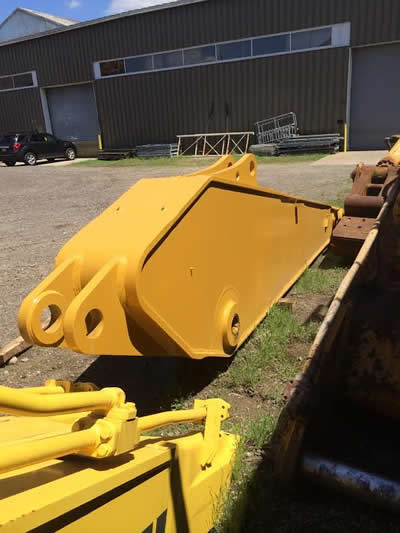

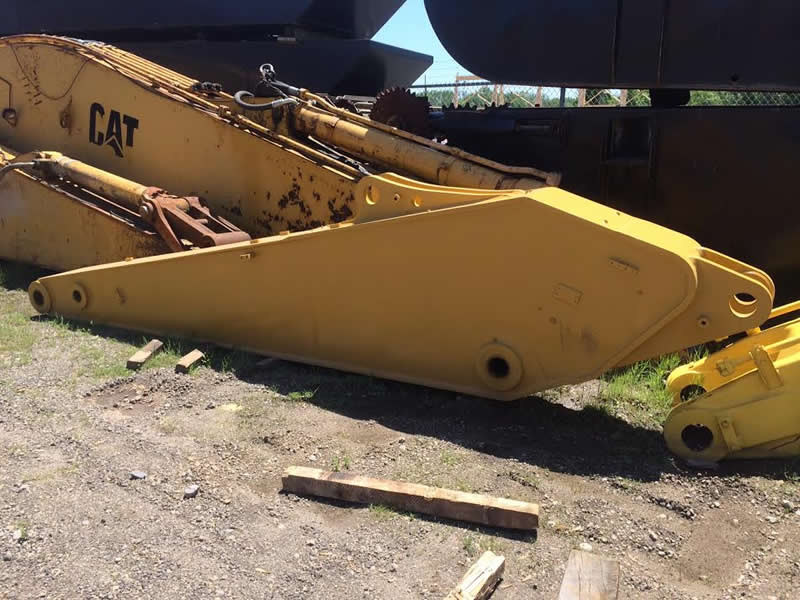

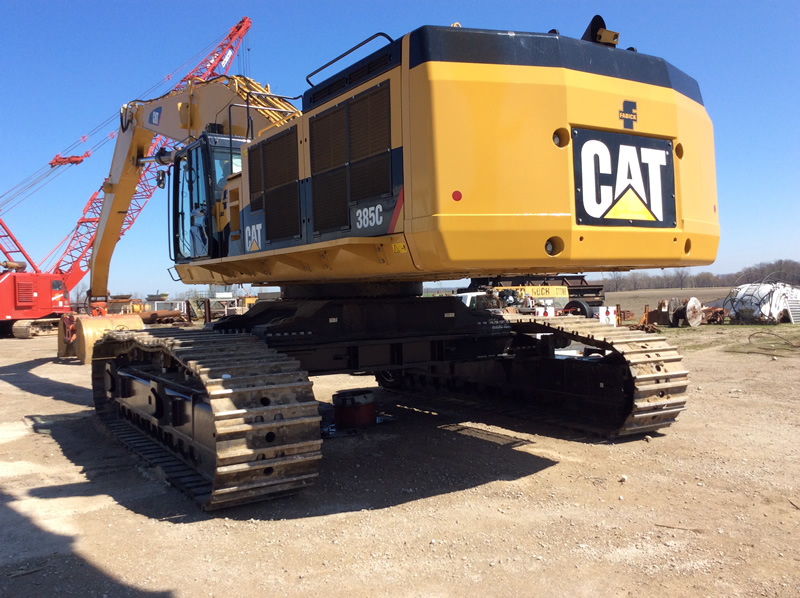

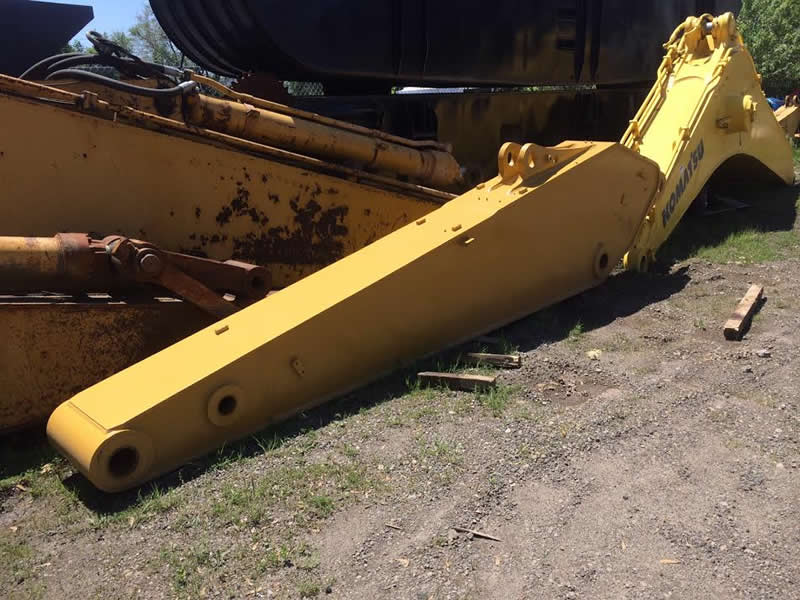

06152015   CAT 385  customize stick to 26 - 28 feet - P.O.R.      (Click on pictures to enlarge)
      Before picture


      After pictures

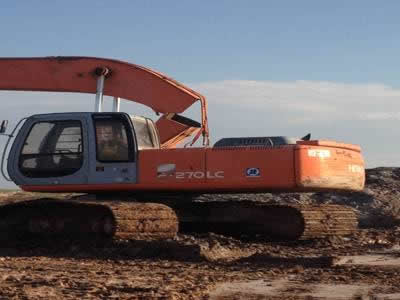

09202012   Hitachi 270LC  - P.O.R.
   NOT OUR UNIT, PICTURES BEFORE REPAIR      (Click on pictures to enlarge)
      Before repair -- see boom broken above cab


      Boom in progress


      After repair



05022013   Genesis GMS700  sample of rebuilt shear before and after shear rebuild process, before picture (left) and after pictures (center and right) - P.O.R.


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *



Return to Top





Photo Gallery

(Click on photos to enlarge)
Note: * indicates this is the largest image of photo



1.

2.


3.

4.


5.

6. *


7. *

8. *


9.

10.


11.

12. *


13. *

14.


15.

16.


17.

18.


19.

20.


21.

22.


23.

24.


25.

26.


27.

28.


29.

30.


31.

32.


33.

34.


35.

36.


37.

38.


39.

40.


41.

42. *


43. *

44. *


45. *

46.


47. *

48.


49. *

50. *


51. *

52.


53. *

54. *


55. *

56.


57.

58.


59.

60.


61.

62.


63.

64.


65.

66.


67.

68.


69.

70.


71.



73.

74.


75.

76.


77.

78.


79.

80.


81.

82.


83.

84.


85.

86.


87.

88.


89.

90.


91.

92.


93.

94.


95.



97.

98.


99.

100.


101.

102.


103.

104.


105.

106.



107.

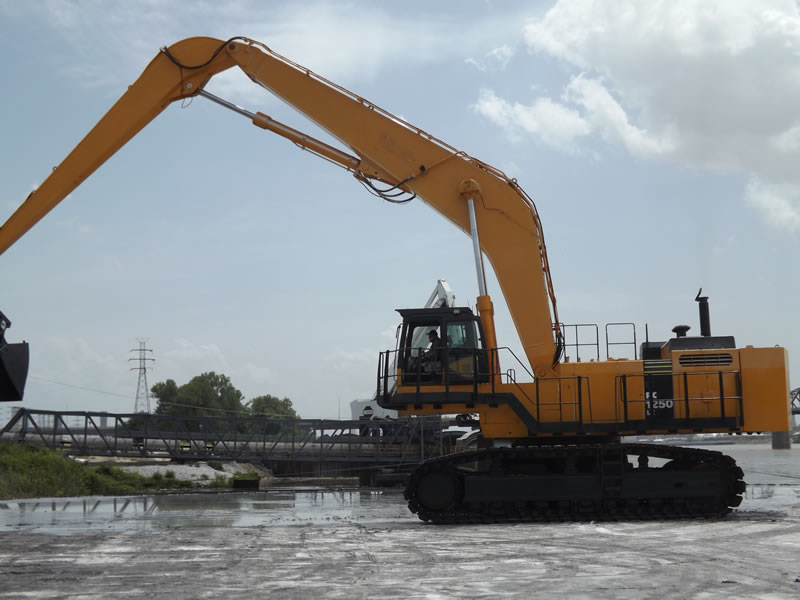

90 Foot Long Reach for PC1250

108.

100 Foot Long Reach for PC1600

109.



111.

112.


113.

114.


115.

116.


117.

118.

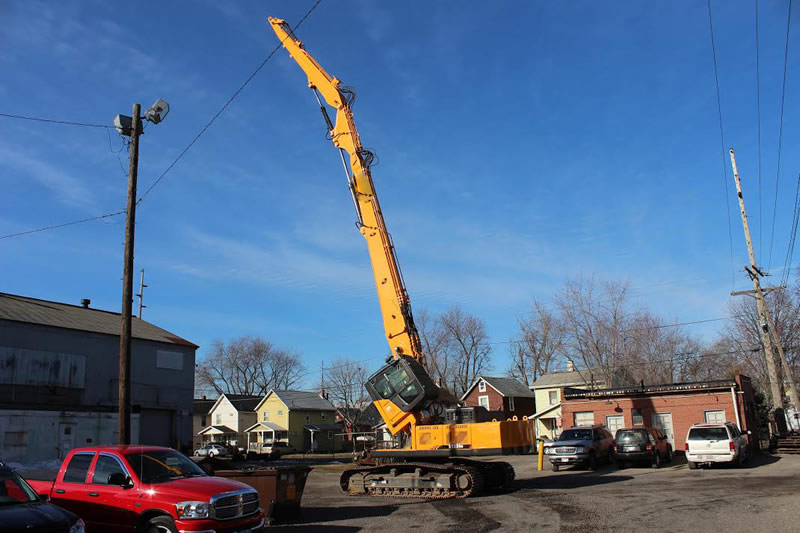

CAT 374 with Demo Stick
Holding CAT MB30 Shear Weighing 14,000 lbs
Used 10,000 lbs Extra Counterweight


119.

120.


121.

122.


123.

124.

CAT 385 stick before picture

125.
CAT 385 stick after picture

126.


127.

128.


129.

130.


131.

132.


133.

134.


135.

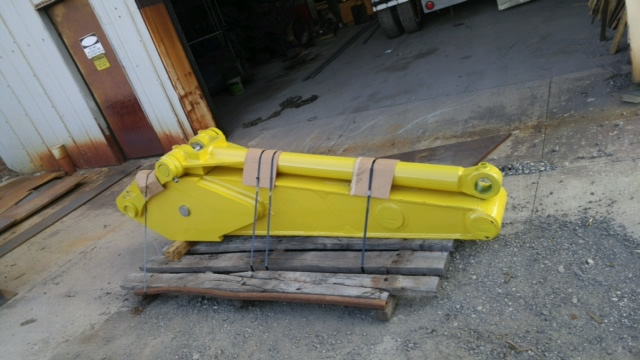

PC228 slip on stick 6 footer

137.
PC228 slip on stick 6 footer

138.

PC228 slip on stick 6 footer

139.
PC1100 long reach boom

140.

Long reach PC1100

141.

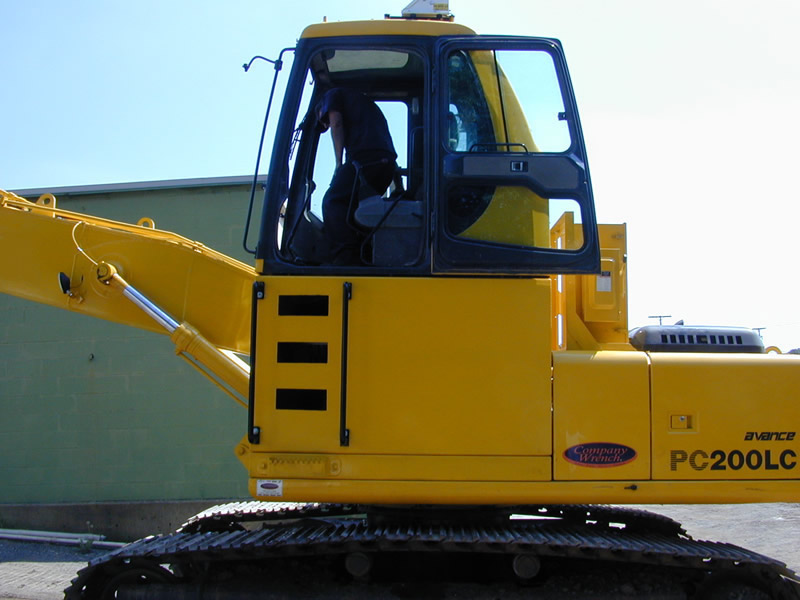

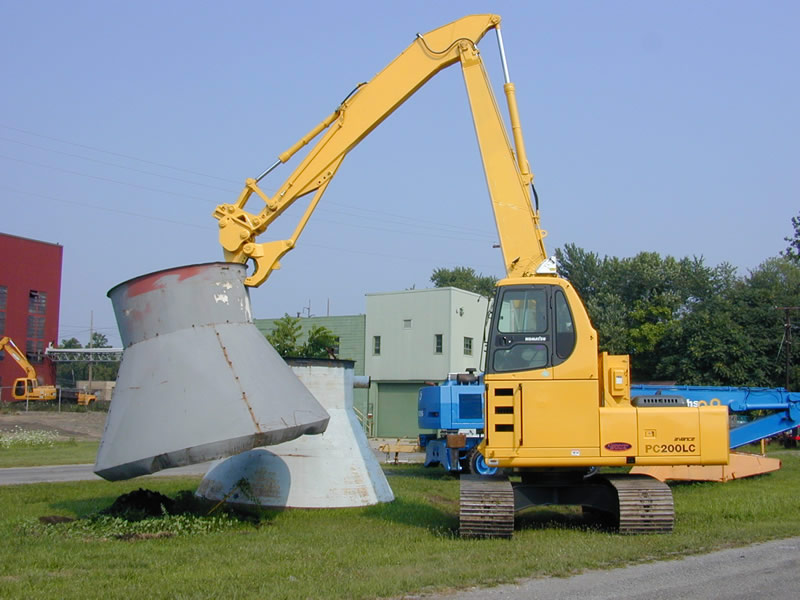

PC200

142.

PC1250

143.
EX1200

144.

26 foot drop nose material handler style stick

145.

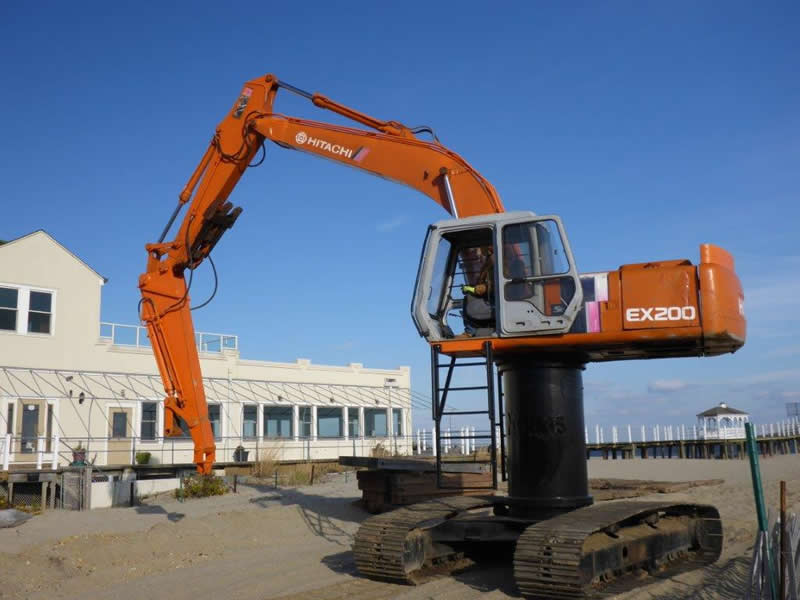

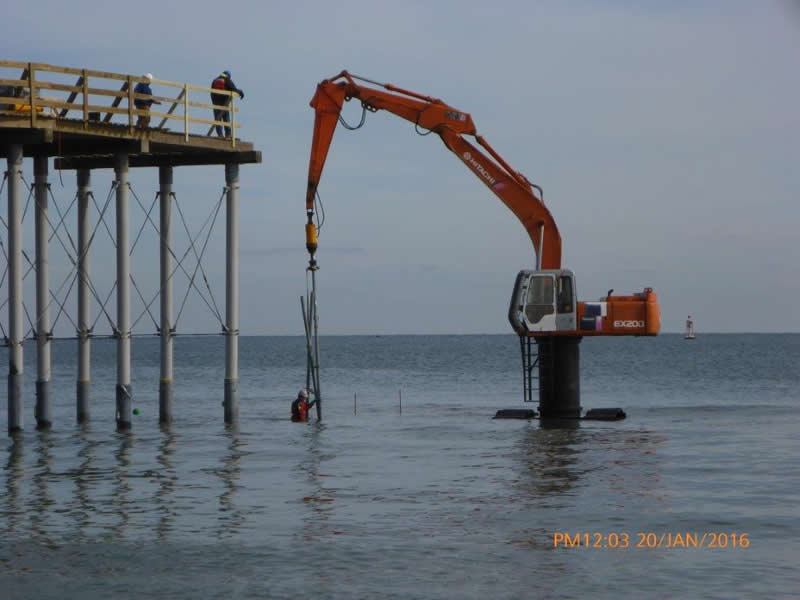

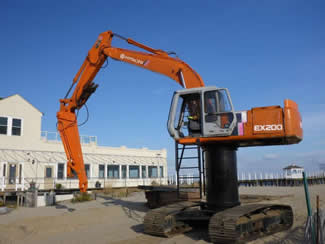

For more information on photos 147 to 151, go to Beach Prisms


147.

148.


149.

150.


151.

photos 153 to 156  -  JS conversion,  20 foot extension for CAT 385


153.

154.


155.

156.

75ft long reach package for ZX670

157.
800 size excavator with a stick extension

158.

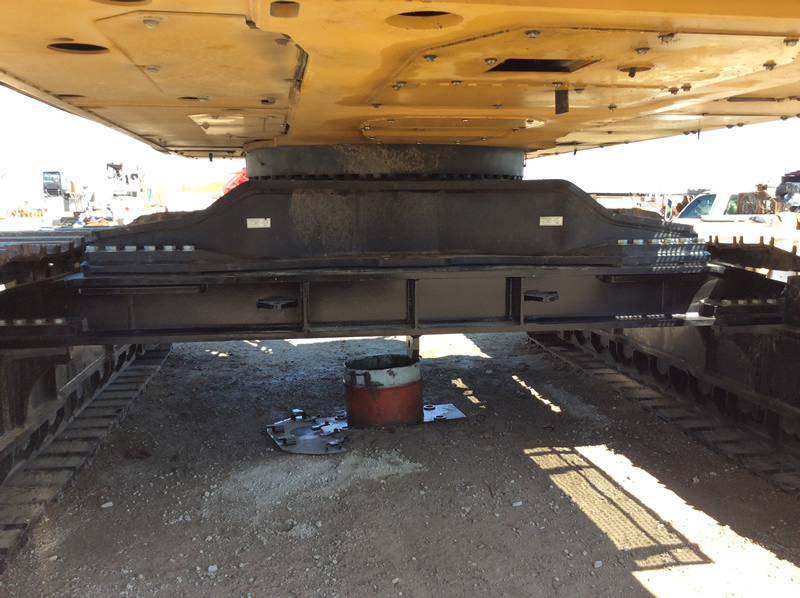

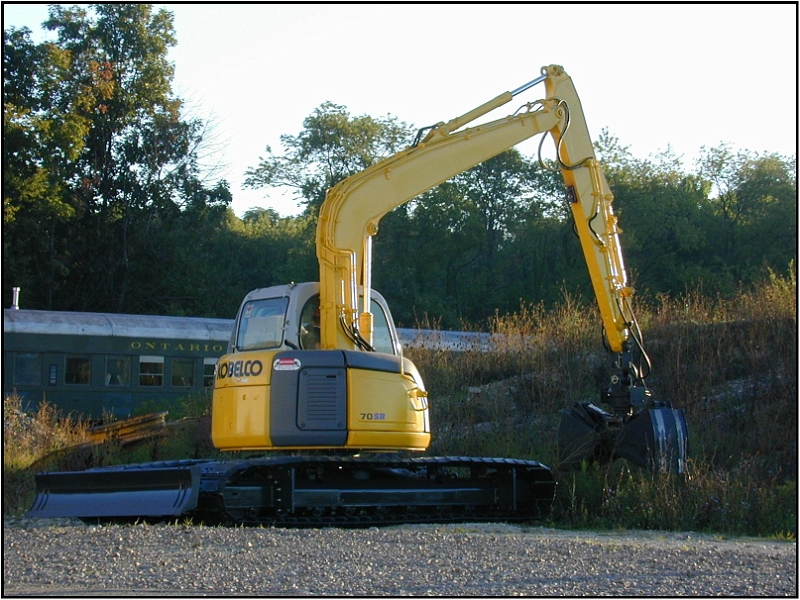

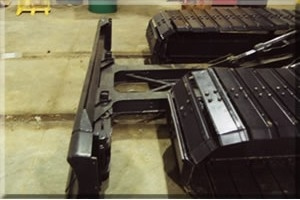

photos 159 to 162  -  Super Low Ground Pressure Conversions...available upon request


159.

160.


161.

162.

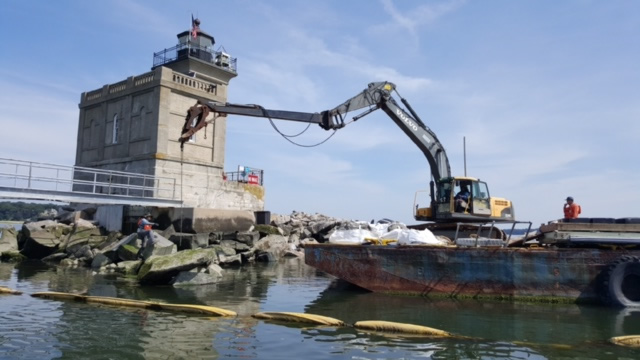

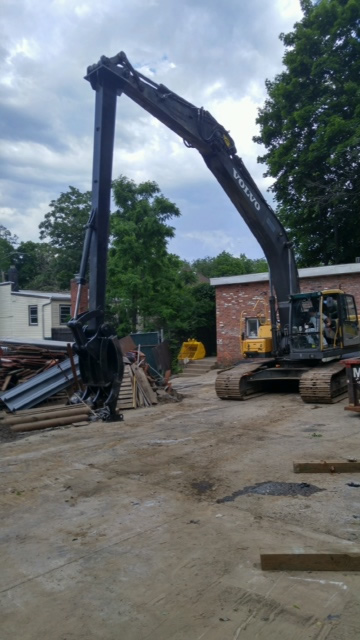

Stick Extension with Grapple

163.

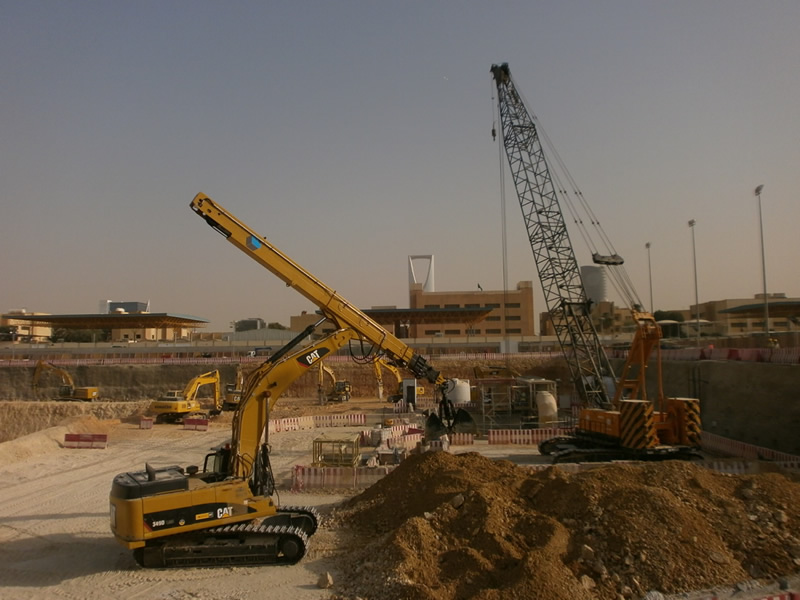

Machine with Teledipper and Telescopic Dipper Working Range (165 and 166)


165.

166.

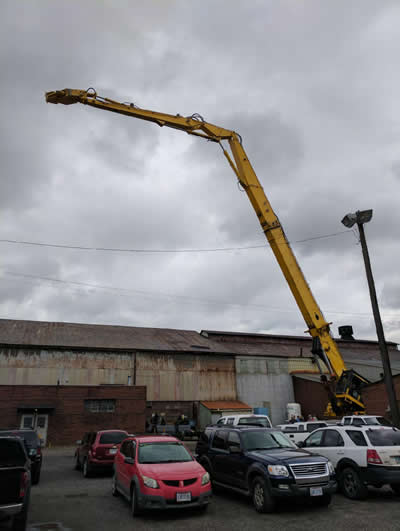

PC800 120 foot High Reach

167.
