Beach Prisms




beach prisms
(Click on picture to enlarge)

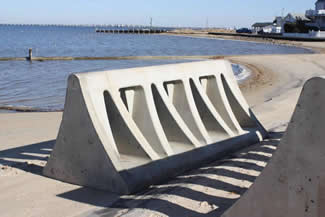

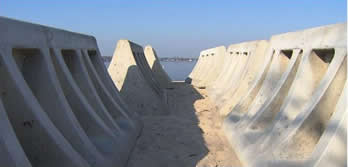

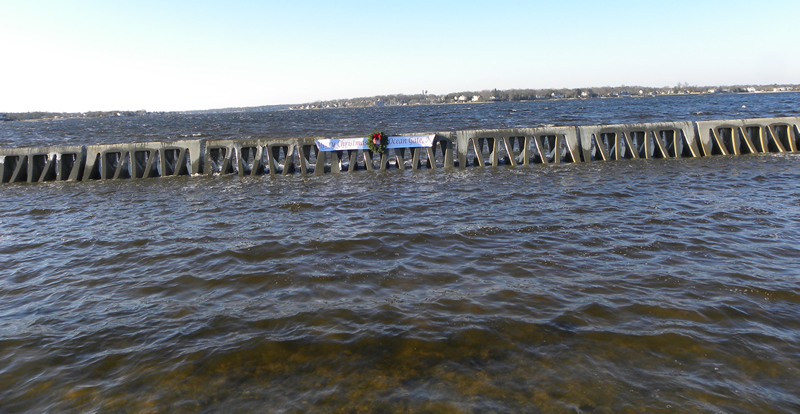

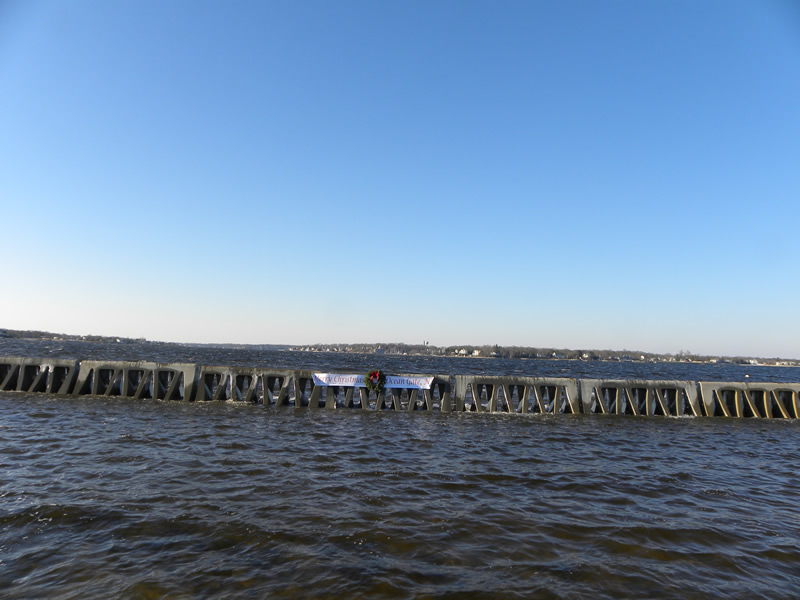

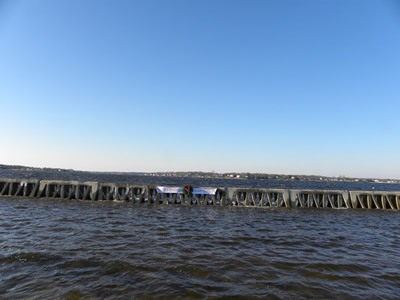

Beach Prisms were created in the late 80's as a means to protect shorelines from beach erosion. This new beach erosion solution consists of precast concrete prisms (creating a breakwater), measuring 3 to 4 feet in height and 10 feet in length. Its triangular slotted design creates stability and durability, that has been proven to withstand hurricanes (Hurricane Isabel specifically). Beach Prisms is permitted by state and federal agencies, including the Department of Natural Resources and the Army Corps of Engineers. Beach Prisms have been installed on over 20 sites around the Chesapeake Bay and the Potomac River.

After 18 years of product testing and improvement of the design, Beach Prisms were reintroduced to the market for sale and installation. The improved product redesign functions in the same manner as the original. In order to make it more affordable for the customer, the product was changed to be produced in one piece instead of multiple pieces, which were then bolted together.

Beach Prisms are a natural way of beach restoration. The slotted design allows water to flow through, while dissipating the energy of the waves, thus reducing the impact they have on the shoreline.

beach prisms

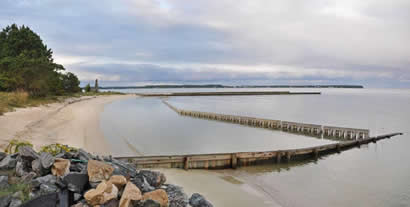

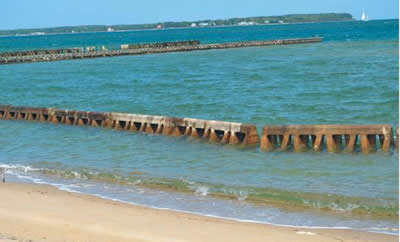

Beach Prisms have been proven in some cases to build back lost shoreline, by accumulating sand in front of and behind the Prisms, acting as a perfect beach erosion solution. Results will vary based on many factors unique to each site, including tides, prevailing winds and availability of sand. Beach Prisms are recommended for river and bay front properties only.

"... Beach Prisms (were) installed at five separate sites ... ranging from 150 to 400 feet in length."
"... Beach Prisms helped to preserve as much as 20 to 40 feet of vital shoreline on our property."



Marsh Buggies and Beach Prisms

beach prisms    beach prisms

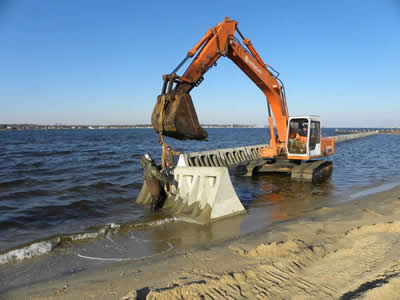

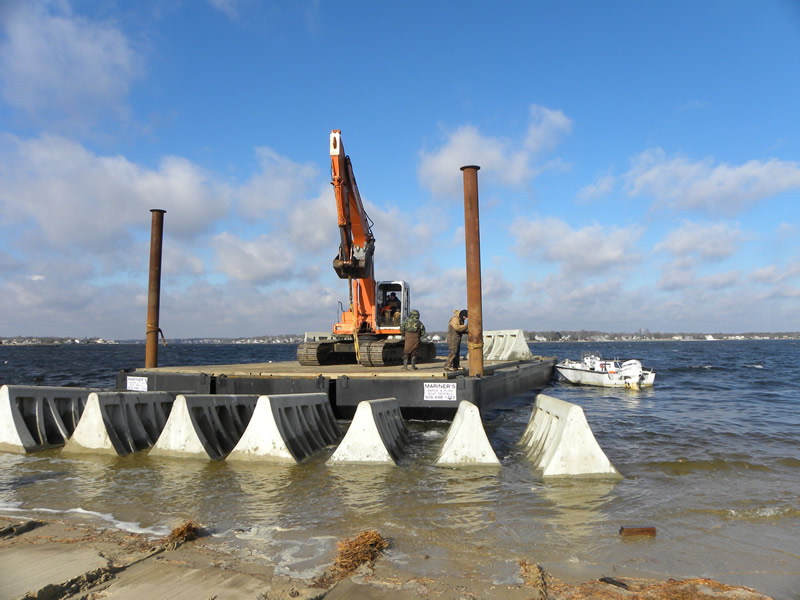

These pictures illustrate the importance of using marsh buggies when installing beach prisms.
It would eliminate having to use a floating dock.

See more about marsh buggies and beach prisms here.

Coastal Erosion protection that works...naturally!

coastal erosion
Installed 3/8/2010
coastal erosion
4/12/2010

coastal erosion
5/10/2010
coastal erosion
6/12/2010


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


Ocean Gate, NJ to protect its shoreline with beach prisms
beach prisms    beach prisms

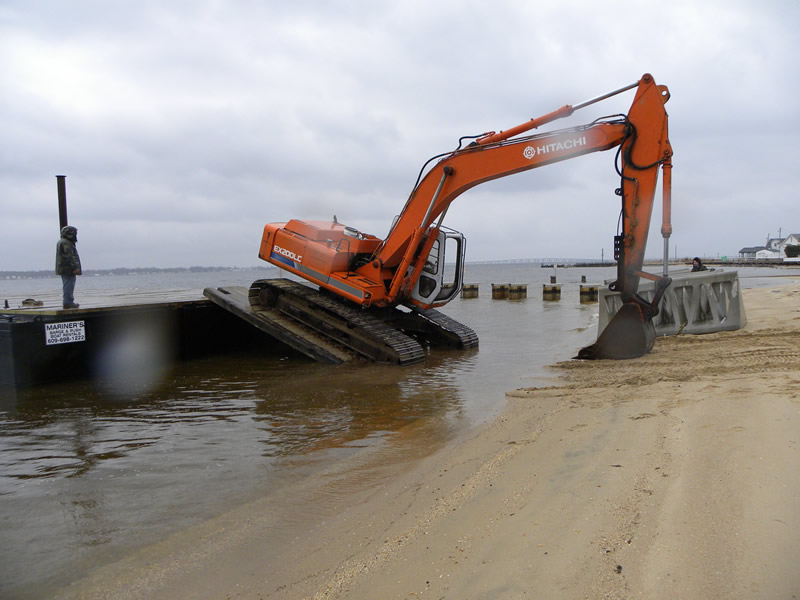

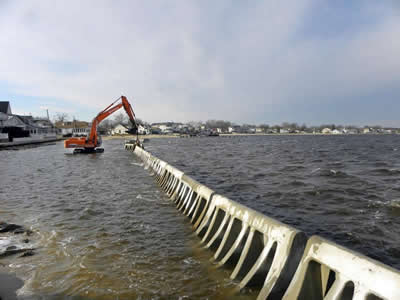

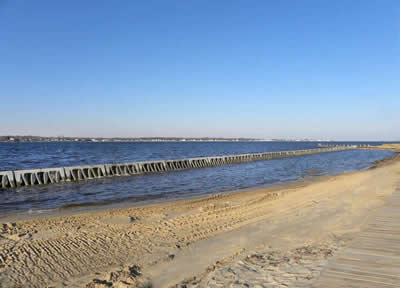

Concrete structures called "beach prisms" are being installed along the shore of one New Jersey beach to help save the beach from further erosion during storms. A Jersey Shore community hit hard by Superstorm Sandy is using a new method to protect their beach from future violent storms.

Ocean Gate is the first New Jersey town to use beach prisms. The heavy pieces of concrete, which are shaped similarly to highway barriers, act as giant brakes for waves.

jersey shore beach prisms

marsh buggy beach prism

marsh buggy beach prism

jersey shore beach prisms

jersey shore beach prisms

marsh buggy

marsh buggy beach prism

marsh buggy beach prism

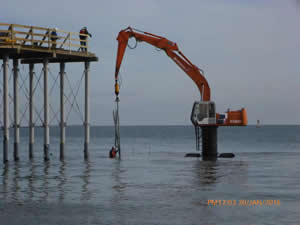

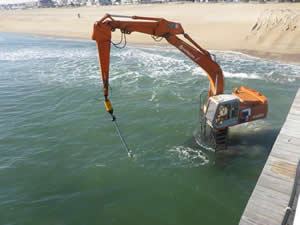

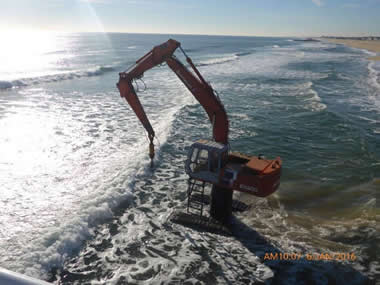

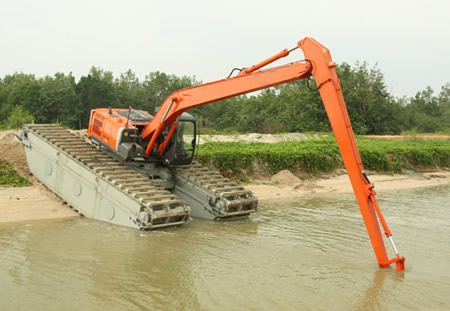

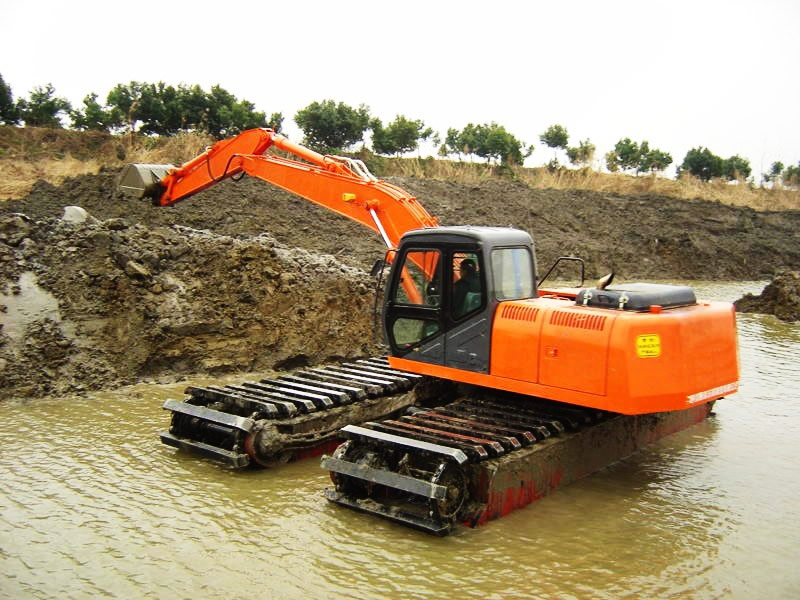

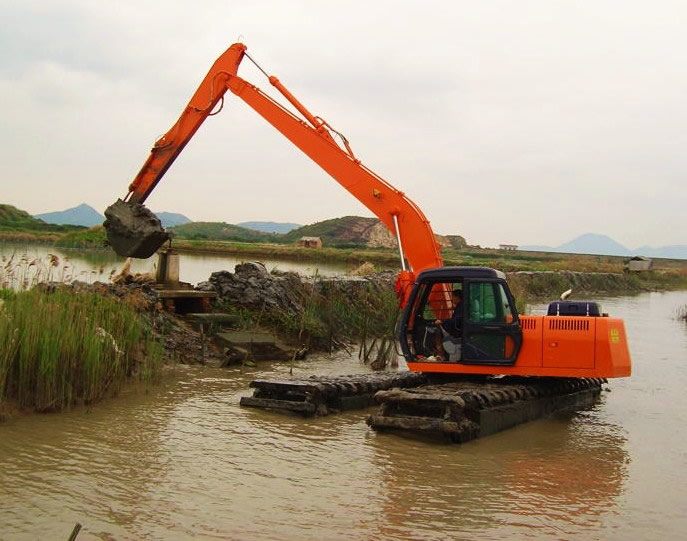

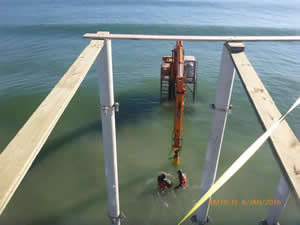

Marsh buggies are the prime tool to wade into the water where excavators cannot go.
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


jersey shore beach prisms

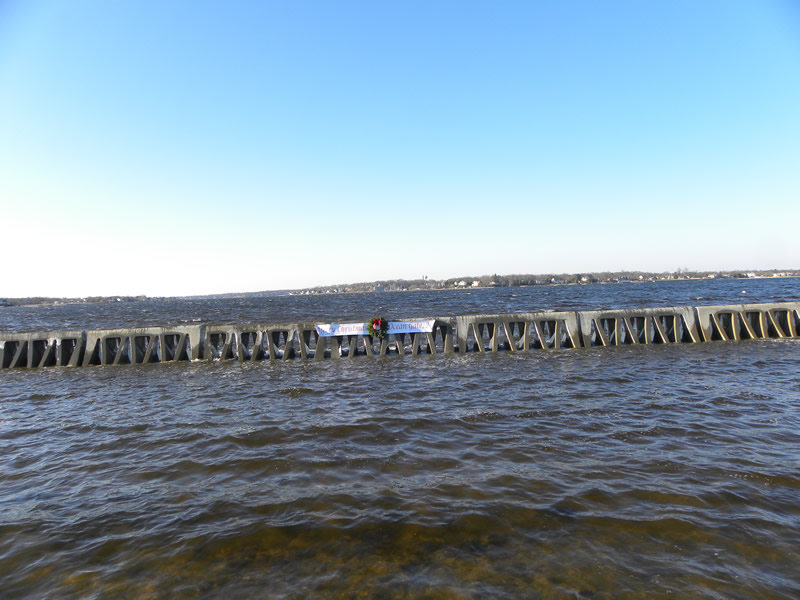

Although they look like another retention wall, the Beach Prisms Shoreline Protection system allows water to pass through the blocks, dissipating wave energy before the wave reaches the beach.


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


beach prisms   beach prisms

beach prisms

beach prisms   beach prisms

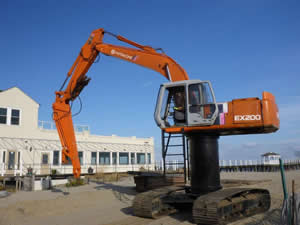

Specialty equipment and custom fabrication available for your unique job application.

This customer's machine is available for rent or purchase. Call for details.


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


Ingram Bay, VA beach prism photos...
beach prisms    beach prisms
beach prisms    beach prisms
beach prisms

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


Beach prism installation at Bennett's Point Queenstown, MD
beach prism installation
6/5/1986 AM
beach prism installation
6/5/1986 PM

beach prism installation
6/12/1986
beach prism installation
6/17/1986


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *



beach prism
(Click on picture to enlarge)

beach prism
(Click on picture to enlarge)
