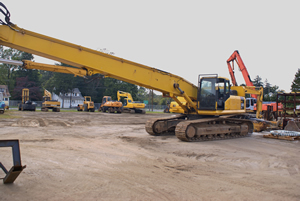

PC1250 Demolition Boom
(click on chart to enlarge)
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |

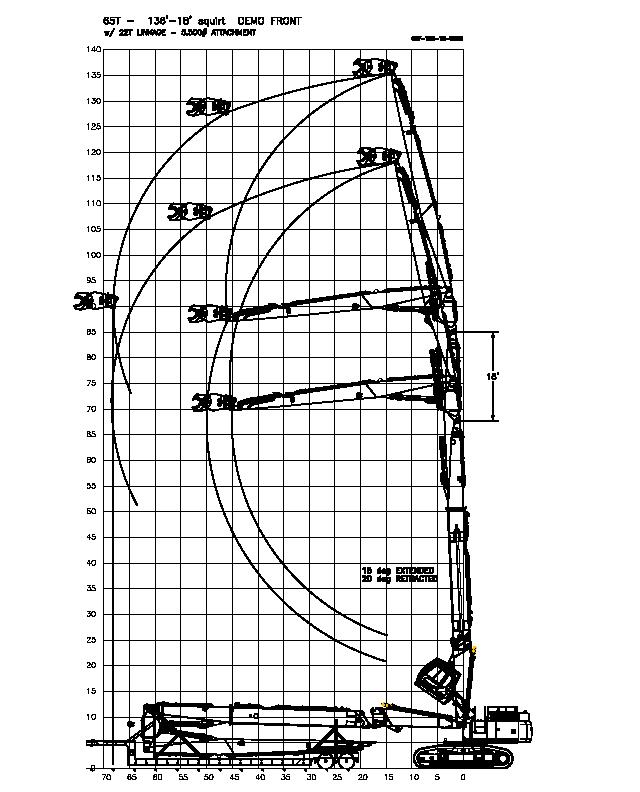

60 FOOTER CAN HANDLE 5500 LB TOOL - EXTRA CWT NEEDED
Black Unit is HITACHI/JOHN DEERE 300/350 Yellow Unit is CAT 330/336
|
| |
 |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |

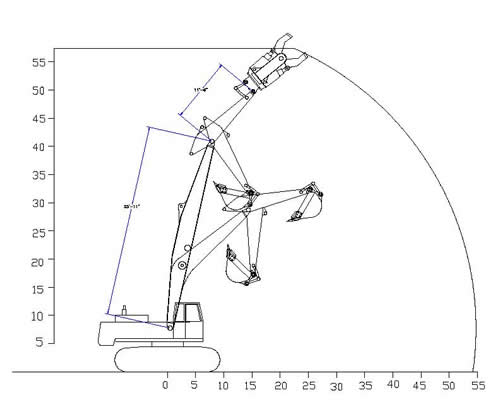

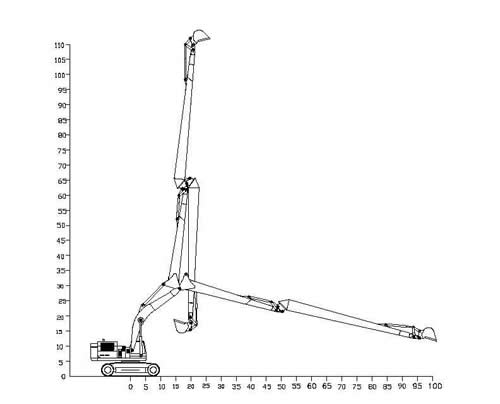

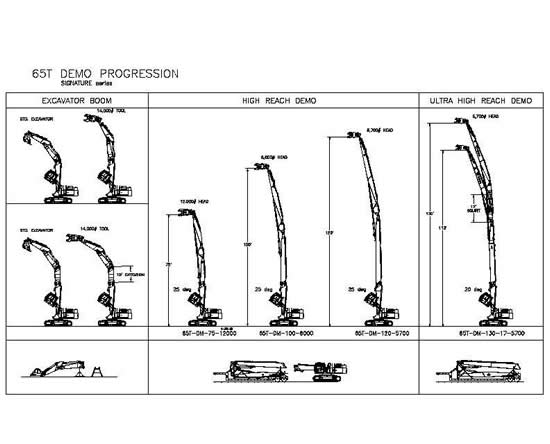

POTENTIAL HIGH REACH AND LONG REACH FOR 85-TON EXCAVATOR
(Click on drawing to enlarge)
JD800 80-ton machine correction: this requires a 120 ton machine or larger
|
| |
| |

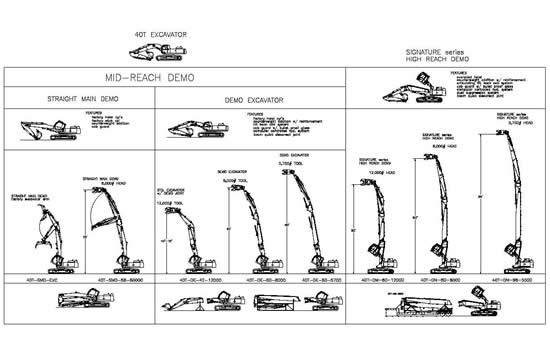

(Click on chart to enlarge)
|
| |
| |
(Click on chart to enlarge)

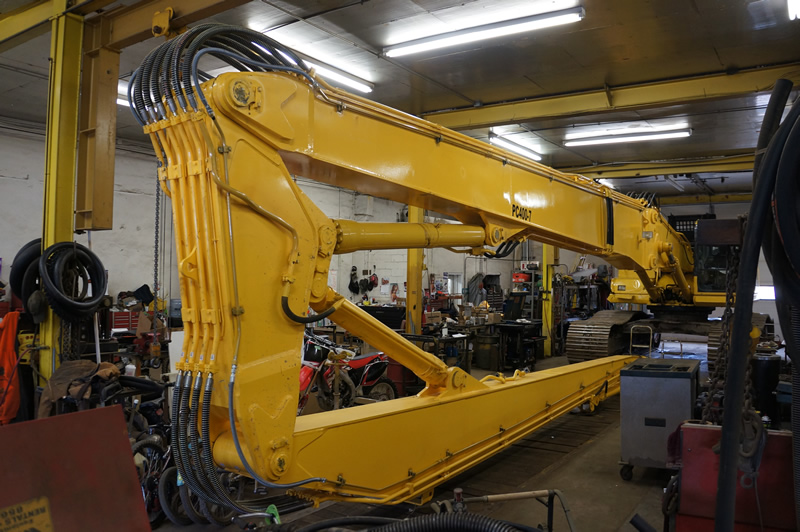

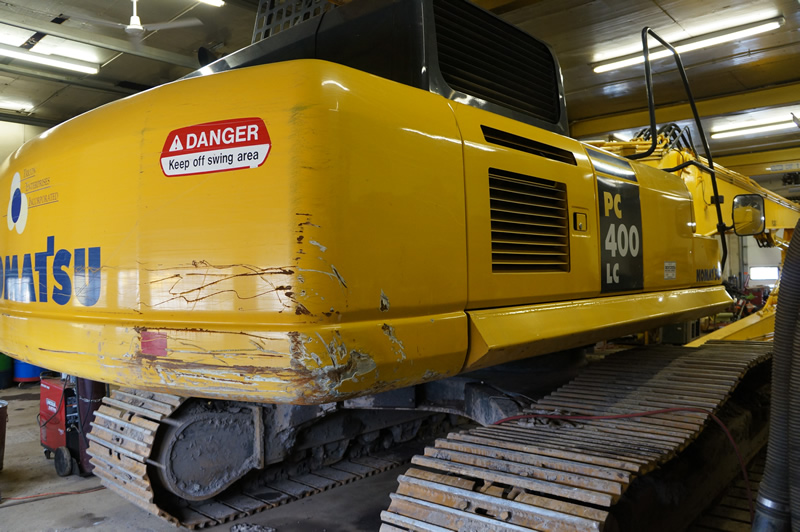

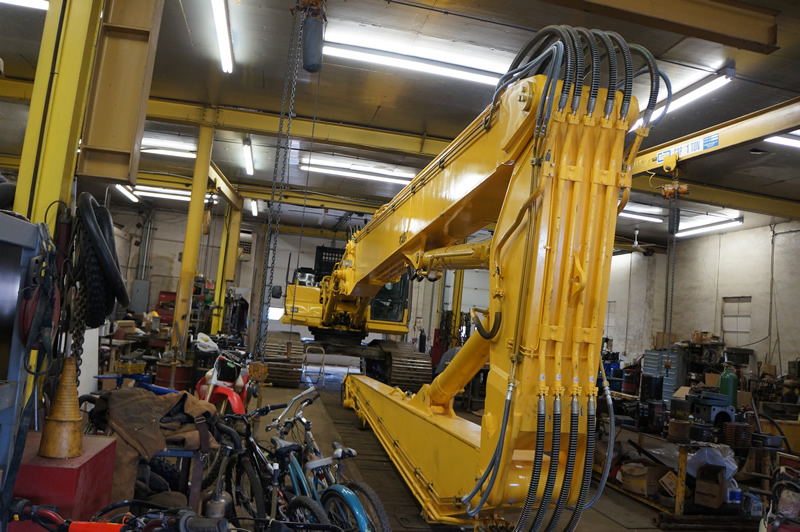

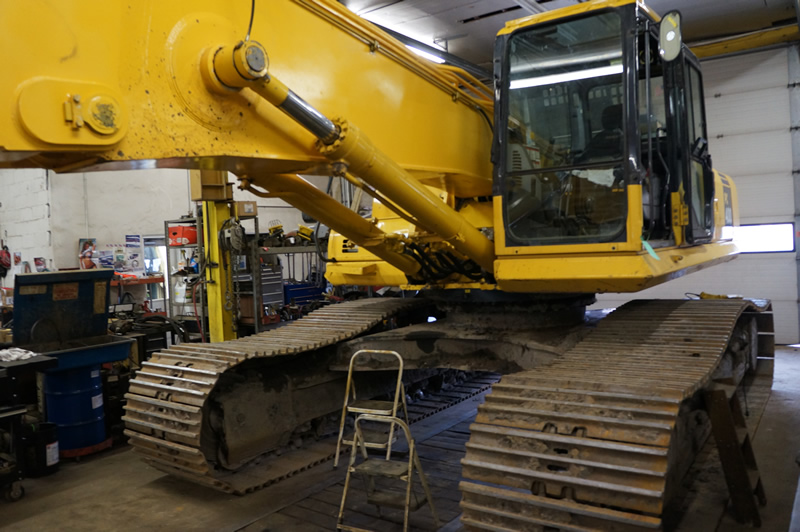

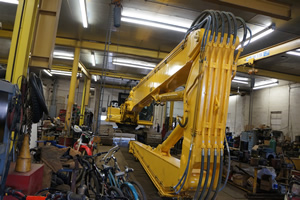

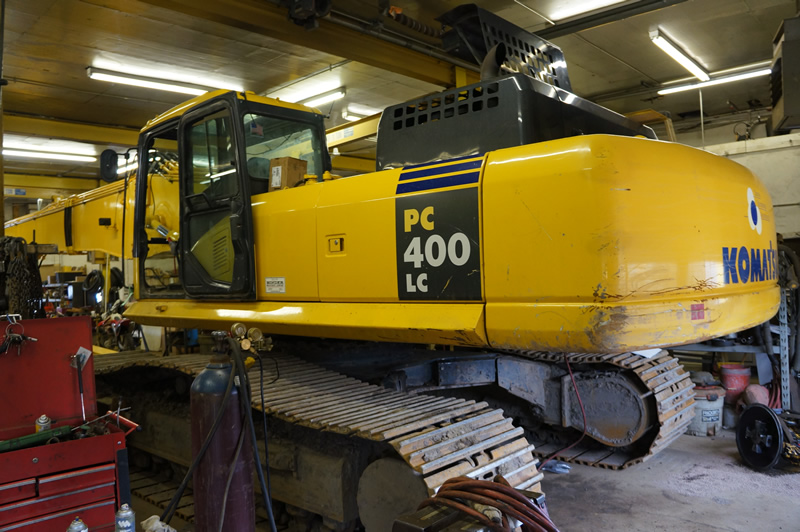

PC400 machine
|
| |

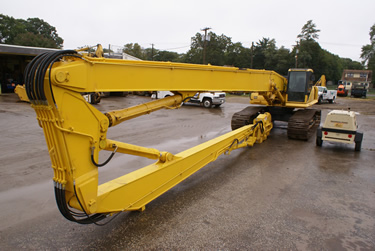

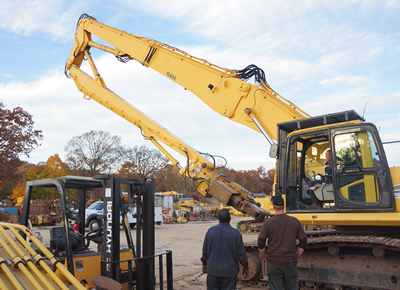

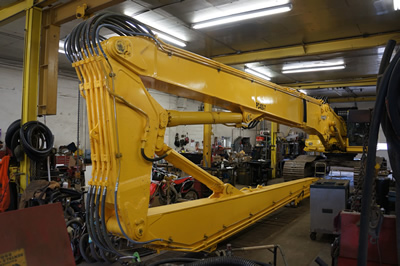

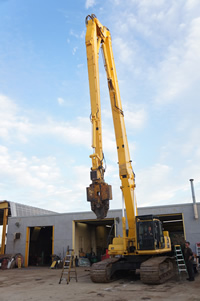

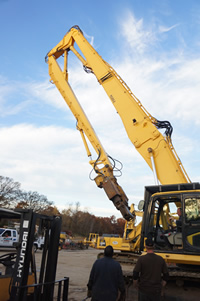

85' 3-piece ultra high demolition front end on PC400 LC-7
|
| |
 |
 |
| |
|
| |
|
| |
 |
| |
|
| |
|
| |
 |
| |
| |
(Click on the following 5 pictures to enlarge)
|
| |
|
| |
|
| |
|

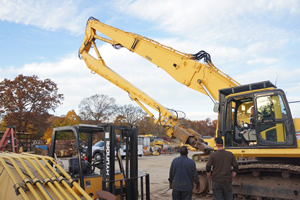

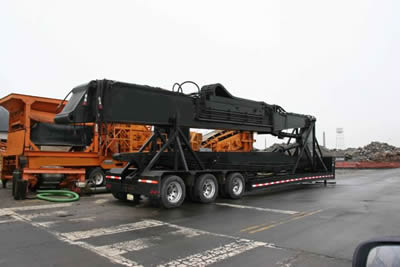

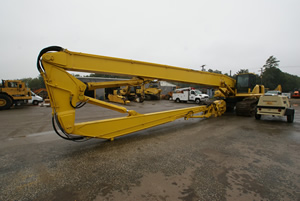

We have complete front ends and machines in stock.
Please see our Used/Available section.
|
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |

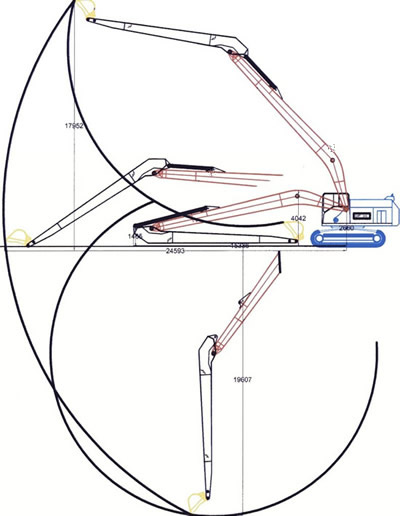

Another Way to Get Higher Reach
|
|
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |

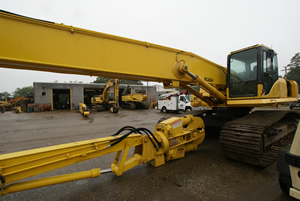

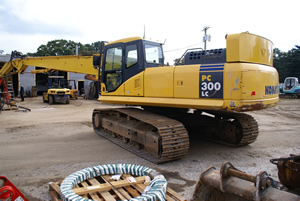

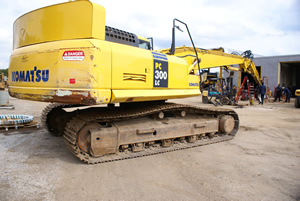

Sample of PC300 high reach
|
|
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |

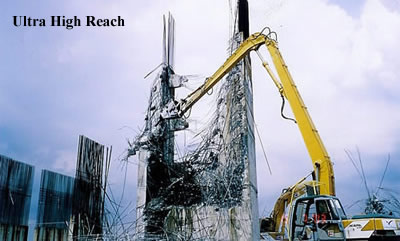

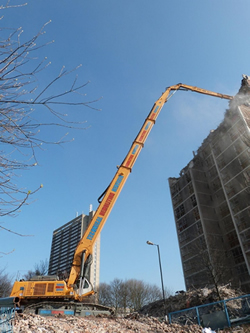

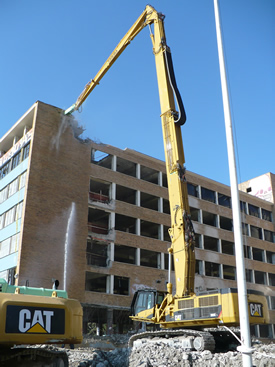

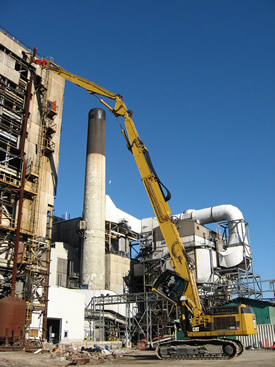

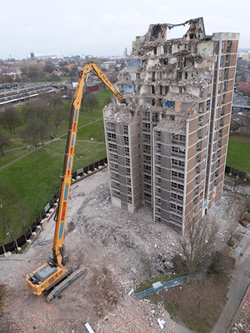

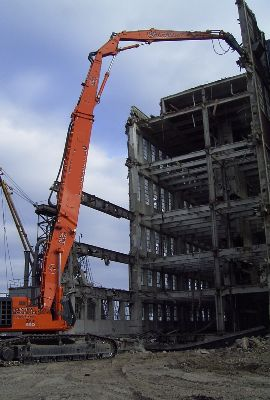

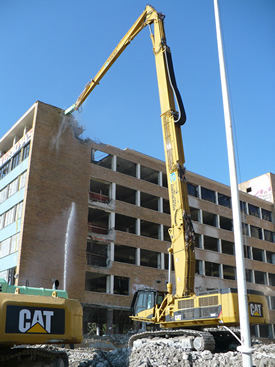

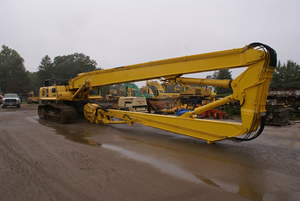

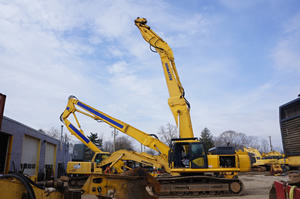

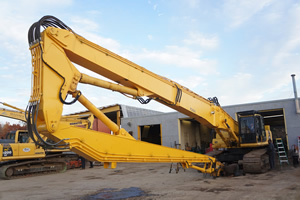

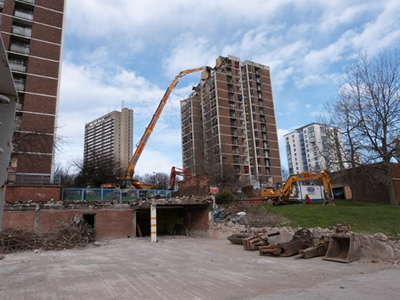

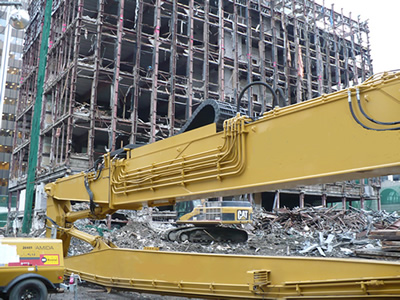

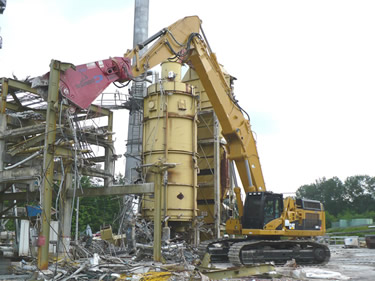

Other ultra highs in action
|
|
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |

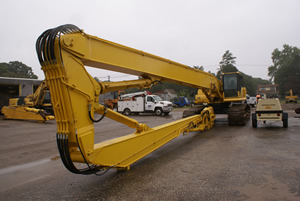

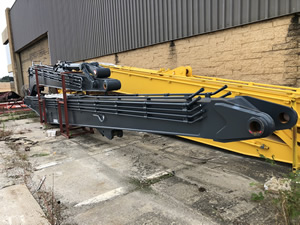

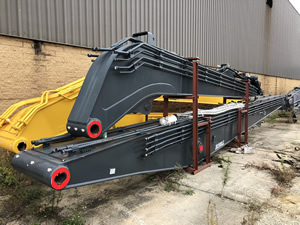

Modular design boom for high reach fronts
|
|
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
Demolition front ends that reach 20' to 280'
|
|
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
Sample of machine weighing 220 tons with a 67 meter (220 ft) reach
|
| |
|
| |
 |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
3-piece Demolition boom for under 10 ton excavator, 35 ' reach
|
 |
| |
 |
Ideal for demolition work for low rise building and tight spacing environment
|
|
| |
| |
With the greater emphasis on work environment safety and stricter regulation in the industry, high reach demolition boom is
fast becoming the choice attachment for demolishing old buildings. Replacing the traditional and accident-prone practice
where excavators were lifted onto the building to carry out the high risk tasks. The demolition boom has changed the entire
concept in tearing down buildings, not only improving the overall safety standard, but has also extended the working radius and
reach of the attachment where standard machine and traditional practice fall short in this respect.
An ultra high reach demolition boom is a purpose-built attachment to elevate demolition tool
in tearing down multi-story buildings. The beauty of the demolition boom is in its ease of positioning and flexibility in
maneuvering of tool in carrying out primary and secondary demolition jobs safely. Demolition attachments are engineered for
performance, reliability and low total cost of ownership in mind. Only quality steel is used in fabrication. Demolition front
attachment for greater than 40 metric ton (88,000 lb) excavator will have a detachable and modular main boom with a quick
coupling joint for efficient mounting and dismantling, as well as ease of ground handling and transportation.
We design and customize demolition solutions for every makes and models of hydraulic excavator, starting from 10 metric ton
(22,000 lb) mini excavator and upward. Depending on your excavator size, the demolition boom can easily handle work tool ranging
from 0.5 ton (1,100 lb) to 4 ton (8,800 lb) of weight.
|
 |
| |
* The above specifications are for reference only, actual working range may vary from machine models.
** For the benefit of continuous product improvement, specifications are subject to change without prior notice.
|
| |
| |
Demolition Boom for Hyundai R450
|
|
| |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |

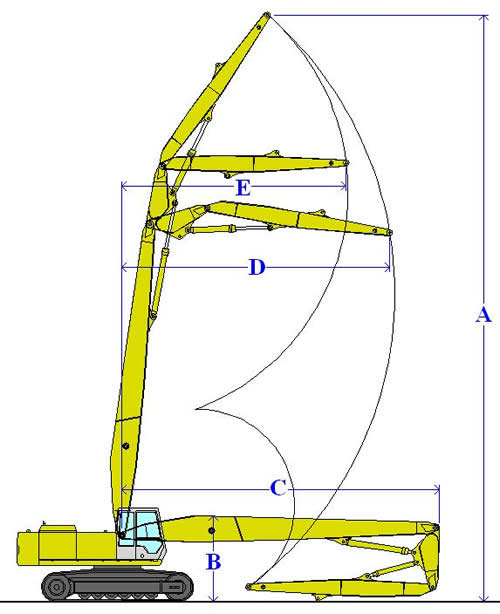

Demolition Boom Working Range
|
|
|
Excavator Operating Weight |
A |
B |
C |
D |
E |
Maximum Tool Weight |
|
m |
ft |
m |
ft |
m |
ft |
m |
ft |
m |
ft |
ton |
lb |
|
12 - 15 ton (26,400 - 33,000
lb) |
13.5 |
44'2" |
2.0 |
6'7" |
8.0 |
26'3" |
6.5 |
21'4" |
5.3 |
17'5" |
0.8 |
1,760 |
|
16 - 18 ton (35,200 - 39,600
lb) |
15.0 |
49'2" |
2.3 |
7'7" |
8.5 |
37'4" |
6.8 |
22'4" |
6.0 |
19'8" |
0.9 |
1,980 |
|
20 - 22 ton (44,000 - 48,400
lb) |
17.0 |
55'9" |
2.5 |
8'2" |
9.2 |
30'2" |
7.8 |
25'7" |
6.5 |
21'4" |
1.2 |
2,640 |
|
25 - 28 ton (55,000 - 61,600
lb) |
18.5 |
60'8" |
2.7 |
8'10" |
9.8 |
32'1" |
8.2 |
26'10" |
6.8 |
22'3" |
1.5 |
3,300 |
|
30 - 35 ton (66,000 - 77,000
lb) |
21.0 |
68'10" |
3.0 |
9'10" |
10.5 |
34'5" |
8.8 |
28'10" |
7.3 |
23'11" |
2.0 |
4,400 |
|
40 - 50 ton (88,000 - 110,000
lb) |
25.0 |
82'0" |
3.5 |
11'6" |
13.5 |
44'3" |
14.8 |
48'6" |
13.0 |
42'7" |
2.5 |
5,500 |
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
Special Application, 3-Piece Front End
|
| |
 |
 |
for Vibratory Sheeting and Pile Driving
|
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |

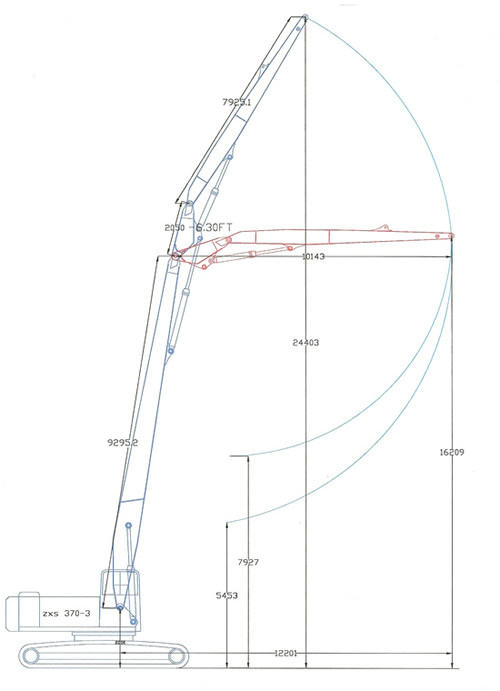

Ex370 3-Piece Demo Front, 80 ft.
|
 |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |
Working Range for EX650
|
