Long Reach Packages

Dimensions Form  |   Digging Specs  |   Counter Weight




Various long reach packages are available to meet your specific construction equipment attachment needs. The packages listed here are a sample of what we can customize for you. Call our sales office today for specifications and pricing of our long reach packages.


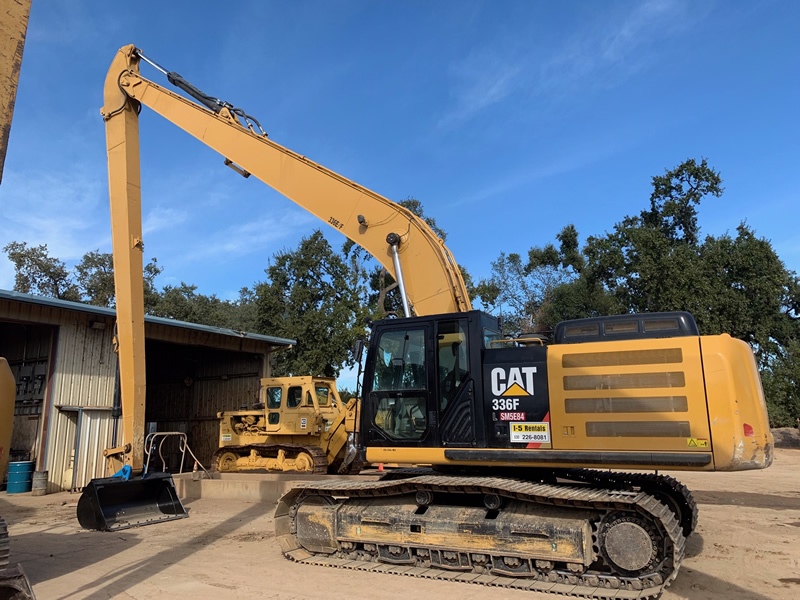

Long Reach Packages


Long Reach Packages

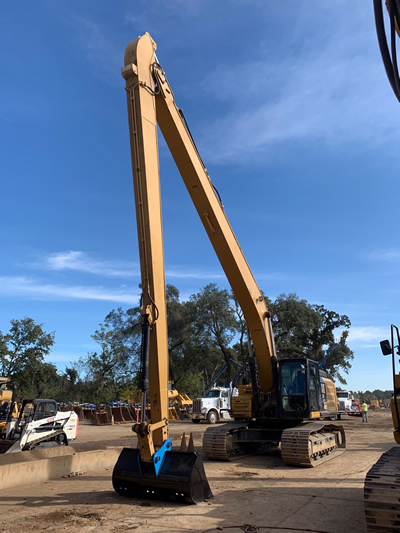

(Notice the 6-foot man standing to the right)

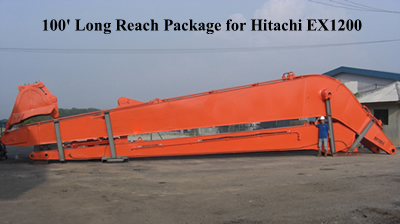

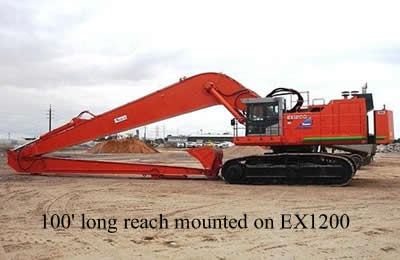

100' long reach mounted on EX1200

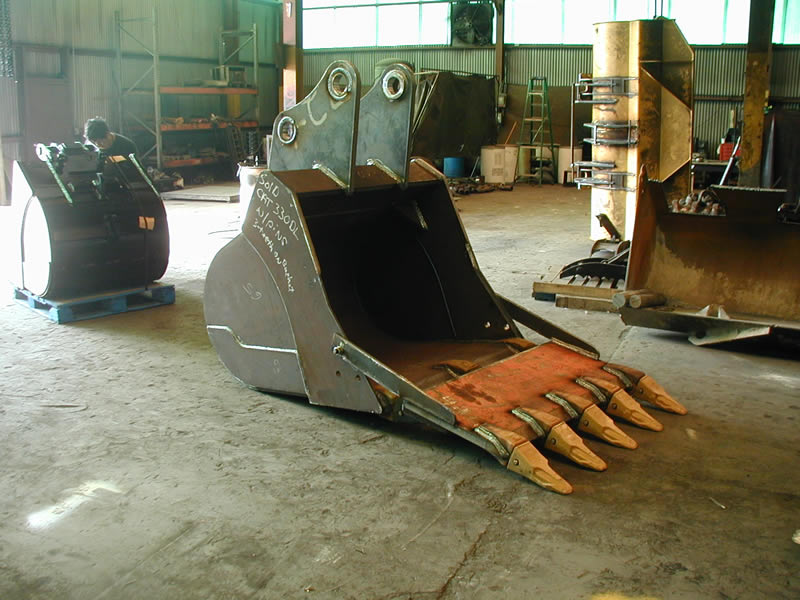

    Bucket Capacity for the 100' Long Reach is 2.3 cu yard
Return to Top

104 foot long reach front for Komatsu PC 1250.    Tip end PC 300 bucket size



* * * * * * * * * * * * * * * * * * * * * * * * *

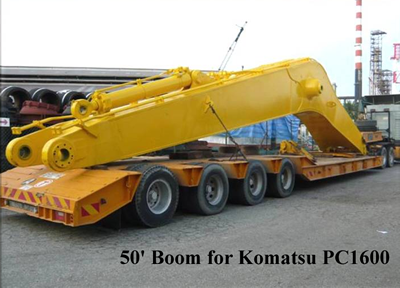

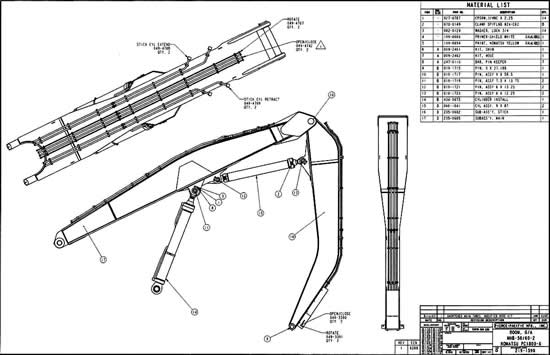

50' boom for PC1600

50' boom for PC1600

* * * * * * * * * * * * * * * * * * * * * * * * *

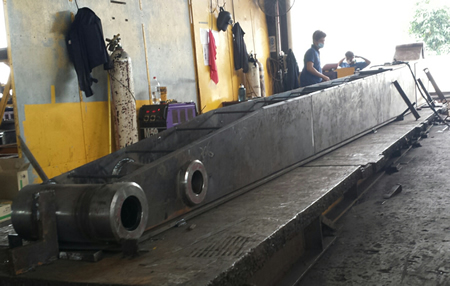

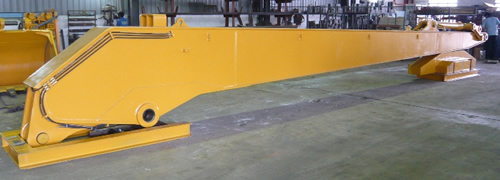

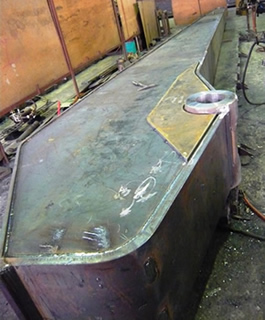

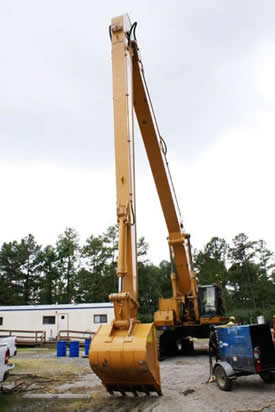

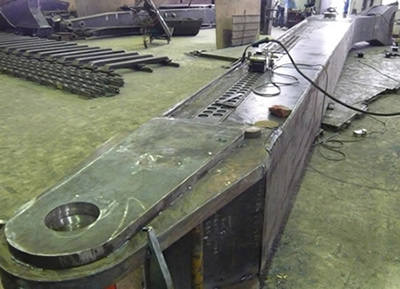

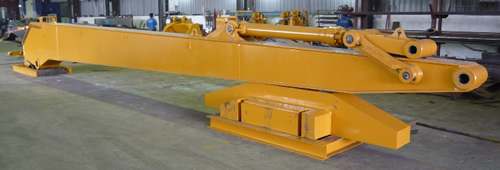

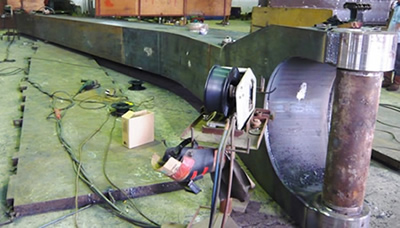

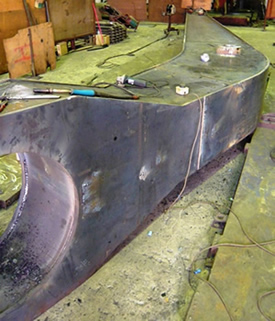

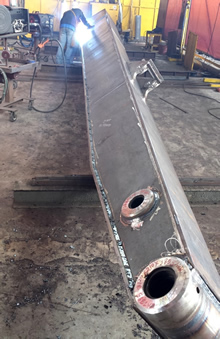

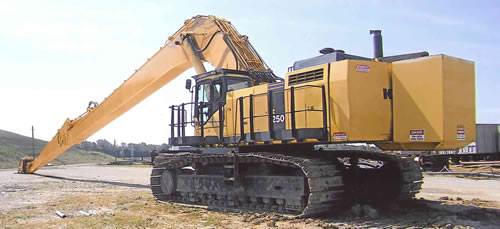

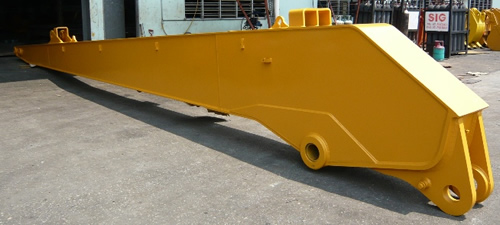

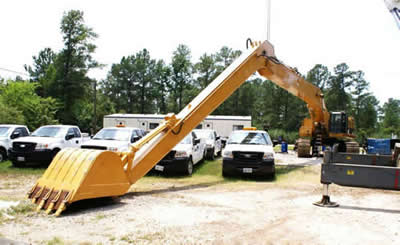

80' for a CAT 385 long reach front end being manufactured

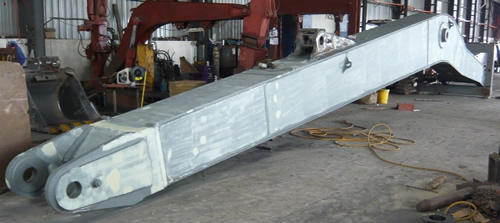

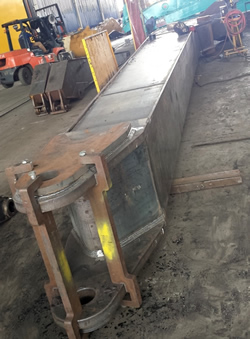

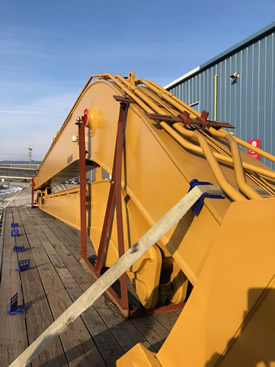

Completed long reach package for CAT 385....ready for shipping.

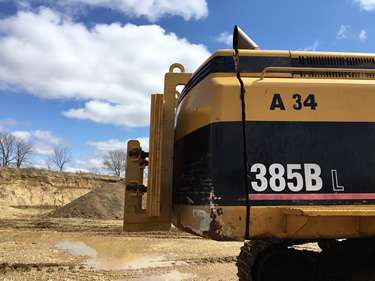

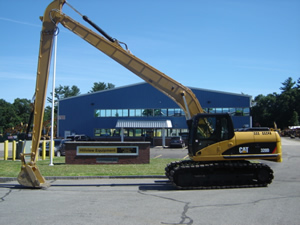

Additional 8,000 lbs of counter weight

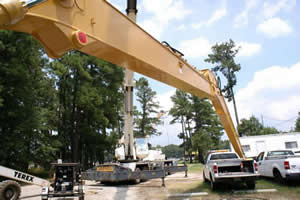

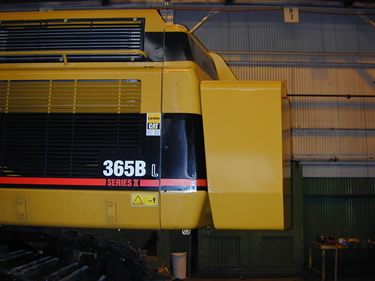

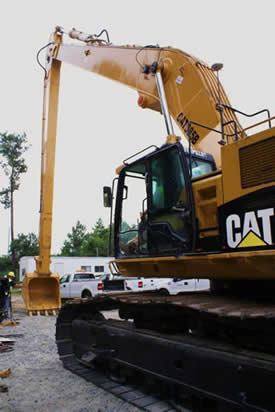

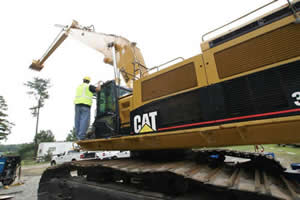

Actual Finished 385 Unit on Machine

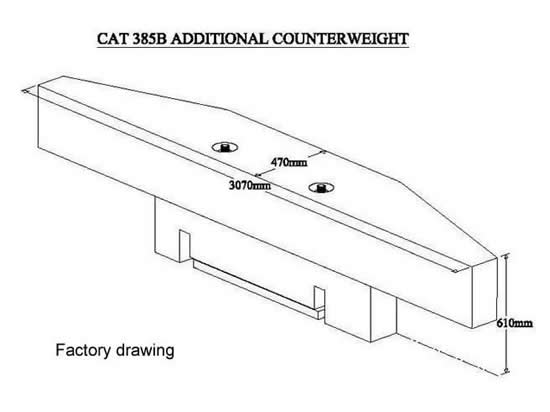

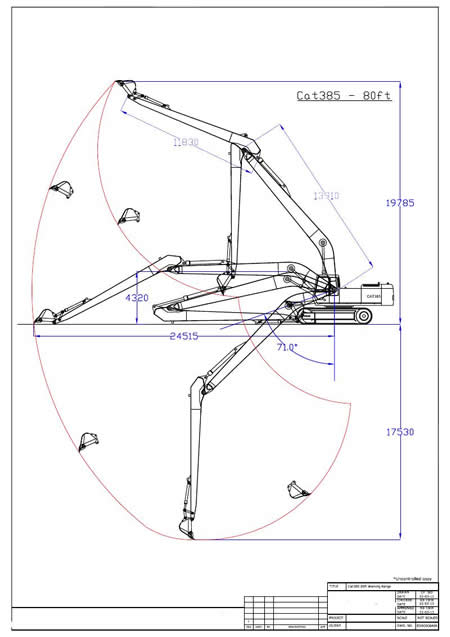

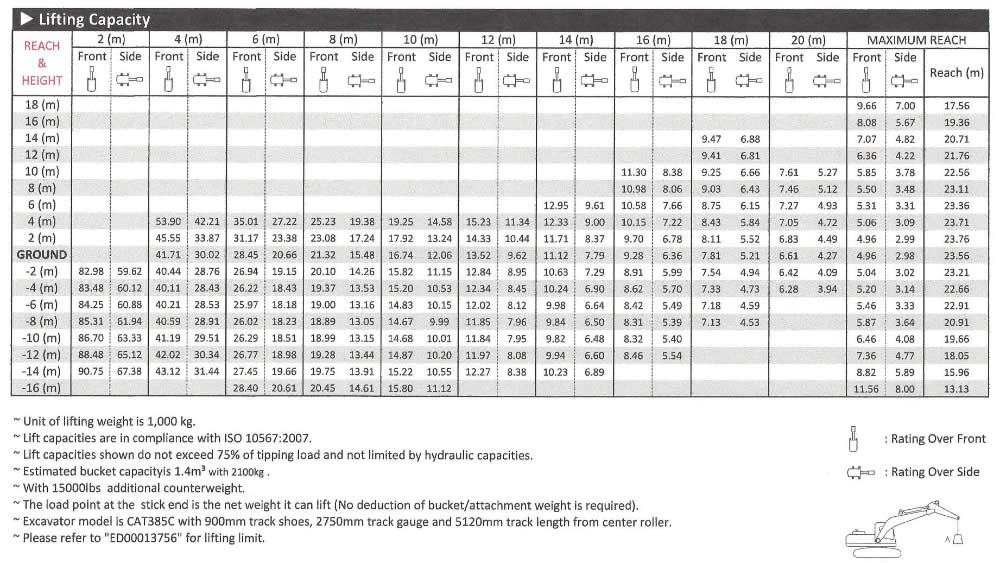

  (Click on drawing to enlarge)

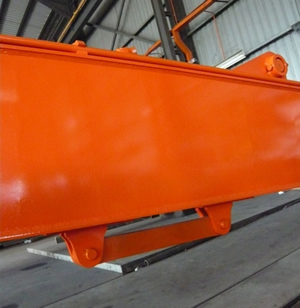

Pin to lock stick & boom together

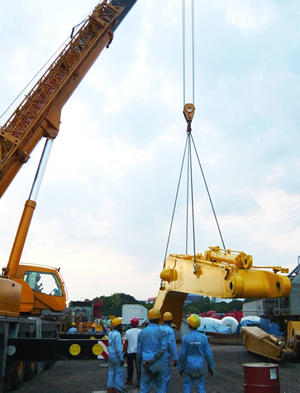

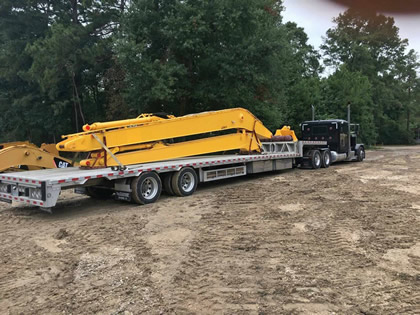

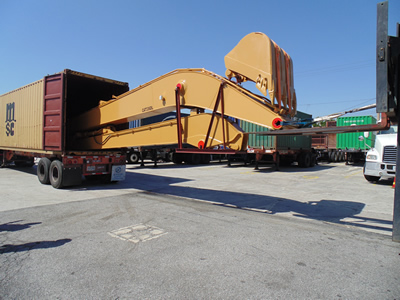

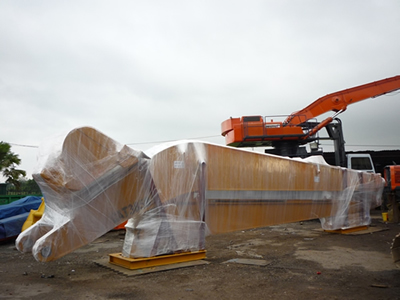

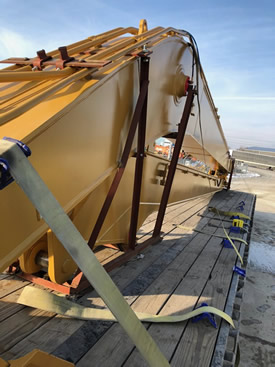

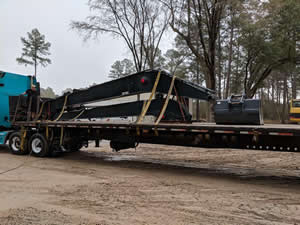

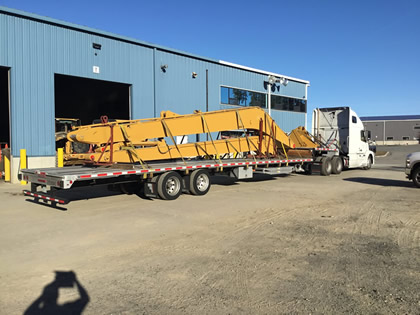

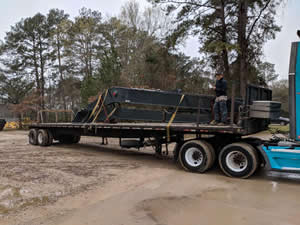

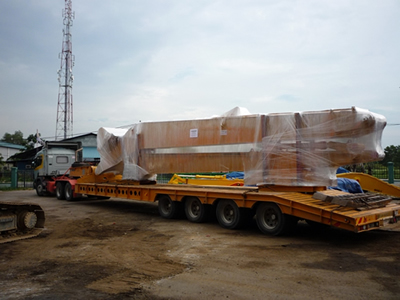

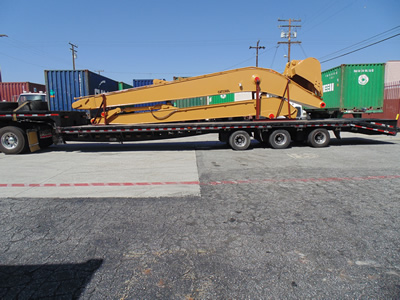

Bulk shipping for long reach package for CAT385....too large for a container!




Return to Top
* * * * * * * * * * * * * * * * * * * * * * * * *






* * * * * * * * * * * * * * * * * * * * * * * * *



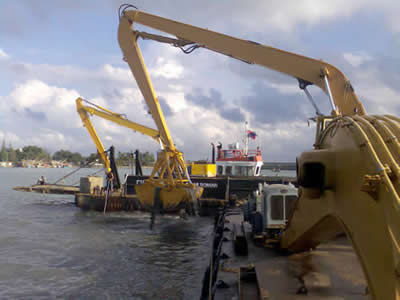

long reach packages

long reach packages

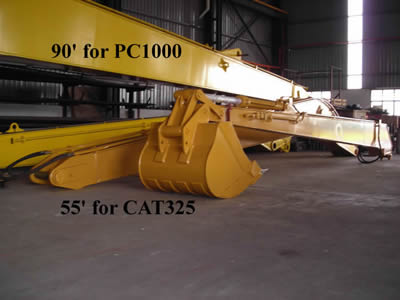

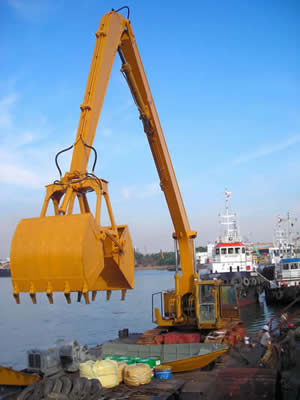

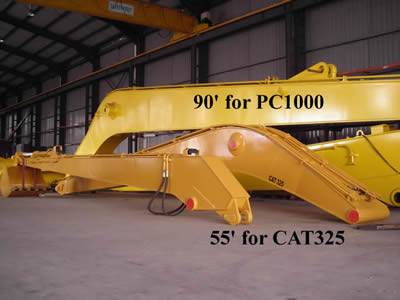

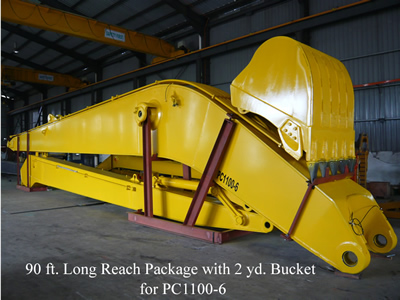

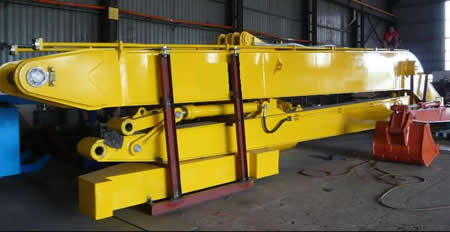

90' long reach package with 2yd bucket
Return to Top

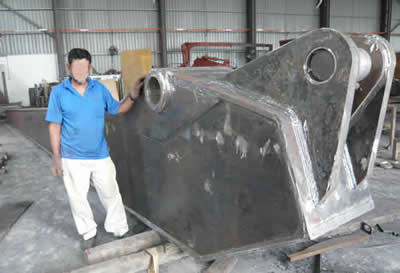

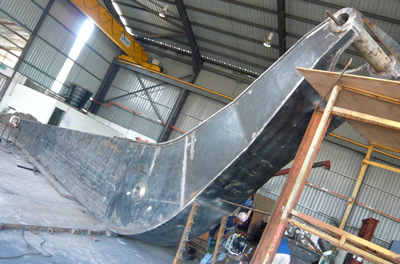

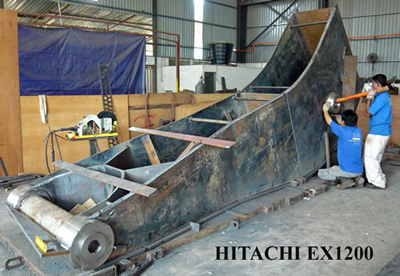

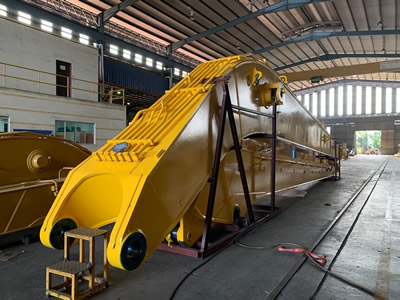

EX1200 Long Reach Package under construction

EX1200 Long Reach Package under construction

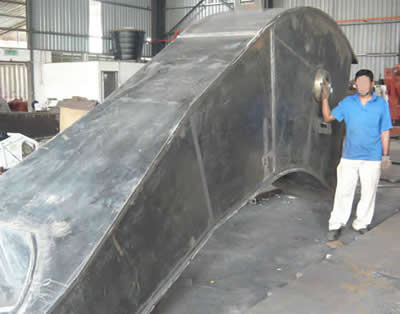

EX1200 Long Reach Package under construction

EX1200 Long Reach Package under construction

Return to Top
* * * * * * * * * * * * * * * * * * * * * * * * *

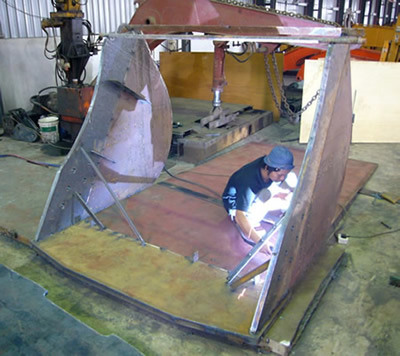

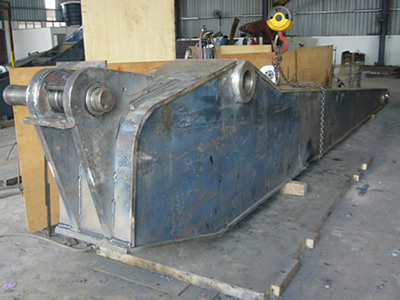

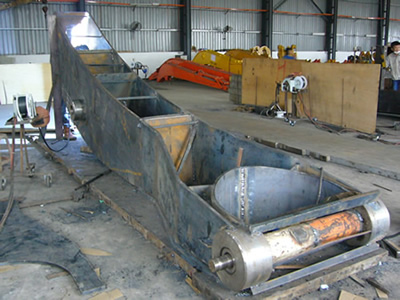

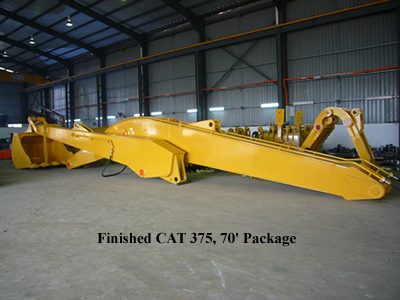

Long Reach Package in Progress for CAT 375,  70'

Long Reach Packages

In the typical fabrication of our long reach design for excavators up to 110,000 lb., we use structure grade tensile steel, grade 50B (S355JR) or higher grade. We use flux cored welding rode coupled with CO2. The internal structure reinforcing are positioned at critical positions for increased reliability, and have been fine tuned and field proven over the years.

Long Reach Packages

We have experience in designing long reaches for up to 264,000 lb (120 metric ton) excavators. All long reaches come standard with a full set of plumbing and complete with bucket and bucket cylinder. We are confident that we have the necessary expertise to deliver the best quality long reach, high reach products at the best investment value as evidenced with our many satisfied repeat customers.

Long Reach Packages

* * * * * * * * * * * * * * * * * * * * * * * * *
Return to Top
* * * * * * * * * * * * * * * * * * * * * * * * *

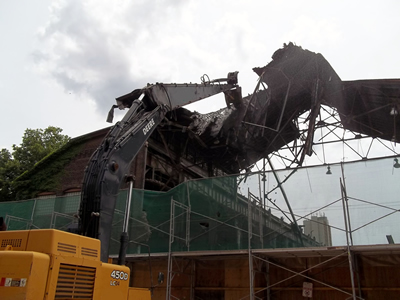

85' 3-piece ultra high demolition front end on PC400 LC-7


PC400 Front End PC400 Front End
PC400 Front End

PC450    PC450


We have complete front ends and machines in stock.
Please see our   Used/Custom section.


* * * * * * * * * * * * * * * * * * * * * * * * *


3-piece long front designed
for a large machine for ease of transport


(Industry example)

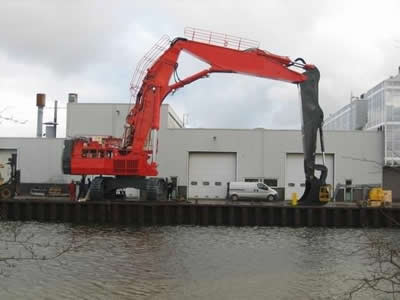

3-piece long front

* * * * * * * * * * * * * * * * * * * * * * * * *



Komatsu PC1600 with 70' front

PC1600 Front End PC1600 Front End

* * * * * * * * * * * * * * * * * * * * * * * * *


3-piece Demolition boom for under 10 ton excavator, 35' reach

(This unit is for a Kobelco SK75 or similar size machine)
Demolition Front End

Demolition Front End

Ideal for demolition work for low rise building and tight spacing environment

* * * * * * * * * * * * * * * * * * * * * * * * *
Return to Top
* * * * * * * * * * * * * * * * * * * * * * * * *

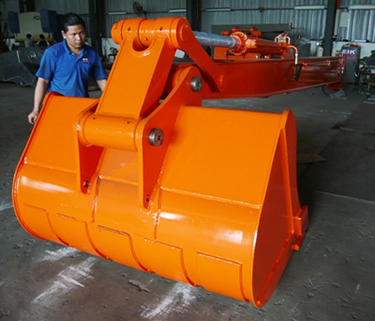

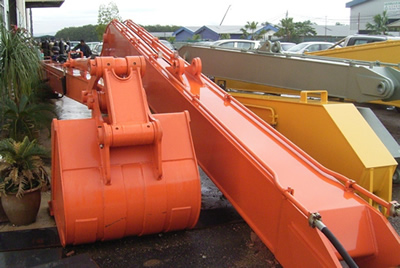

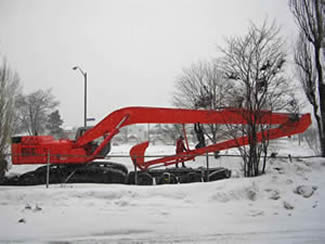

70' long reach for Hitachi EX450
EX450

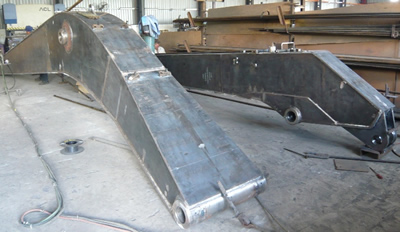

Long reach unit in progress

EX450
Finished unit ready for loading into the container
EX450

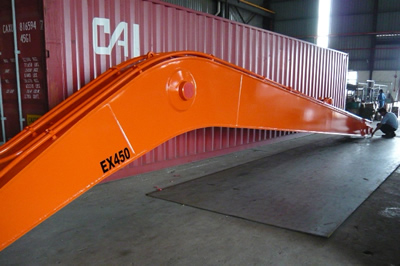

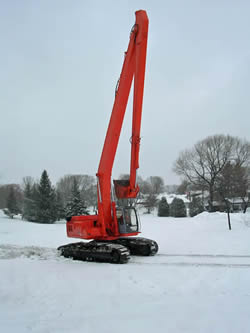

Completed long reach on machine
EX450       EX450

* * * * * * * * * * * * * * * * * * * * * * * * *
Return to Top
* * * * * * * * * * * * * * * * * * * * * * * * *

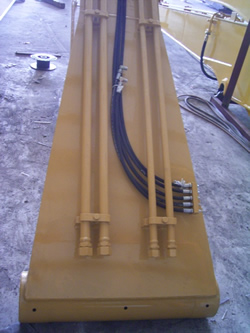

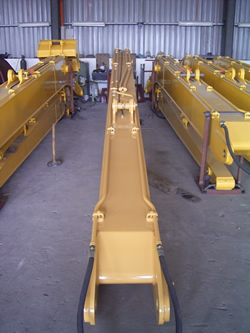

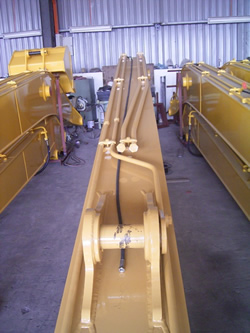

Boom and stick ends for Cat 322 Package
long reach sticks booms long reach sticks booms

long reach sticks booms

* * * * * * * * * * * * * * * * * * * * * * * * *
Return to Top
* * * * * * * * * * * * * * * * * * * * * * * * *

100,000 lb Long Reach Package

Long Reach Package
Optional bottom mounted boom cylinder
Long Reach Package

   100,00lb Long Reach Package  65' reach for 100,000lb excavator -- Items listed below --
      Item 1 -- 65' long reach
      Item 2 -- 2.0 yd Clamshell
    NOTE: 3rd boom cylinder is suggested (check for pricing)

* * * * * * * * * * * * * * * * * * * * * * * * *

Long Reach Package
Long Reach Package, Primed and Painted

* * * * * * * * * * * * * * * * * * * * * * * * *

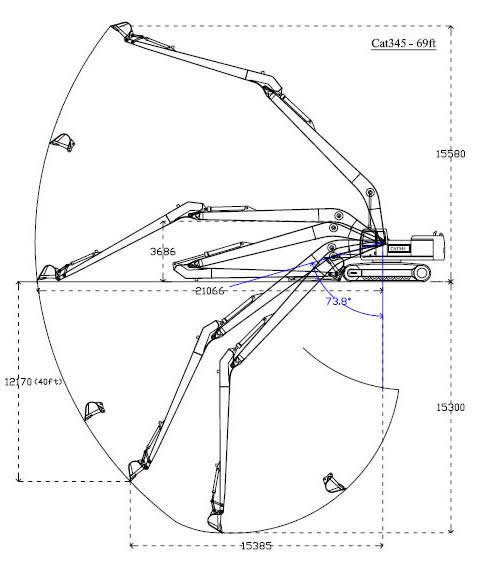

Working range chart
(Click on chart to enlarge)


The above specs are just a guideline. Different machine models can vary in specification based on individual manufacturers, design, linkage, geometry, and bucket or attachment specs. Please contact LRHR for more exact specs for your machine model.


Return to Top

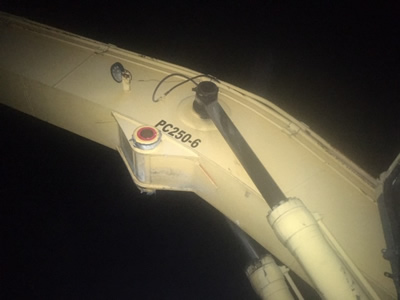

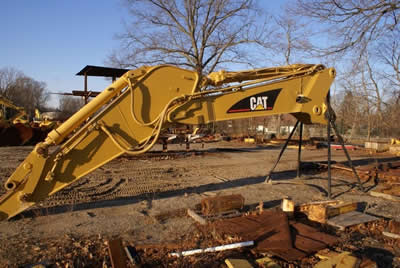

Optional Long Reach High Reach Combo Bracket

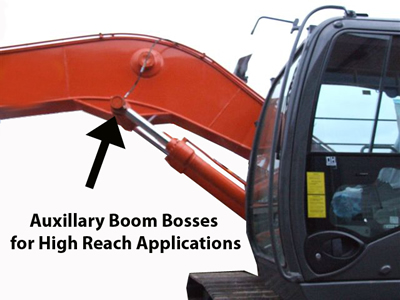

Boom Boss
(This is a sample picture --- it is not our unit)




(This is a sample picture --- it is not our unit)

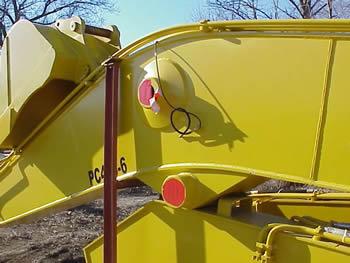

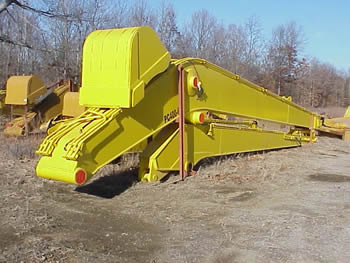

auxiliary boom bracket Our booms with
extra bracket
auxiliary boom bracket


Our booms with
extra bracket
auxiliary boom bracket
auxiliary boom bracket

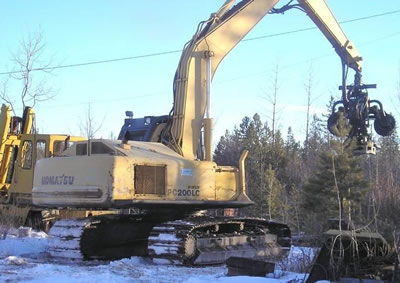

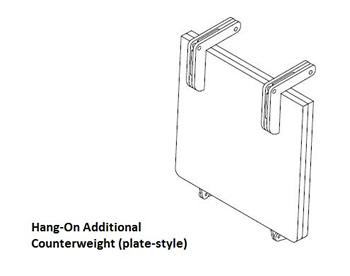

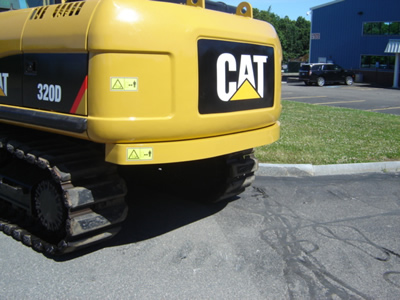

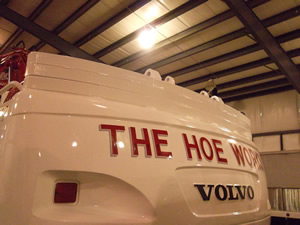

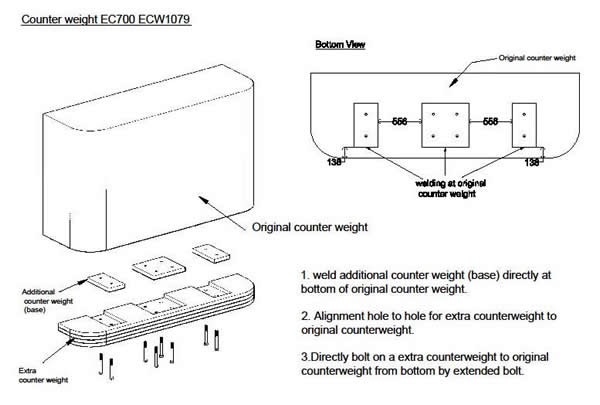

Alternative means to add extra counter weights


* * * * * * * * * * * * * * * * * * * * * * * * *

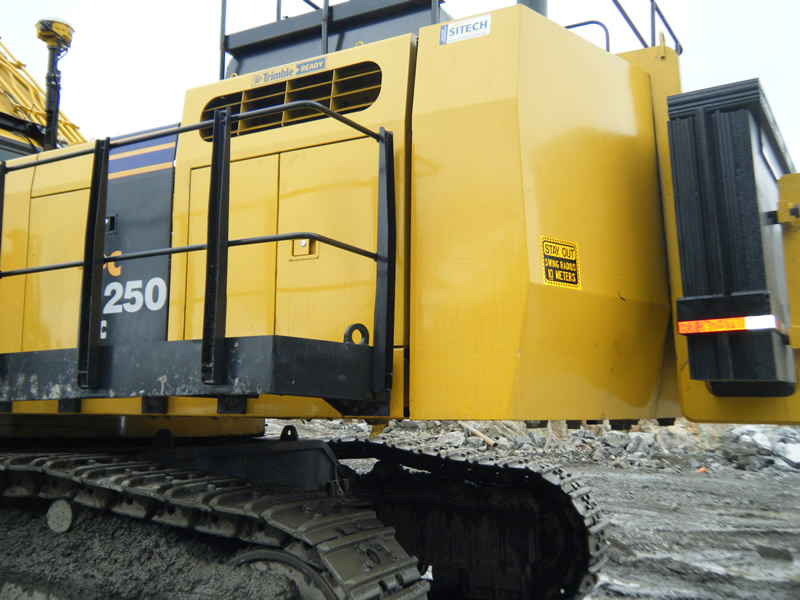

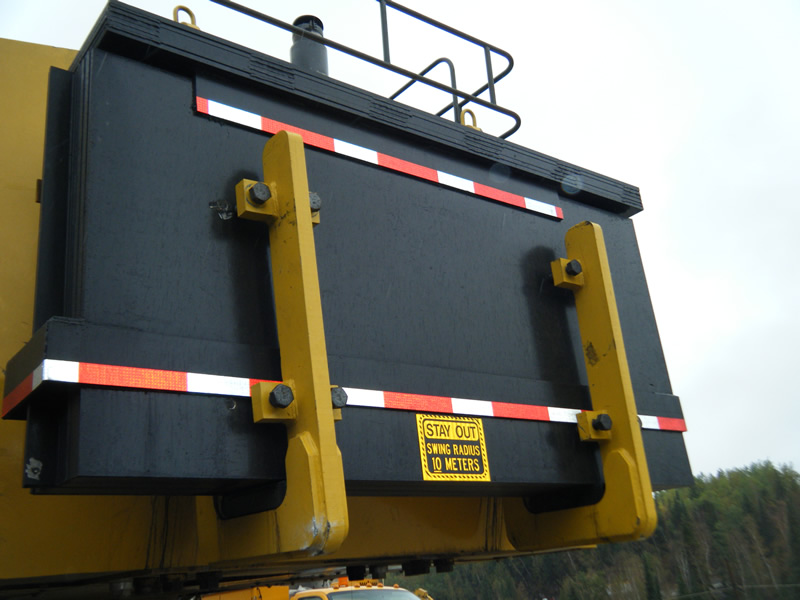

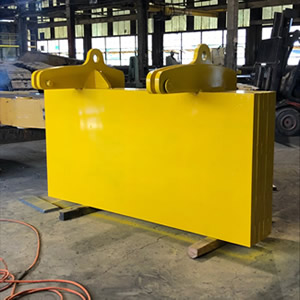

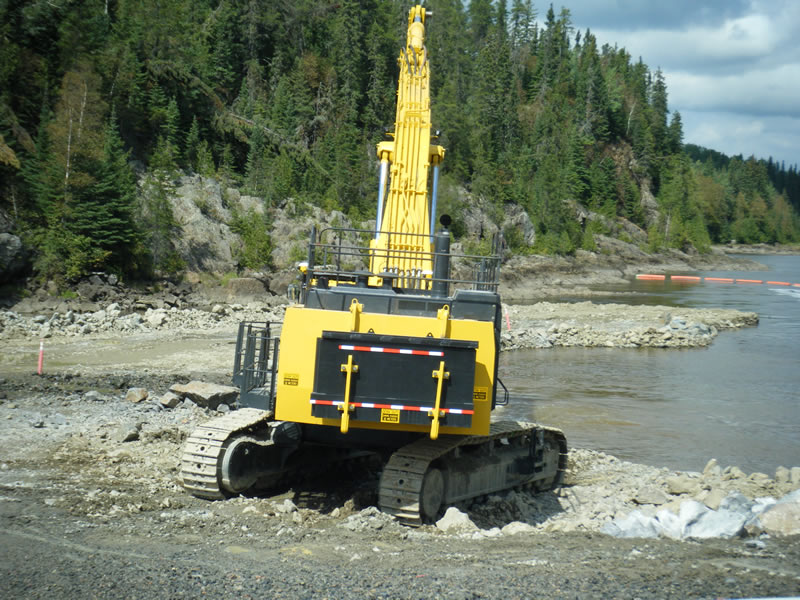

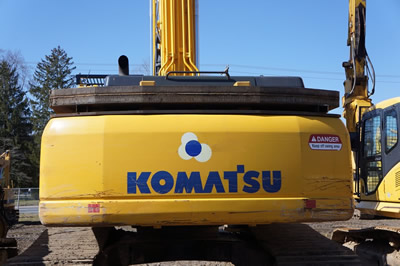

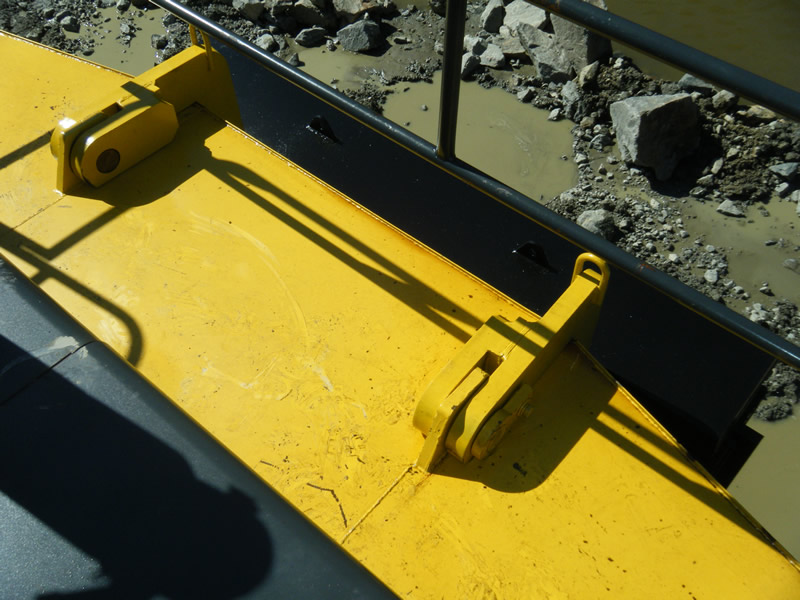

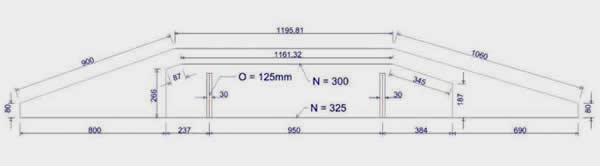

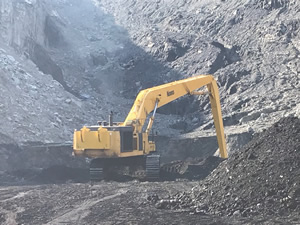

Counterweight for Komatsu PC 1250 with Bracket and Adjustable Counterweight
(Click on pictures to enlarge)



* * * * * * * * * * * * * * * * * * * * * * * * *

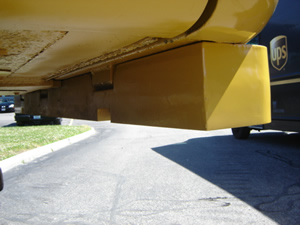

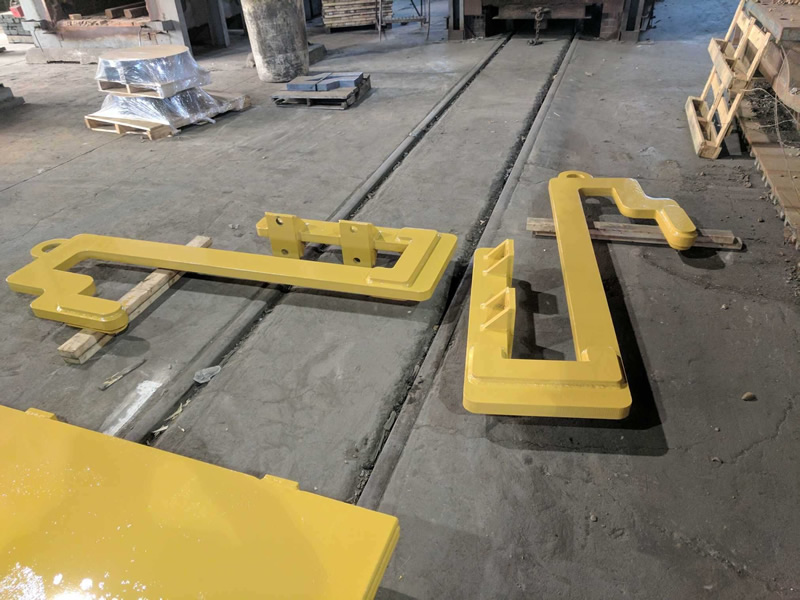

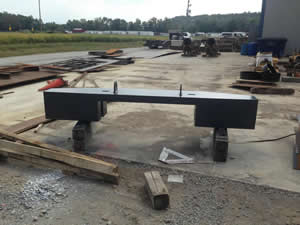

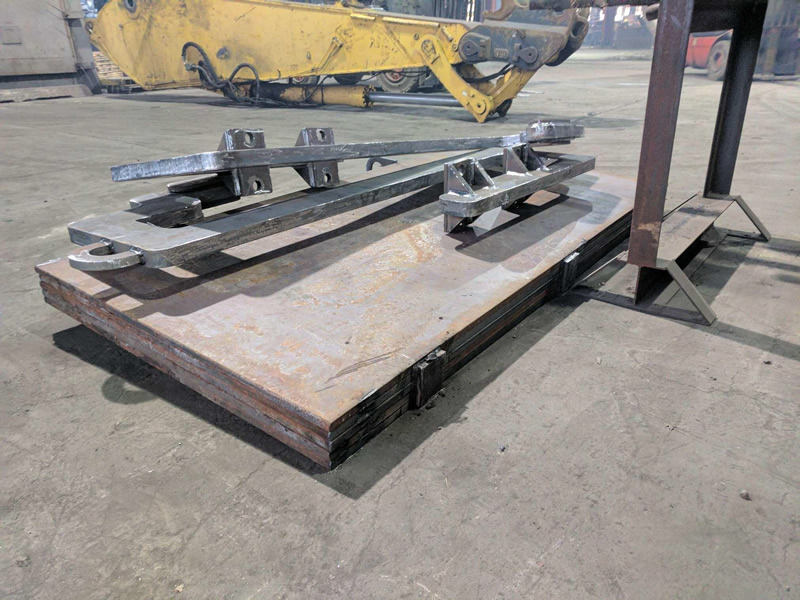

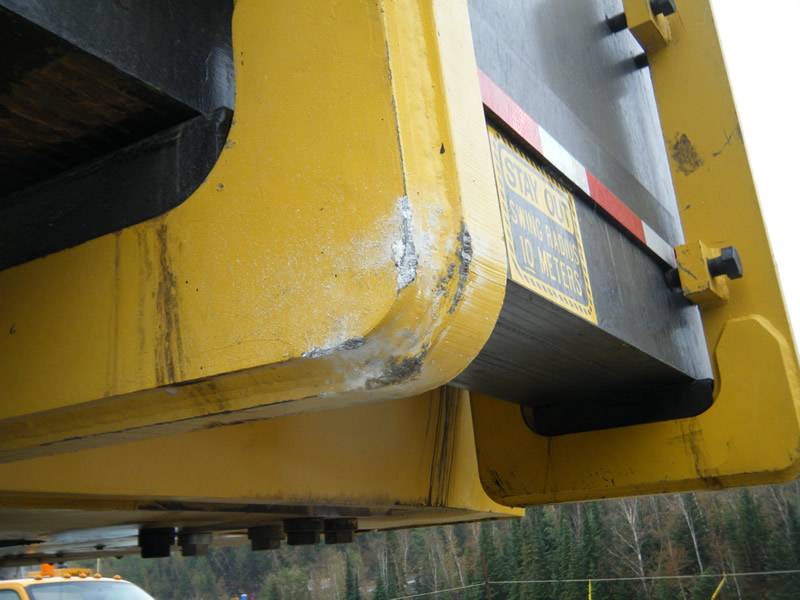

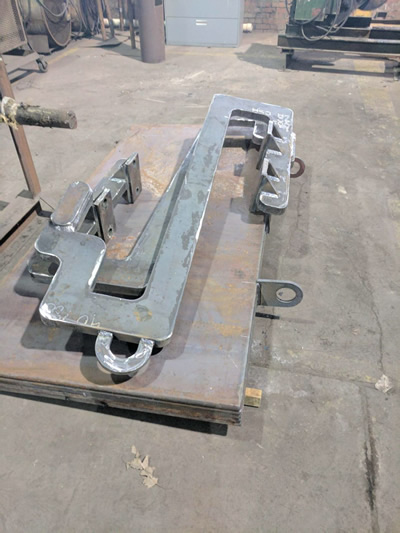

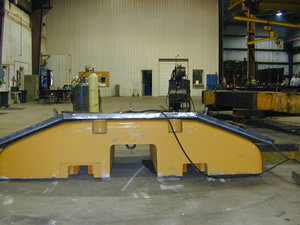

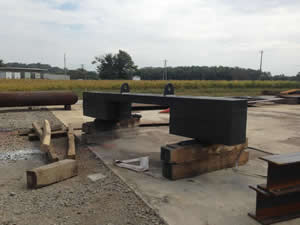

330CL Counterweight Bottom Mount Design

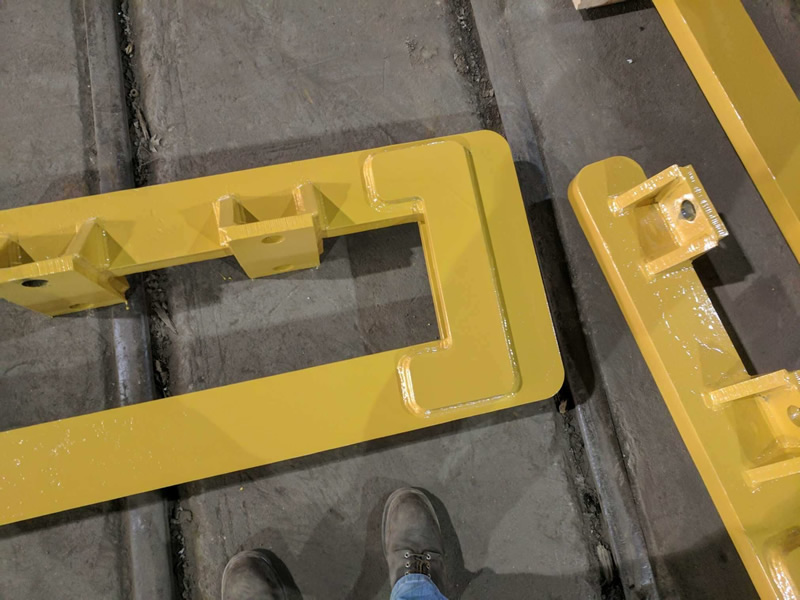

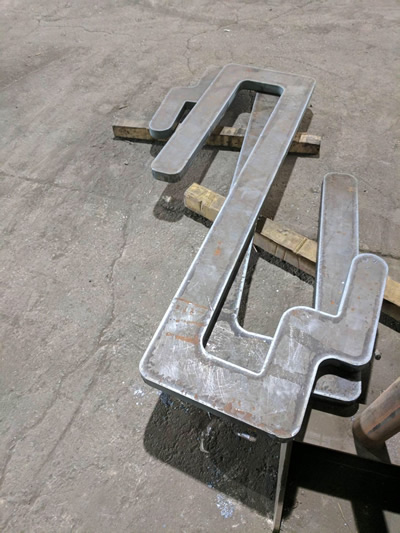

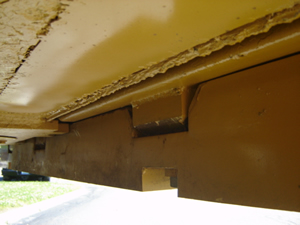

(With the weld on mounts in place on the counter weight, you will grind the metal clean in the area in which they will be welded on the bottom of the machine counter weight. You then lift the counter weight into place with a fork lift making the necessary adjustments. You then tack the weld on mounts in place, be sure the bolts line up and tread up into the mounts without a problem. You then remove the bolts and lower the counter weight, then you weld the mounts securely into place and touch up paint after they cool, lift counterweight up into place and bolt into place.)





* * * * * * * * * * * * * * * * * * * * * * * * *

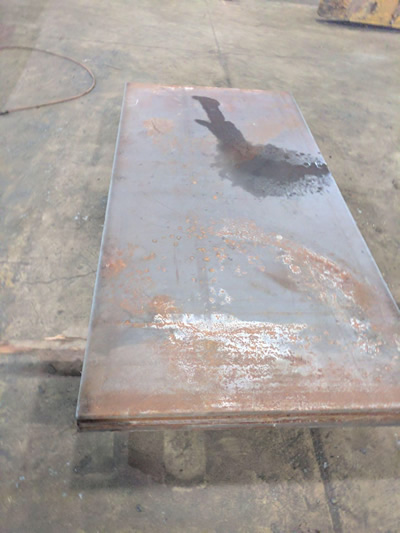

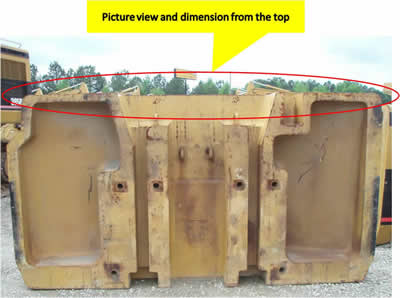

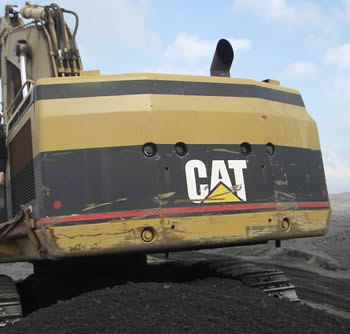

Customer measurements of counter weight void

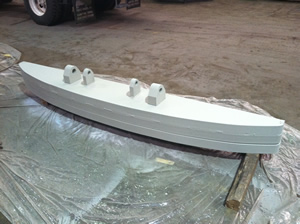

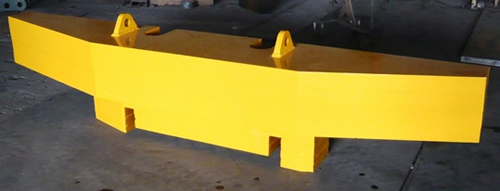

Picture of counter weight built by factory



Pictures from customer

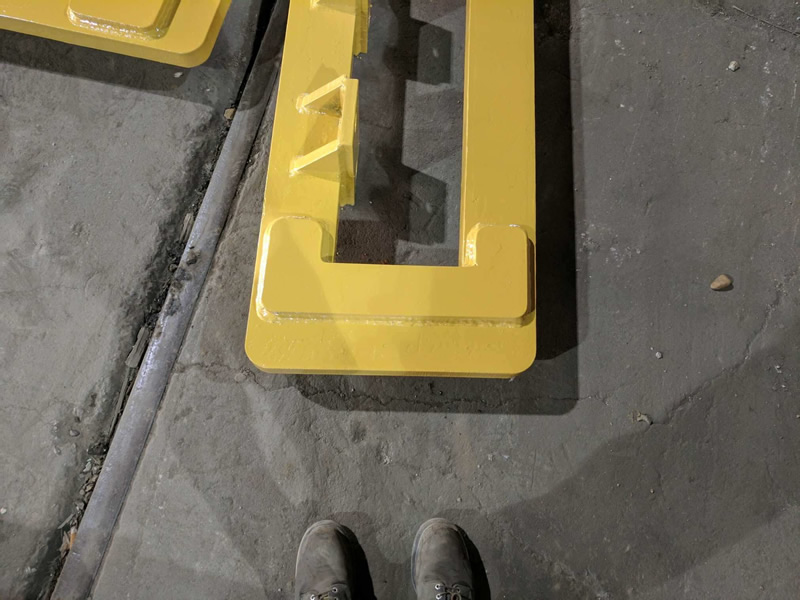

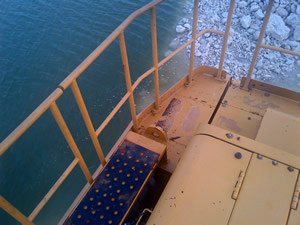

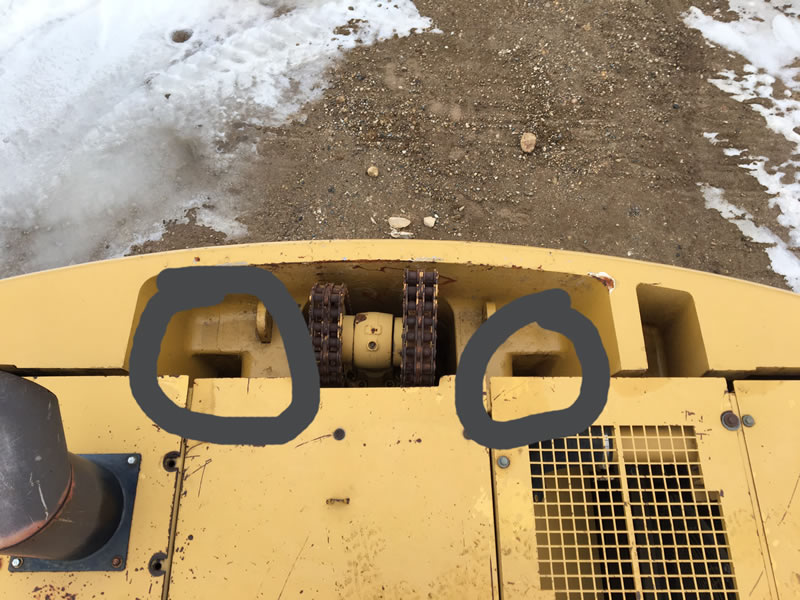

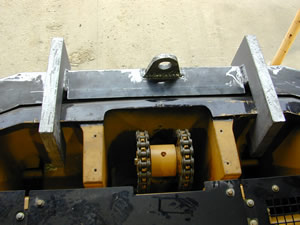

Pocket for counter weight

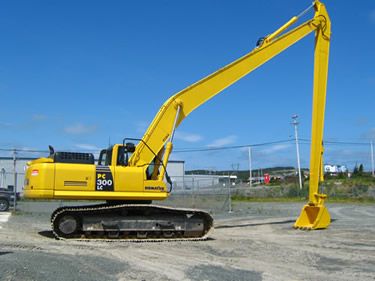

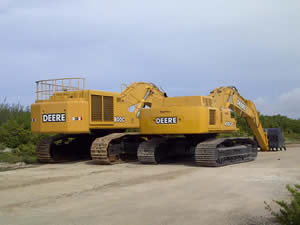

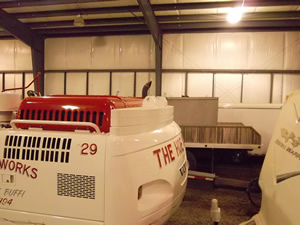

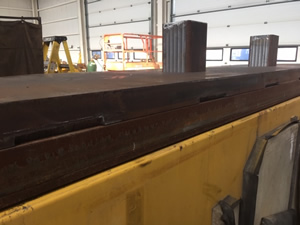

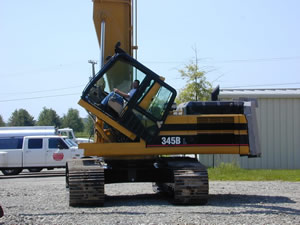

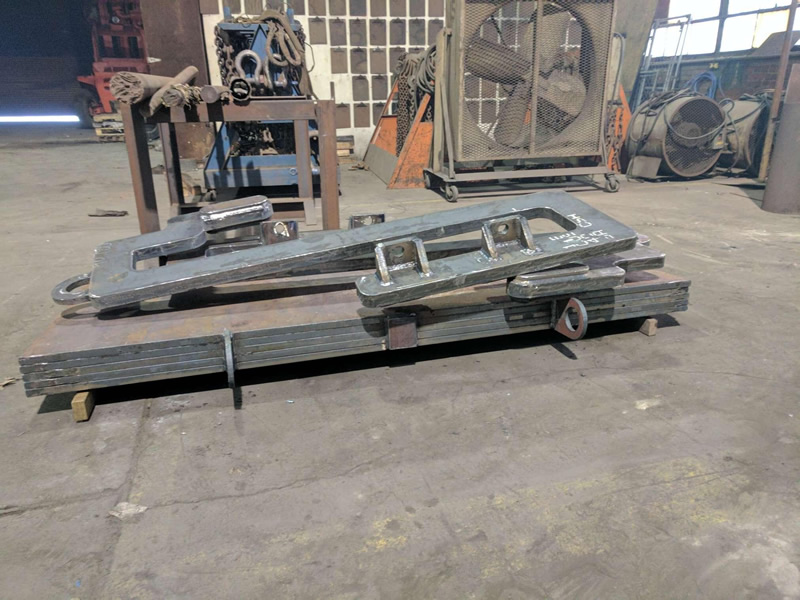

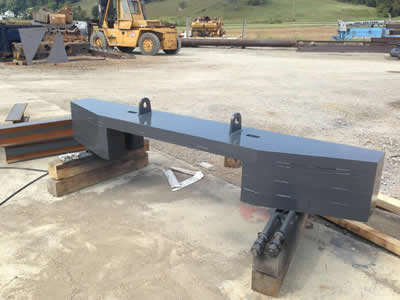

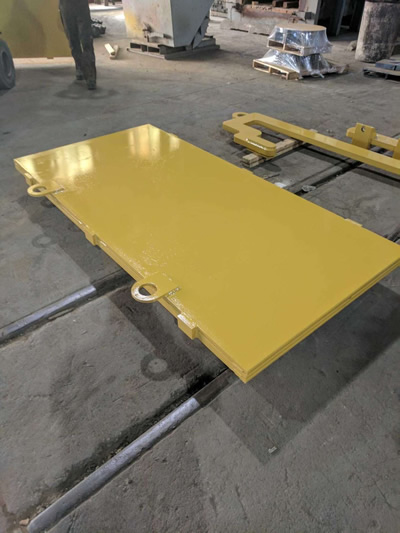

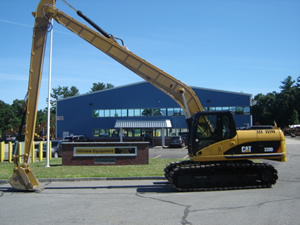

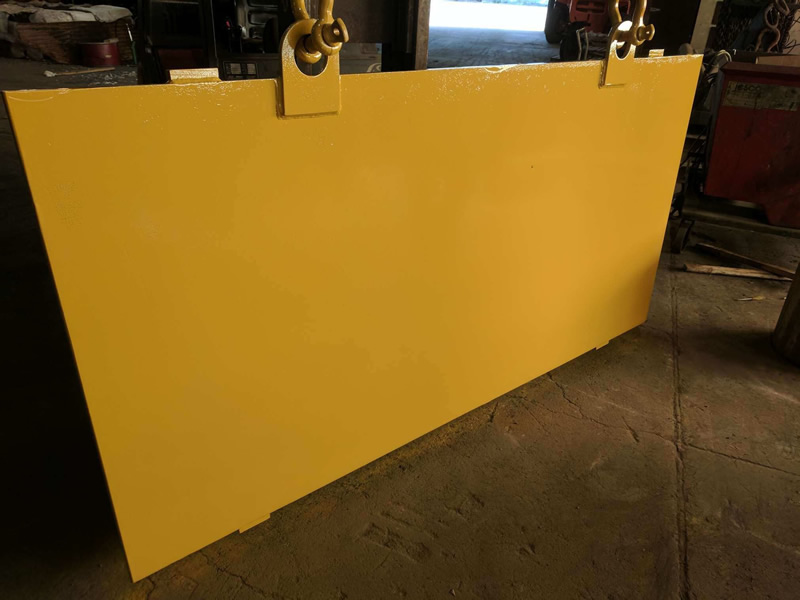

More counter weight pictures

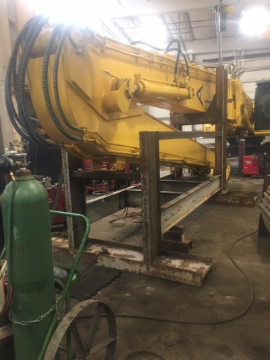

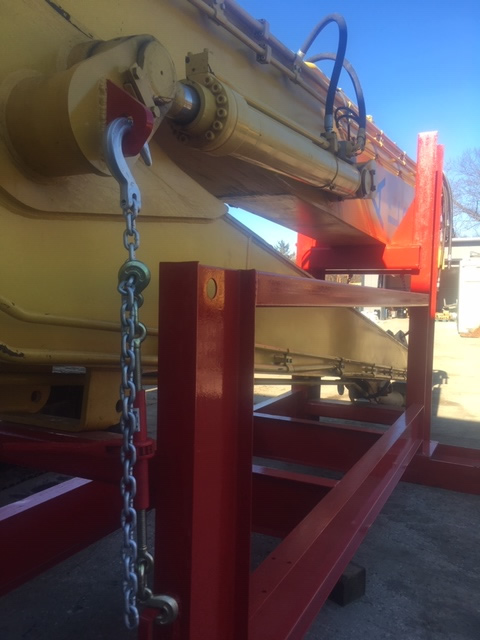

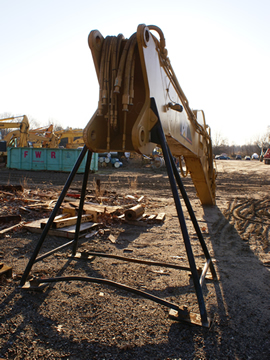

Rack for easy on/off of boom attachments

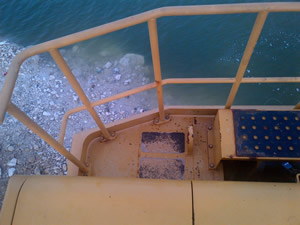

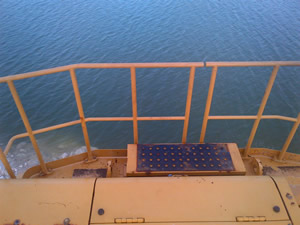

Extra fuel tank added to the rear for functional counterweight


* * * * * * * * * * * *
Return to Top

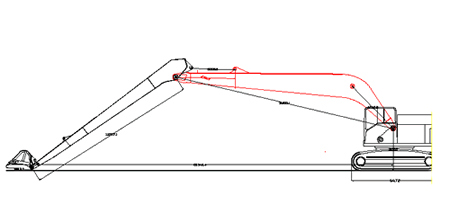

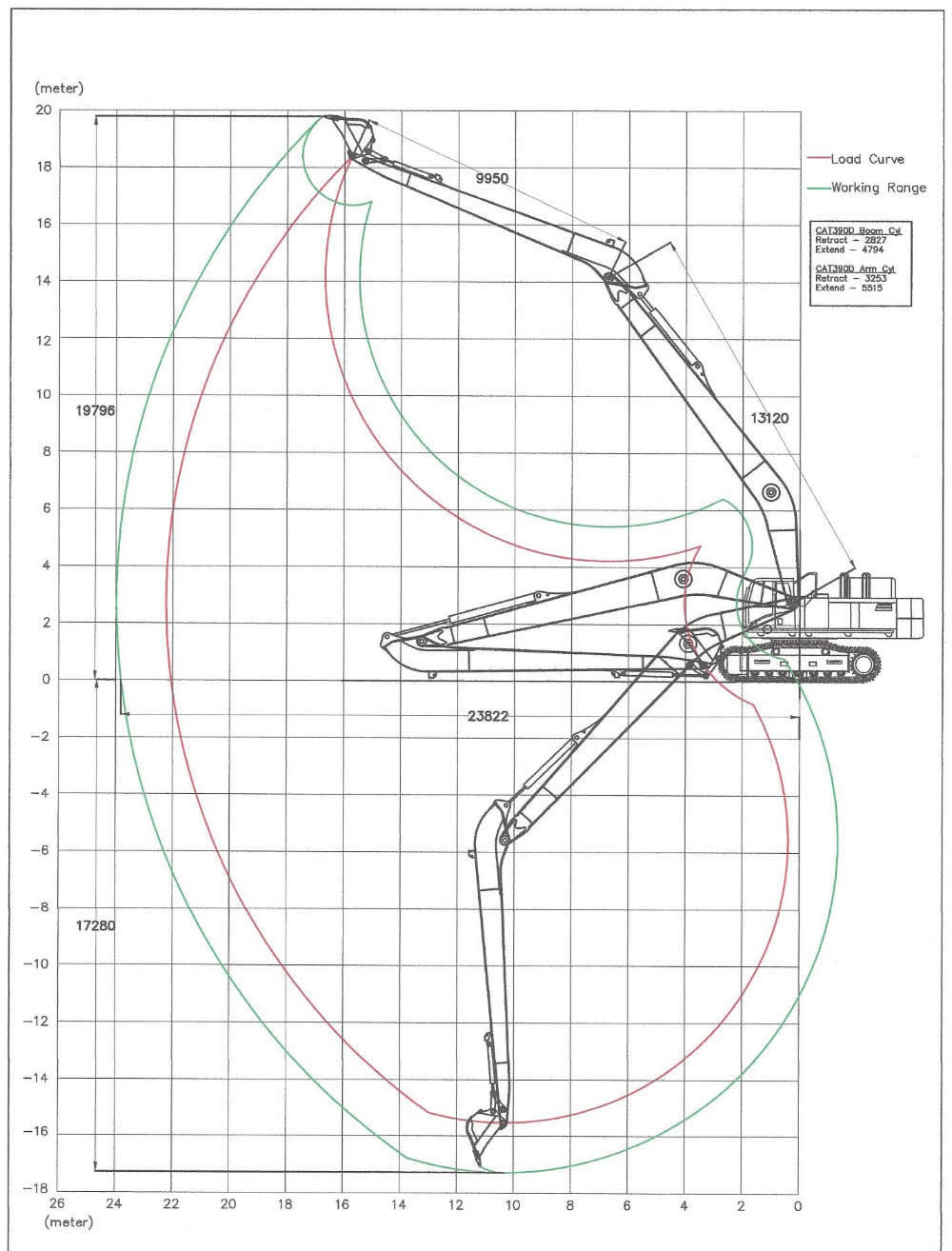

Working Range for EX650 with 80' Front End

working range for EX650
(Click on picture to enlarge)

* * * * * * * * * * * * * * * * * * * * * * * * *



Working Range for EX1200 with 100' Front End

EX1200 Forward Reach
(Click on picture to enlarge)

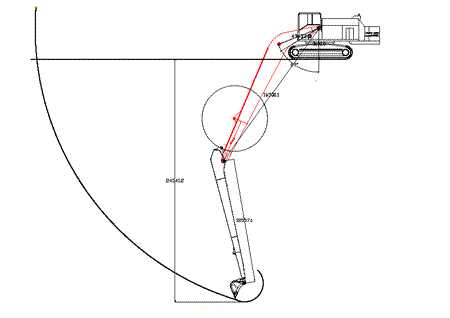

EX1200 Depth Chart
(Click on picture to enlarge)

* * * * * * * * * * * * * * * * * * * * * * * * *

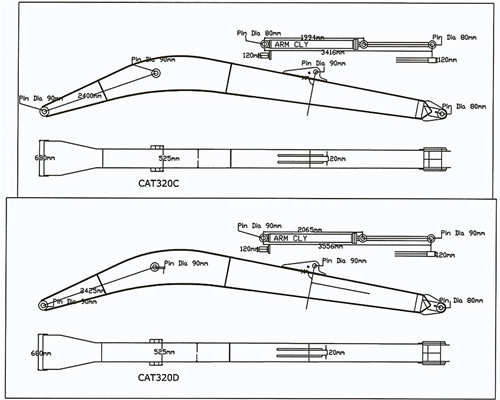

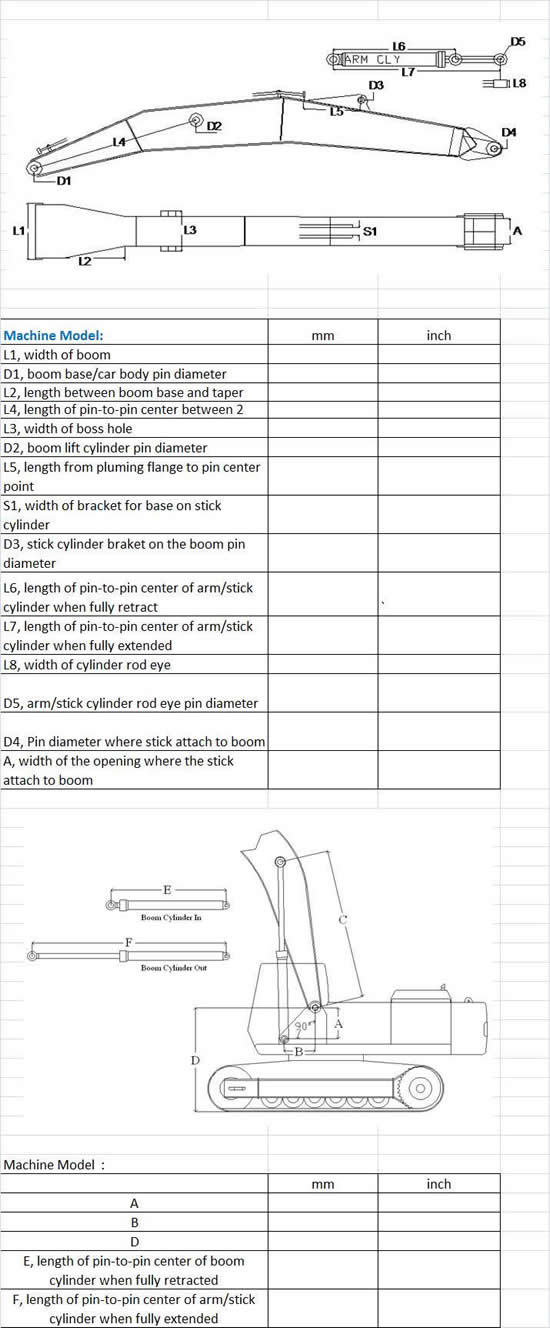

Sample Measurements

(Click on diagram to enlarge)

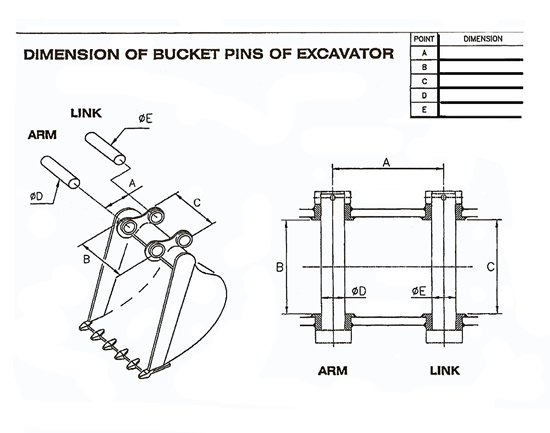

Dimensions Form
Click here to print Dimensions Form
Dimensions Form
(Click on sample form to enlarge)



Measurement Form is required when OEM specs are not on file with the factory. Customer will need to measure his unit or get these measurements from his local dealer.


NOTE:  When a customer sends us the measurements, you need to send these type of pictures from these areas on your machine.  We will try to match up your hoses, but you may need to go to a local hydraulic shop to make jump-over hoses or obtain conventional fittings.






* * * * * * * * * * * * * * * * * * * * * * * * *

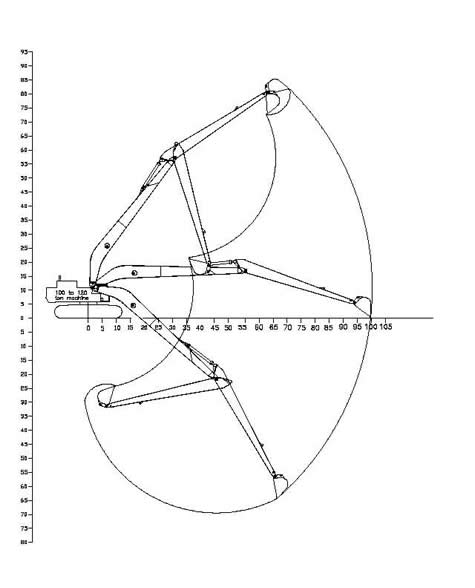

100 Foot Chart for 800 to 1200 Size Long Reach

(Click on diagram to enlarge)

* * * * * * * * * * * * * * * * * * * * * * * * *

Dimensions Form
(Click on dimension form to enlarge)

* * * * * * * * * * * * * * * * * * * * * * * * *


(Click on picture to enlarge)
