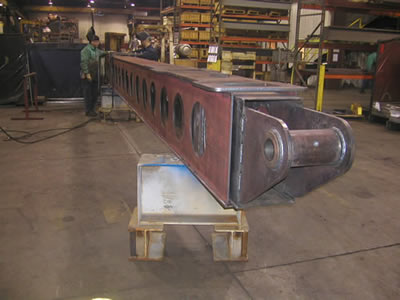

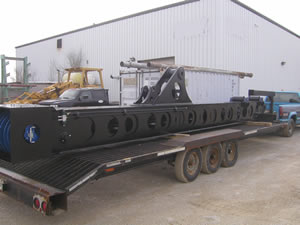

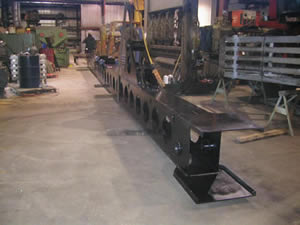

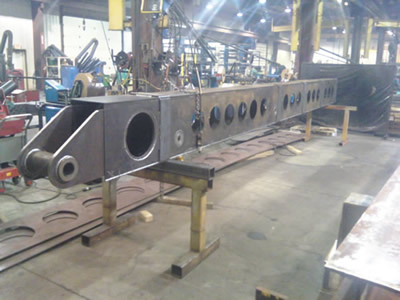

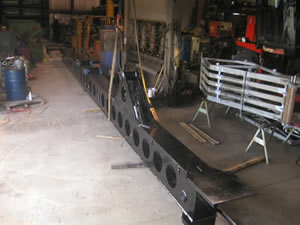

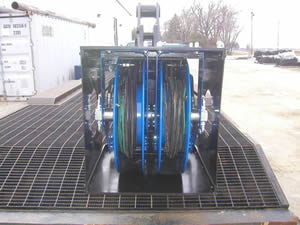

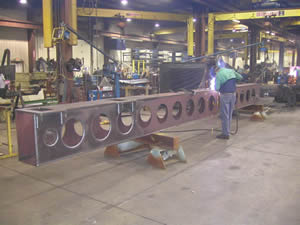

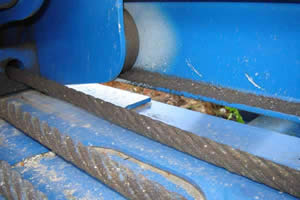

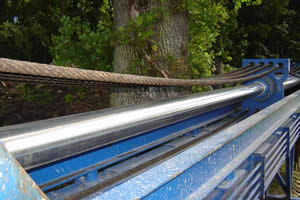

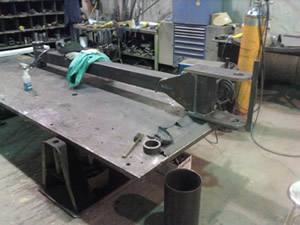

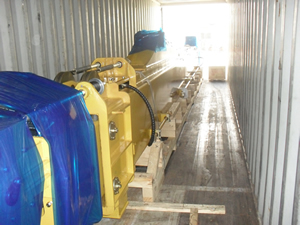

We are pleased to announce the introduction of the Telescoping Booms. The pictures display a sample boom under construction.

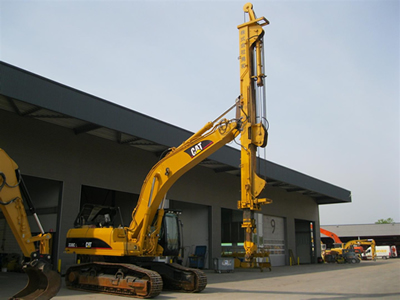

A new unit (to be delivered in Feb. 2009) is available for a CAT 250 and reaches down 55 feet.
Additional information and pictures for these units will be displayed when they become available. Please contact the Ransome sales office
if there are any questions regarding these attachments.
|
| |
 |
| |
|
| |
 |
| |
|
| |
| |
|
| |
| |
|
| |
 |
| |
| |
|
| |
| |
 |
| |
| |
 |
| |
| |
 |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |
 |
| |
 |
| |
|
| |
 |
| |
| |
|

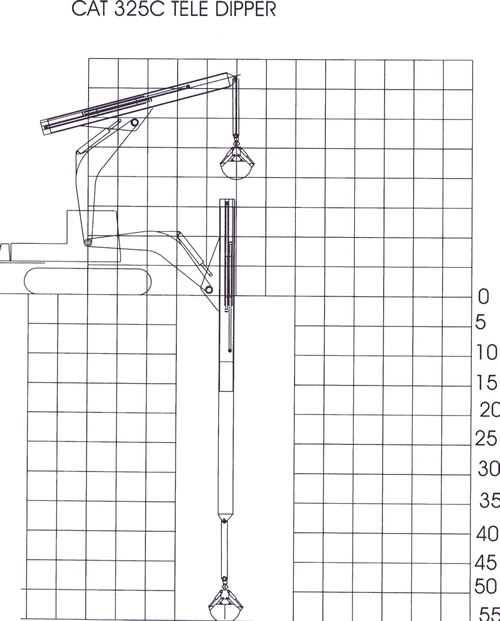

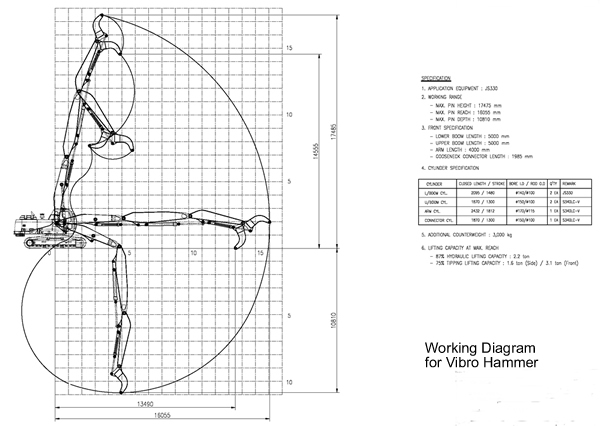

Telescopic Dipper Working Range
(Click on working range diagram to enlarge)
|
| |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
|

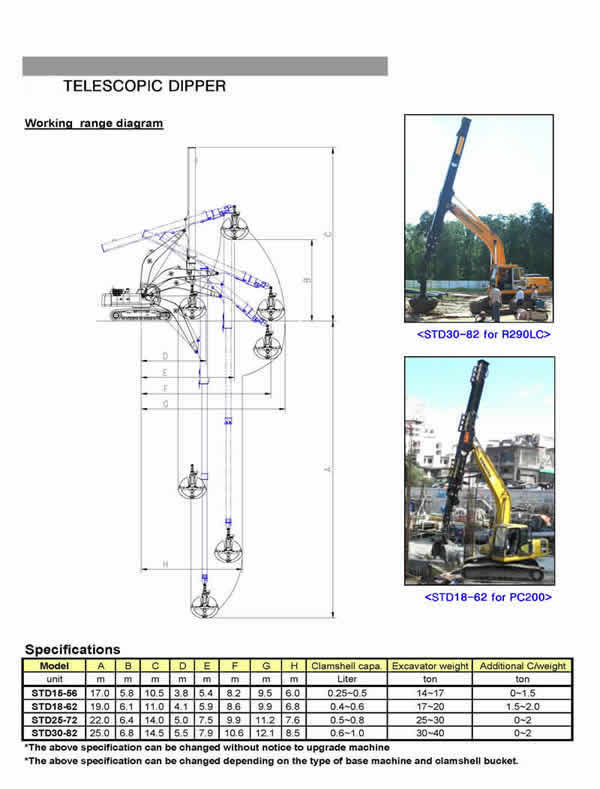

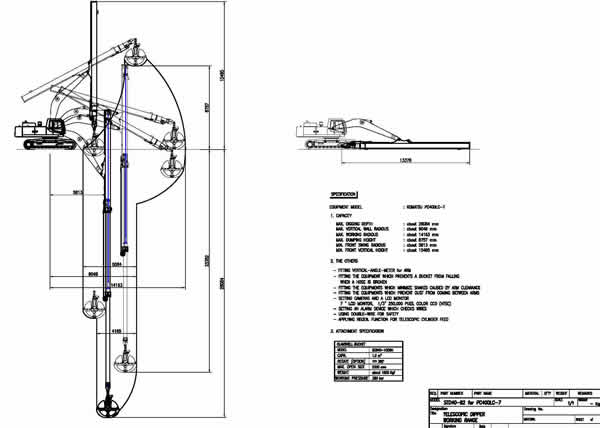

Additional Teledippers Available...
|
| |
|
| |
|
| |
|
| |
|
(Click on working range diagram to enlarge)
|
| |
| |
| |
(Click on working range diagram to enlarge)
|
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |
 |
| |
|
| |
|
| |
 |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |
| |
|
Used Telescopic Booms
|
| |
05162012 Teledipper fully hydraulic, max dig depth 46 feet, 0.6 yard clamshell c/w mechanical rotate, hanger to suit customer machine, ideal size match 40,000 to 44,000 lb excavator,
located in New Jersey - P.O.R.
|
| |
| |
| 05302012 Teledipper new unit, heavy duty hydraulic over cable, max dig depth 50 feet, hanger to fit CAT 345, 2 yard clamshell c/w hydraulic rotate - P.O.R. |
| |
05302012 Teledipper fully hydraulic, max dig depth 56 feet, hanger to suit customer machine – ideal size match 44,000 to 55,000 lb excavator, 0.9 yard clamshell c/w mechanical rotate - P.O.R.
|
| |
| 05162012 Teledipper CAT 345 25m teledipper, 1500 ltr (2 yard) clamshell - P.O.R. |
| |
03182012 Teledipper 2009 year 28m teledipper, has only been used on one tunnel job and is in A1 condition, 1500 litre clamshell bucket with digging teeth and hydraulic rotate, current hanger brackets are for CAT 345 but can be changed to PC600 for additional cost - P.O.R.
|
| |
03072012 Hydraulic Teledipper used 17m fully hydraulic teledipper, with converted hanger for PC228 and 700 litre mechanical rotate clamshell - P.O.R.
|
| |
03072012 Hydraulic Teledipper used 11m fully hydraulic teledipper, with converted hanger for PC228, 200 litre clamshell available at extra charge - P.O.R.
|
| |
| 03072012 Hydraulic Teledipper new 19m fully hydraulic teledipper with hanger for PC228 & 700 litre mechanical rotate clamshell - P.O.R. |
| |
02222012 Teledipper unit will have a dig depth of 56-57 feet when fitted to a 44,000 lb machine, all sections are straight, wear pads look good, reel, hoses, etc. are also good, mechanical rotate clamshell of approx 0.75 yard - P.O.R.
|
| |
| |
11292011 Teledipper year 2008, approx 800 hours, 28m, 2-yard hydraulic rotate clamshell, need a CAT 345 size excavator for stability - P.O.R.
|
| |
| |
06142011 Rope over Teledipper year 2009 rope over hydraulic teledipper, 92 feet dig depth, for use with 99,000 lb+ excavator and 2.0 cubic yard hydraulic rotating clamshell, excellent condition, external hose track - P.O.R.
|
| |
| |
11112011 Hydraulic Teledipper 21m / 69 ft dig depth, rope over hydraulic operation, 700 litre / 1 yard digging clamshell – mechanical rotate,
needs 22t / 48,000lb base excavator for stability, current hanger brackets for Sumitomo S280 but can be altered to suit any base excavator - P.O.R.
|
| |
| |
12072011 Teledippers 2 options listed below - P.O.R.
24ft. demolition dipper Max reach with 6,000lb tool is 52ft., 4000lb. counter weight required
for demolition dipper
16 ft. demolition extendavator max reach with 4000lb tool is 65 ft.
Note: This same arrangement style is available for a CAT 345 size machine, but at lesser heights and lesser tool weights possible |
| |
| 07212011 Hitachi 270 with telescoping front - P.O.R. |
| |
06152011 Hydraulic Teledipper fully hydraulic teledipper, 48 feet dig depth, for use with 18,000 lb+ excavator and 0.4 cubic yard clamshell, good mechanical condition - P.O.R.
|
| |
| |
06142011 Kobelko Teledipper fully hydraulic teledipper, 33 feet dig depth, for use with 18,000 lb+ excavator and 0.4 cubic yard clamshell - P.O.R.
|
| |
06142011 Hitachi Teledipper fully hydraulic teledipper, 35 feet dig depth, for use with 18,000 lb+ excavator and 0.4 cubic yard clamshell, new ram seal & slide pads - P.O.R.
|
| |
| |
11242010 Hitachi ZX225 2003 year machine, 1500 hours with 21m / 69ft teledipper & 1.2 yard clamshell - $ 197,000.
|
| |
| 11242010 Hitachi teledipper 2003 year, 11m / 36ft teledipper, new ram seals & wear pads - P.O.R. |
| |
07242010 Komatsu PC75UU-2 compact excavator and teledipper, 2 piece excavator boom is very useful
for small confined spaces, 2 stage teledipper w/ half round well sinking clamshell bucket, machine in excellent condition,
city / rubber pads fitted on tracks – these could be replaced w/ standard steel pads, dig depth approx 11.5m / 38 ft - P.O.R.
|
| |
07092010 Telescopic stick with 1.3 yard clamshell bucket, 28 metre / 92 feet dig depth,
600 ton a day production, mounted on Volvo EC360, 2004 year stick with less than 100 hrs, has worked on site demonstrations, very good condition, rams & ropes greased, original paint still on the slide tracks,
brackets to fit CAT 345 boom - P.O.R.
|
| |
