Marsh Buggies / Swamp Buggy
Amphibious Excavators


Click here for Used Marsh Buggy section


swamp buggy

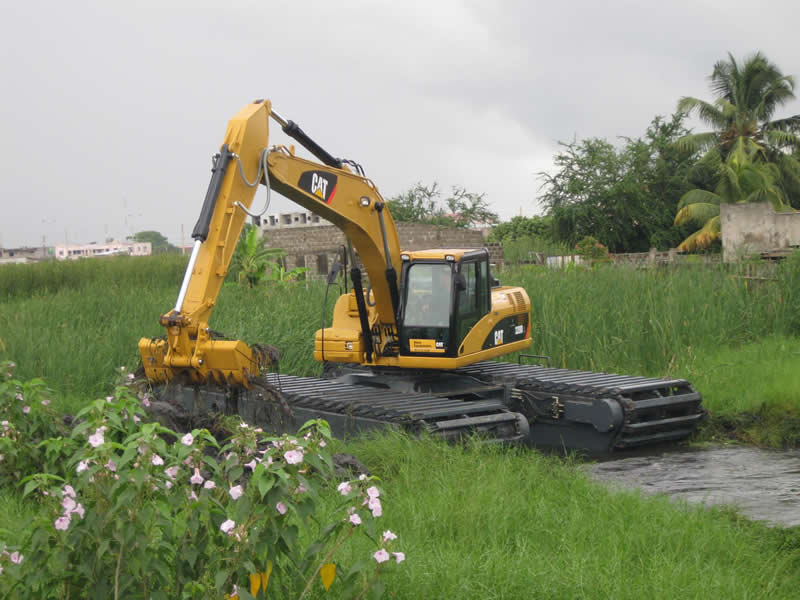

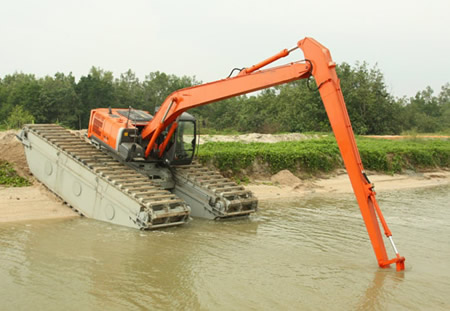

Working Marsh Buggy
Click here to replay this video


marsh buggy        swamp buggy

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


Watch

the video of the floating marsh buggy

and

the video of the working marsh buggy


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


swamp buggy
marsh buggy

swamp buggy


Marsh buggy

marsh buggy         swamp buggy

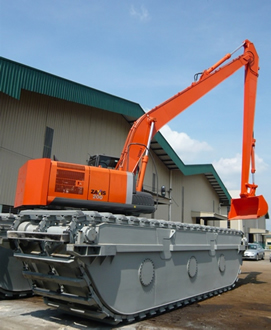

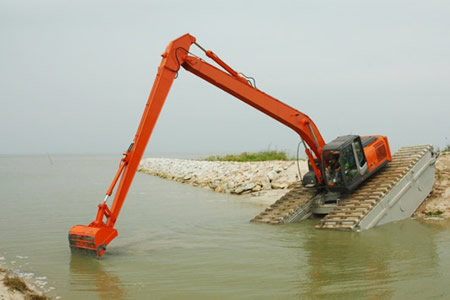

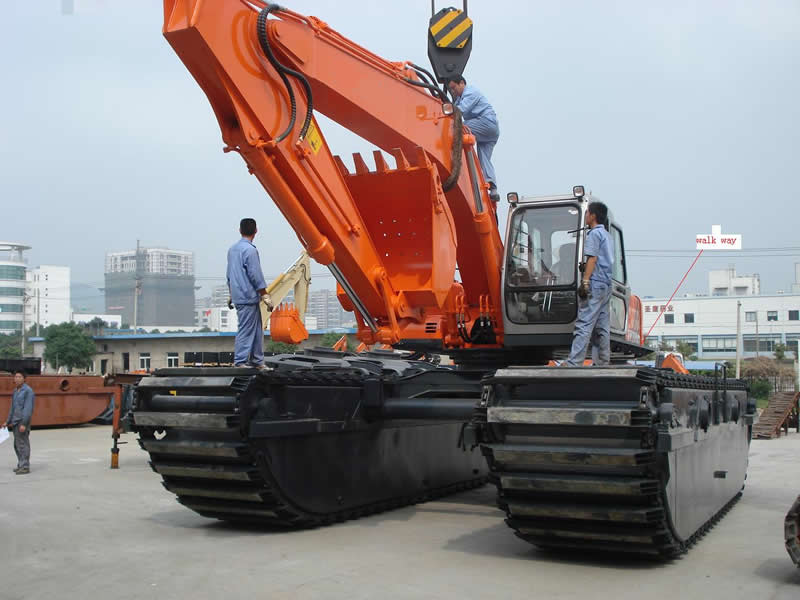

Marsh Buggy Goes Where Traditional Excavators Cannot Go

New from LongReachHighReach (LRHR) is the Amphibious Marsh Buggy (Amphib MB) specifically designed to maneuver and go through swampy areas with soft underfoot terrain where traditional excavators cannot go.

The Amphib MB is extremely productive in dredging, erosion control and erosion prevention. It also provides efficiency in waterway, river and pond shoreline construction and can be used for maintenance and clearing of rivers, lakes and other water projects.

Two hydraulic motors power each set of tracks which provides the equivalent of four-wheel drive. Most competitive models feature only one motor per each track.

The track chain is a three rail system. Shoes and cleats are supported by the track chain which provides a unifying pulling force with a superior weight to drive ratio across each track shoe and cleat.

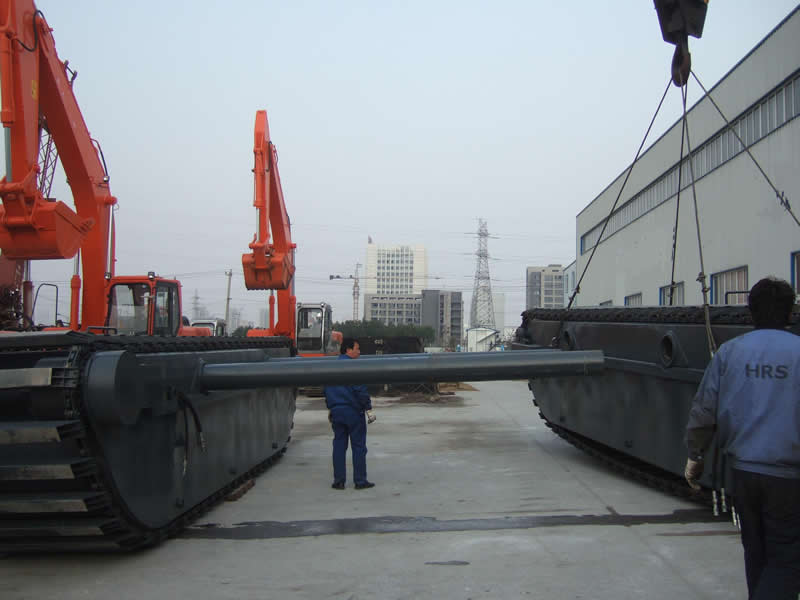

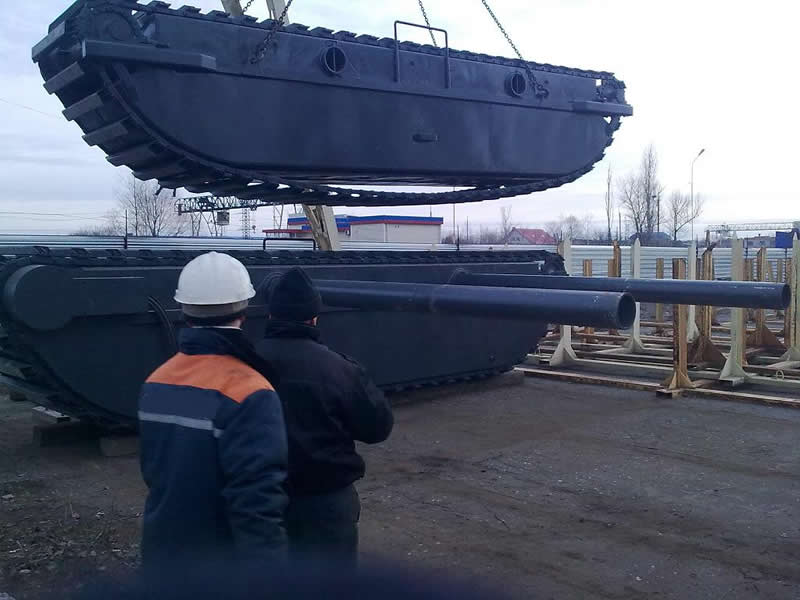

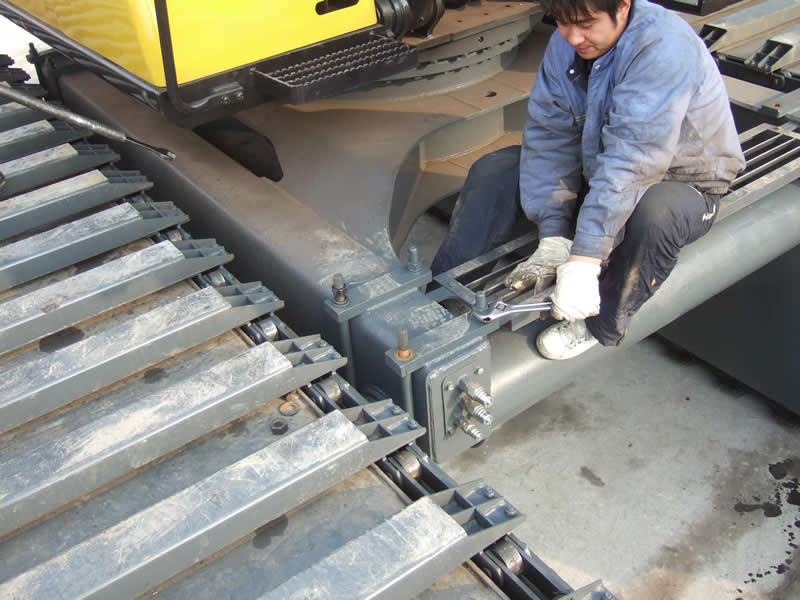

A manual expansion system allows the pontoons to move in and out by one-foot on each side increasing and reducing the overall footprint of the unit. Highly maneuverable, the system is made of high-grade structural tensile plate steel with some steel components made with 100,000 psi steel.

Uniquely designed for easy breakdown and reassembly in a matter of hours, the Amphib MB and 20-ton excavator top can be shipped economically in three containers for contractors doing jobs in remote and distant areas.

The Amphib MB package for small and mid-sized hydraulic excavators is a natural compliment to Long Reach's product line of 100’ Reach large excavator custom fronts.




Applications:

The Marsh Buggy has proven itself well in the following applications:

  • Dredging
  • Landscaping
  • Erosion control and prevention
  • Deepening of waterway and river delta
  • Maintenance and cleaning of rivers, lakes, shoreline, ponds, etc.

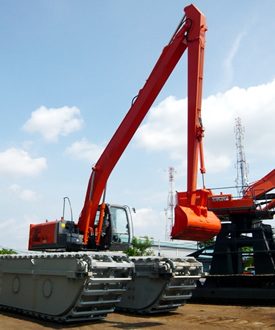

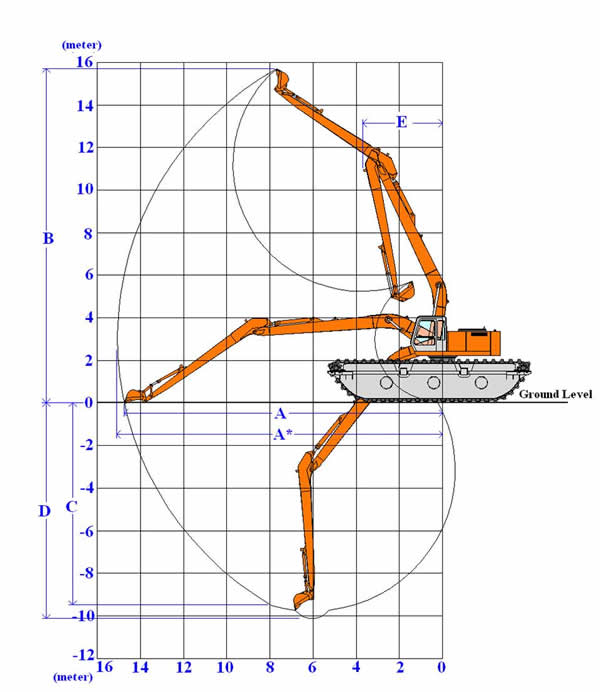

Attachment: Standard configuration of the Marsh Buggy comes with a long reach attachment unless otherwise stated. The convenience of an extended reach and greater working range is always a welcomed advantage when carrying out work in marsh land and dredging related projects.


swamp buggy


marsh buggy        swamp buggy

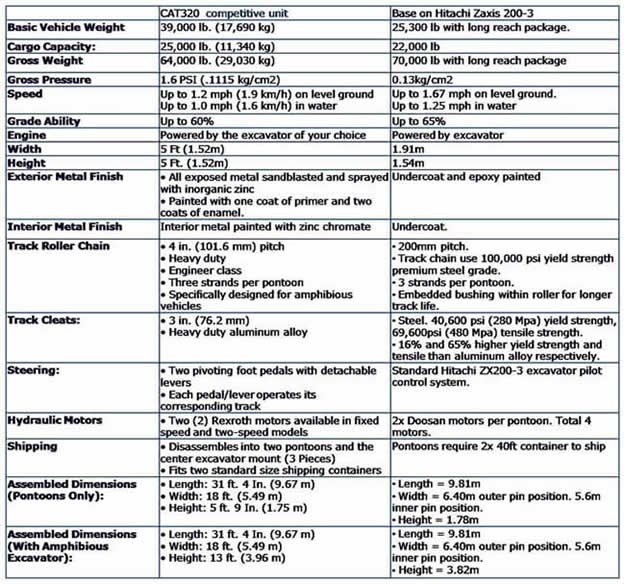

Comparision with our Marsh Buggy a competitive unit with a CAT320 Machine
comparison table

Return to Top


* * To view our full page Marsh Buggy ad, please click here * *

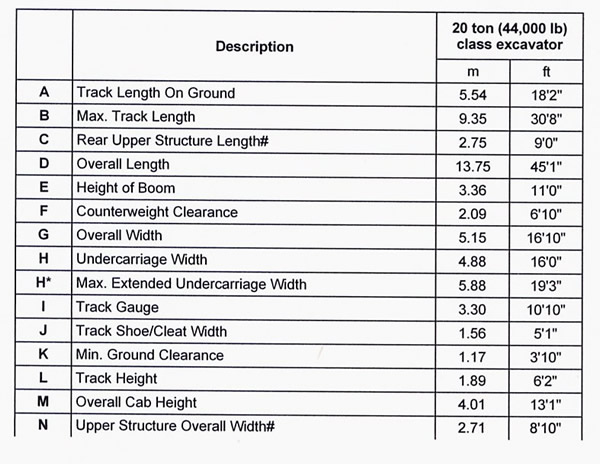

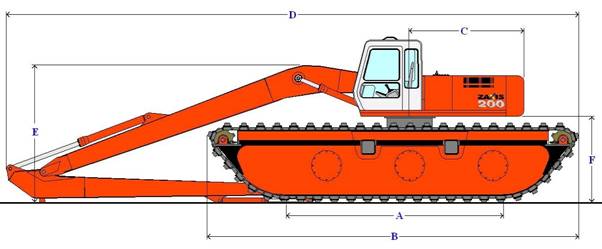

Marsh buggy for 20 metric ton excavator --
Length approximately 9m (29.5 ft)
Height approximately 2m (6.5 ft)
Width approximately 1.2m (4ft)
Hydraulic motor = 2 sets
Weight approx. 20 ton (44,000 lb) per pair
Requires 2x 40ft containers for shipment

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

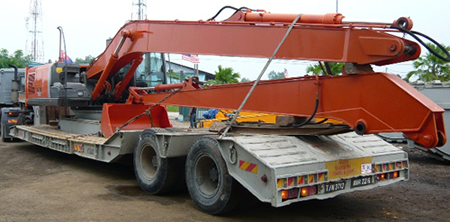

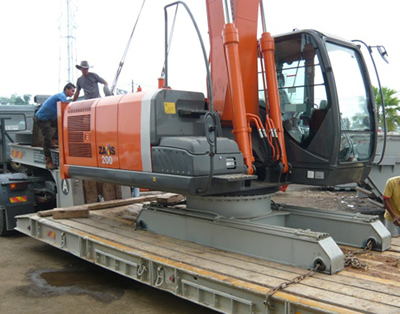

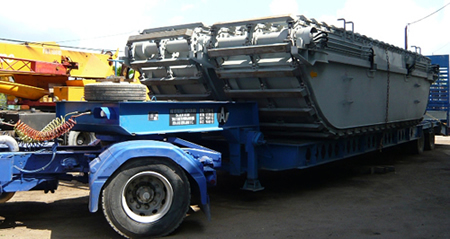

MARSH BUGGY / SWAMP BUGGY IN TRANSPORTATION MODE
EASY TO MOVE OVER THE ROAD

marsh buggy transport

SWAMP buggy transport

marsh buggy transport

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *




Used Marsh Buggies


05052010   LinkBelt 2800  1996 year machine, long boom on 5'x5'x30' froggy bottom, engine was rebuilt and the buggy show real good - P.O.R.







05042010   Komatsu PC60  - P.O.R.











05042010   Personnel and Material Carrier  - P.O.R.






04242010   CAT 320  2004 year machine, with 4000 hrs, with long reach front - $279,000.

04212010   Komatsu Marsh Buggy  - P.O.R.



04162010   CAT 320BL  2000 year machine, 5615 hours, 48" toothed bucket (1.6 yd), 9'7" stick, A/C, radio, 32" pads, 70% U/C, sprockets getting sharp, tight linkage, one owner - P.O.R.









04132010   CAT 320D  - P.O.R.




04132010   CAT Marsh Buggy  unit can be equipped with a long reach boom and stick - P.O.R.


03302010   CAT 325B  2001 year machine, d22 - P.O.R.









03302010   CAT 322  d21 - P.O.R.


03302010   CAT 330B  2002 year machine - P.O.R.


03302010   CAT 320D  top with 150 hours, 2005/2006 year bottom, completely rebuilt chains, tracks, etc. - P.O.R.







03232010   CAT 320BL  2000 year machine with 6332 hrs, on new marsh buggy bottom - P.O.R. NOTE: picture of CAT on marsh buggy bottom is not the one for sale









03232010   CAT 320BL  1998 year machine, 80% UC, engine CAT 3066T, 128 HP, 24” bucket, on new marsh buggy bottom - P.O.R.
NOTE: picture of CAT on marsh buggy bottom is not the one for sale





03182010   Marsh Buggy bottom  set up for a CAT 320C, top can be purchased for this marsh buggy bottom - P.O.R.












Marsh buggy bottom can also be matched with the above CAT 320BL 2000/1998 year machines - P.O.R.


03082010   Marsh Buggy / Swamp Buggy  - P.O.R.

03062010   CAT 330B Marsh Buggy   2004 year machine - P.O.R.      optional long reach front at extra cost - call for price

03042010   Marsh Buggy bottom  Frogco marsh buggy pontoons, dimensions 5'x5'x27', overall width 18’ - P.O.R.

01232010   CAT 322C Marsh Buggy  60' long reach on 5x32 Wilco pontoons for rent or sale, 5600 hours, painted Aug 09, pontoons excellent condition - P.O.R.

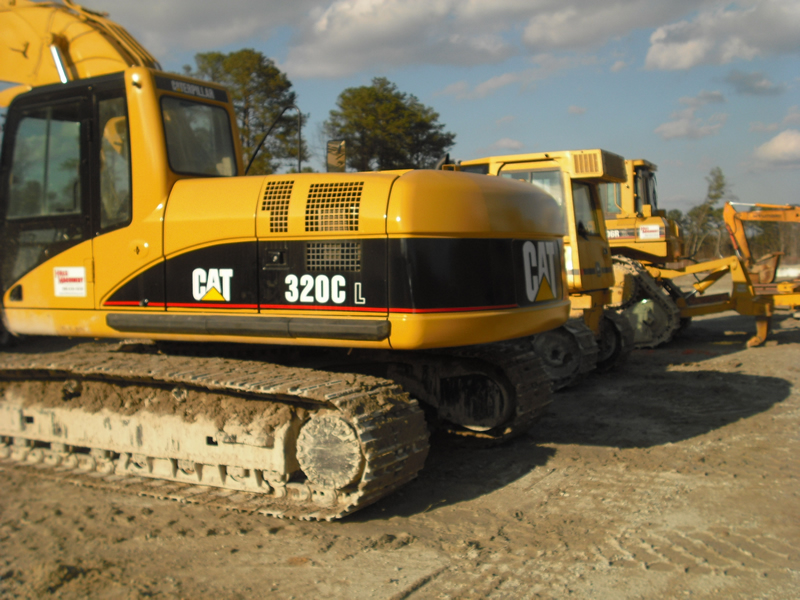

12112009   CAT 320CL Marsh Buggy  2003 year CAT 320CL with 4265 hours, bottom quality year 2003 - P.O.R.




11192009   CAT 320C Marsh Buggy  52’ long reach, built 2008, OA dimensions 19’6” width x 34’ length, excavator weight 30,000 lbs, amphibious weight 36,500 lbs- P.O.R.

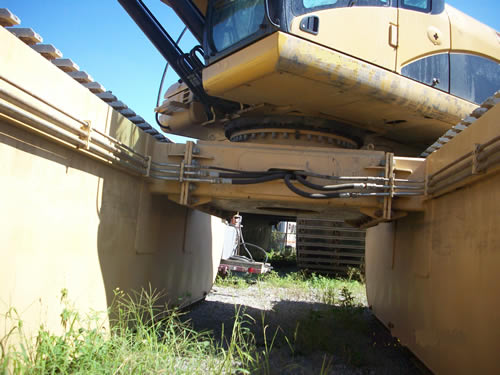

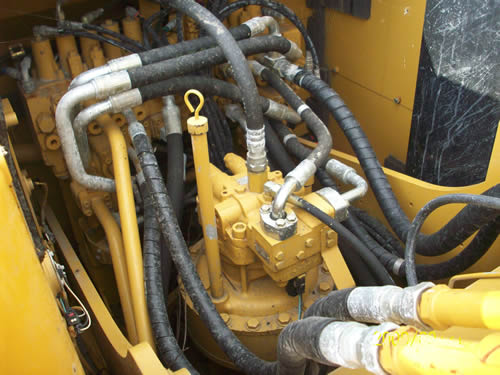

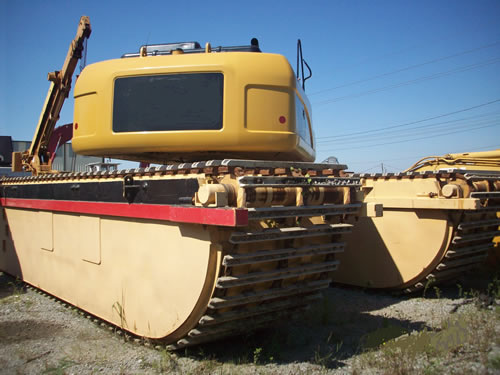

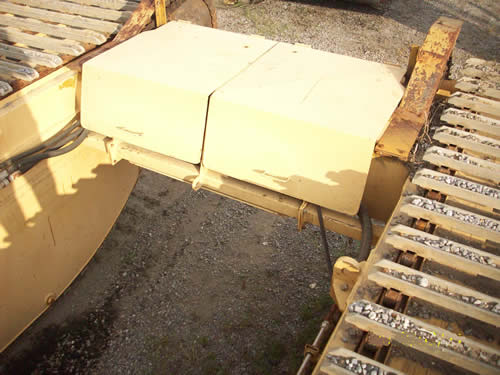

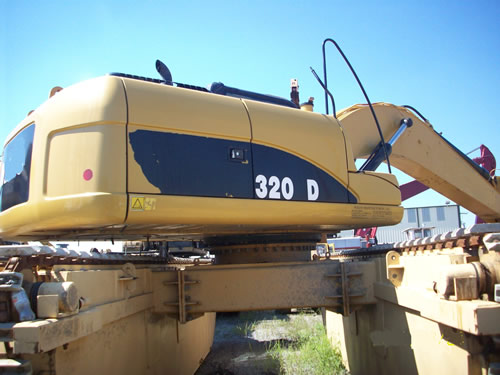

11072009   CAT 320D  WMB 5 x 5 x 28CR hydraulic marsh excavator with CAT 320D upper, unit has approx. 450 hours, ready for delivery. - P.O.R.

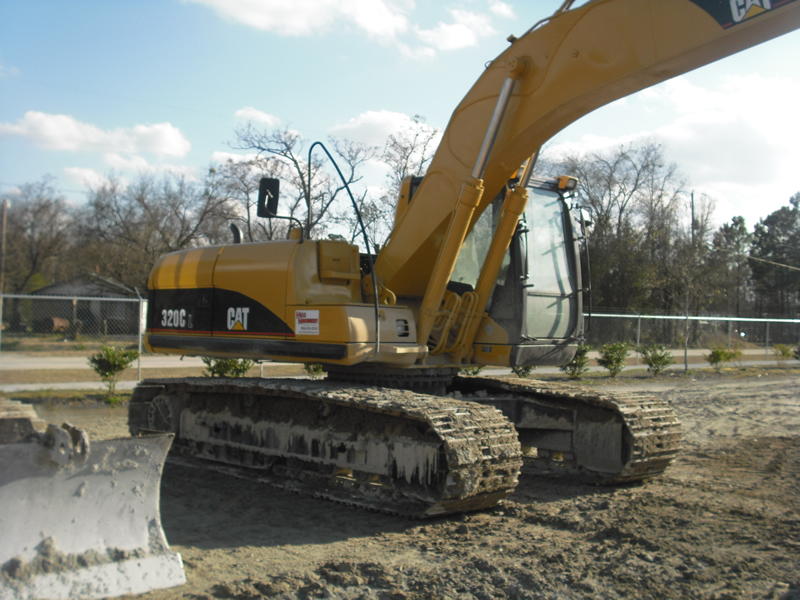

11062009   CAT 320CL  2004 year machine, 4265 hours, one owner machine - P.O.R.

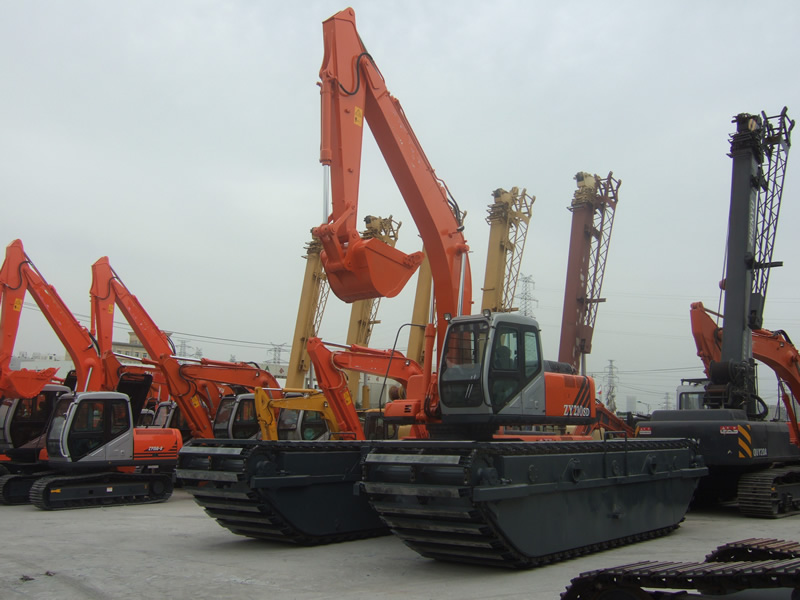

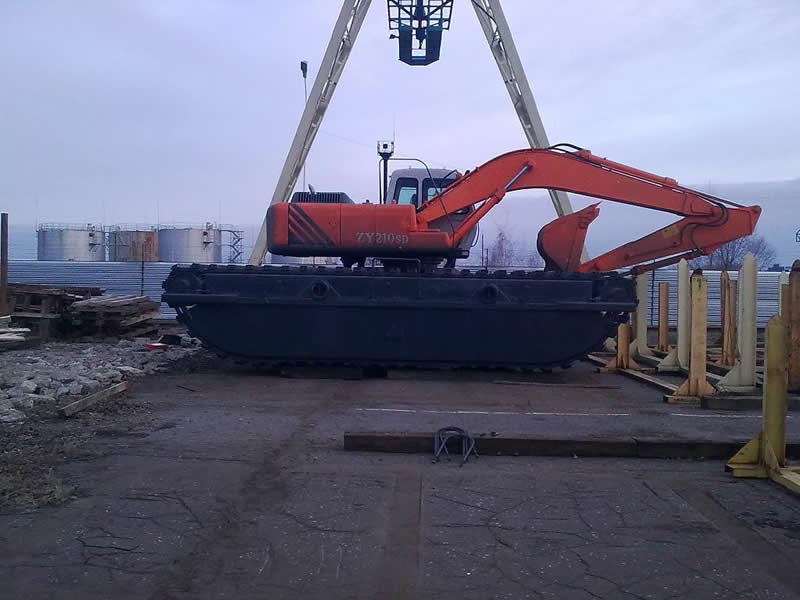

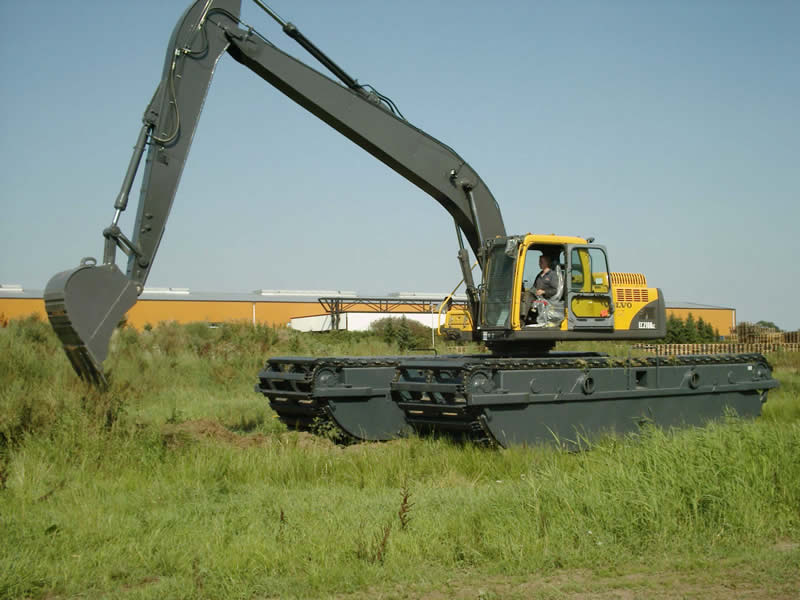

11062009   ZY210SD Amphibious Excavator  has 26T operating weight, 0.8M3 bucket, 1508mm track shoe width, 2912mm arm length, 0.14kg/cm2 ground pressure, 1996mm maximal deepness of the lake - P.O.R.

09242009   Marsh Buggy Package   combine the above marsh buggy with a CAT 320C, a 2006 unit with 2800 hours, mounted on the buggy with a long front - $229,000.

08242009   Marsh Buggy  brand new, 2009 year ZX200, complete package - $295,000.
          click here for more info

03082010   Marsh Buggy  - P.O.R.

     click here for specification

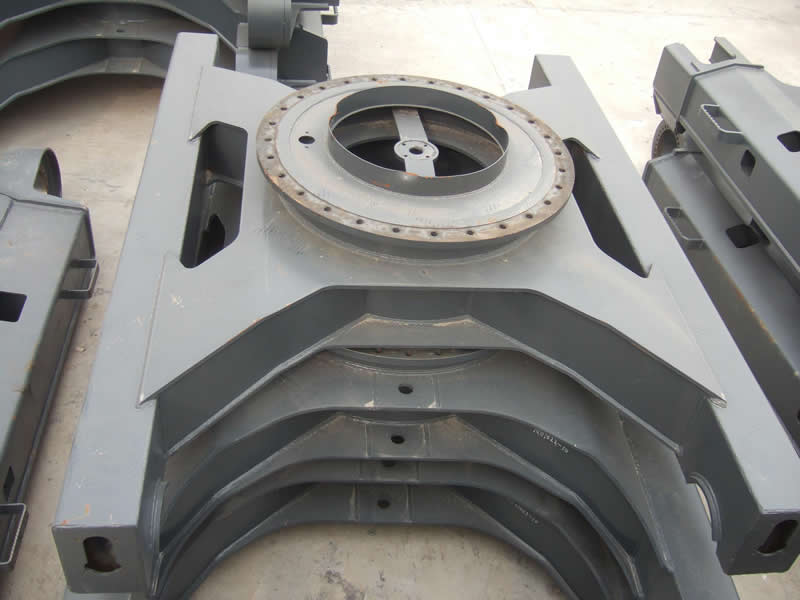

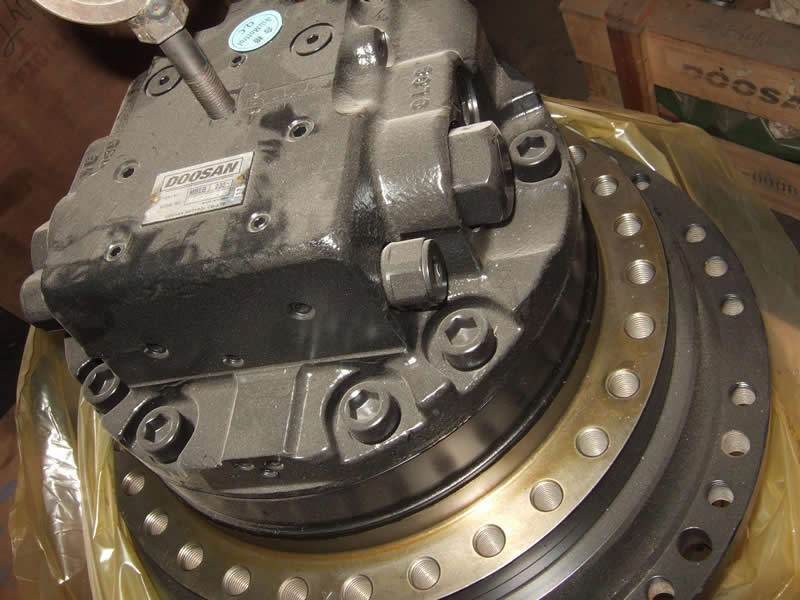

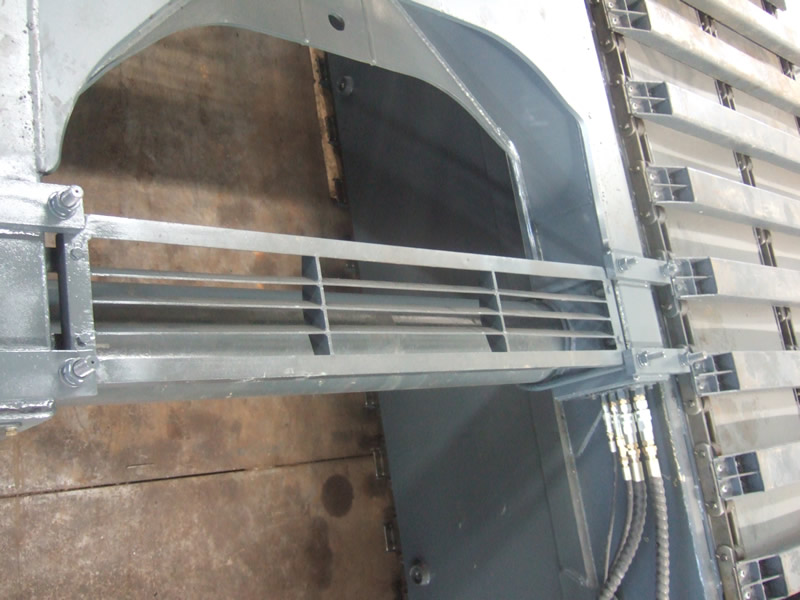

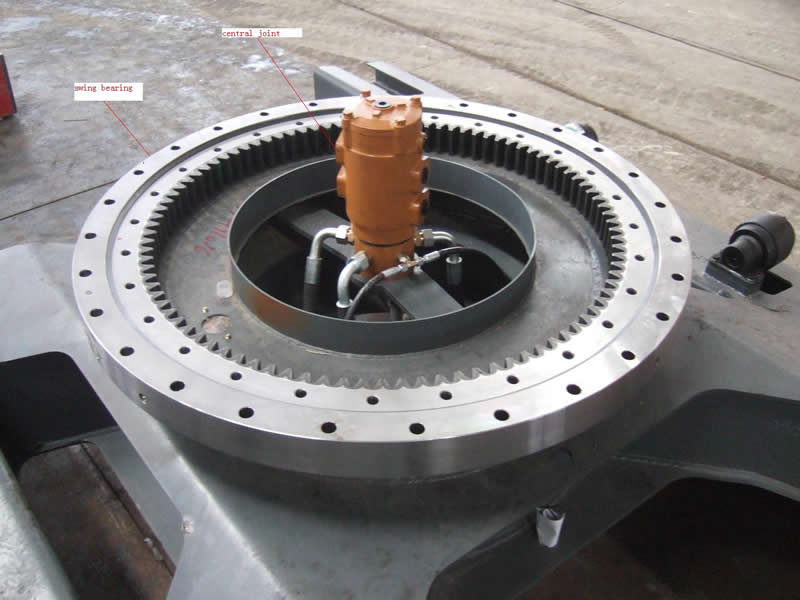

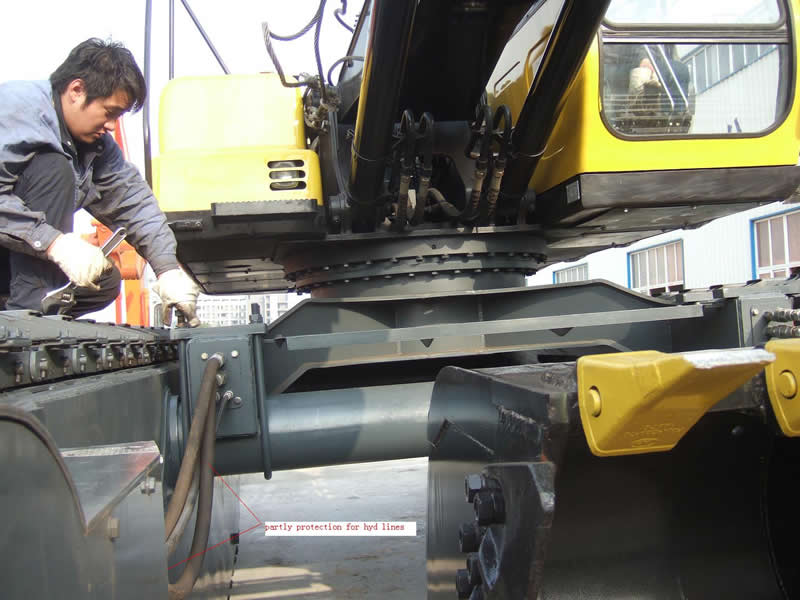

04172010   Marsh Buggy Parts  - P.O.R.     click on the photos to enlarge

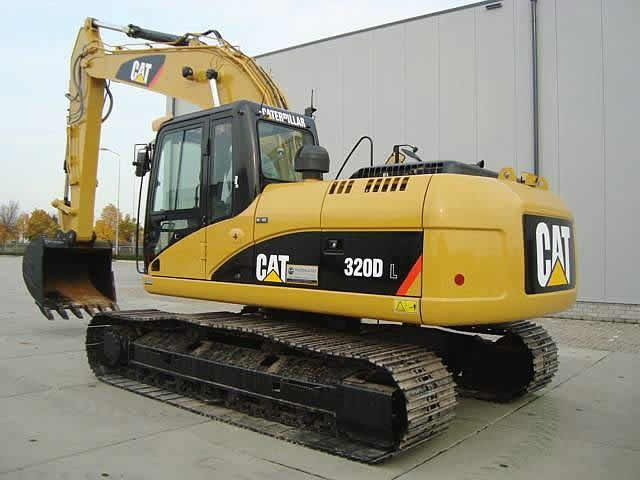

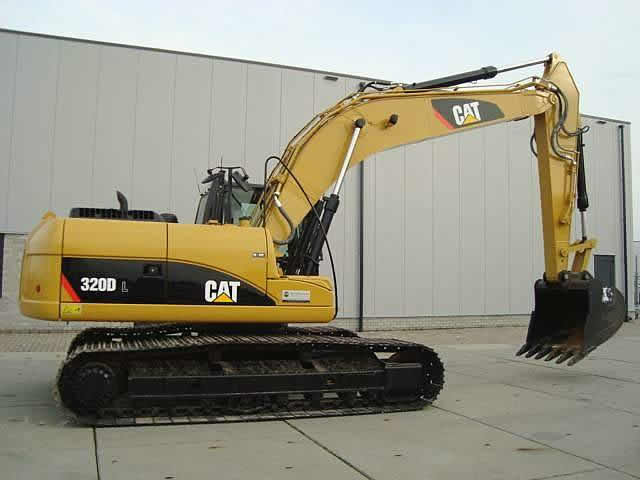

04262010   CAT 320DL   (New) 2009 year machine, subject to availability and not for use in the USA
with new marsh buggy bottom - $330,000.     click on the photos to enlarge

   NOTE:  this machine can be matched with the new marsh buggy bottom listed below

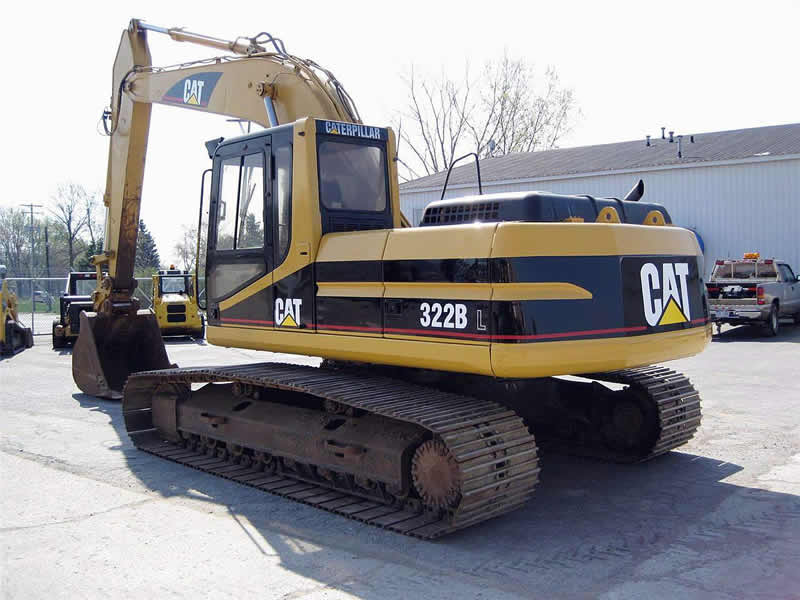

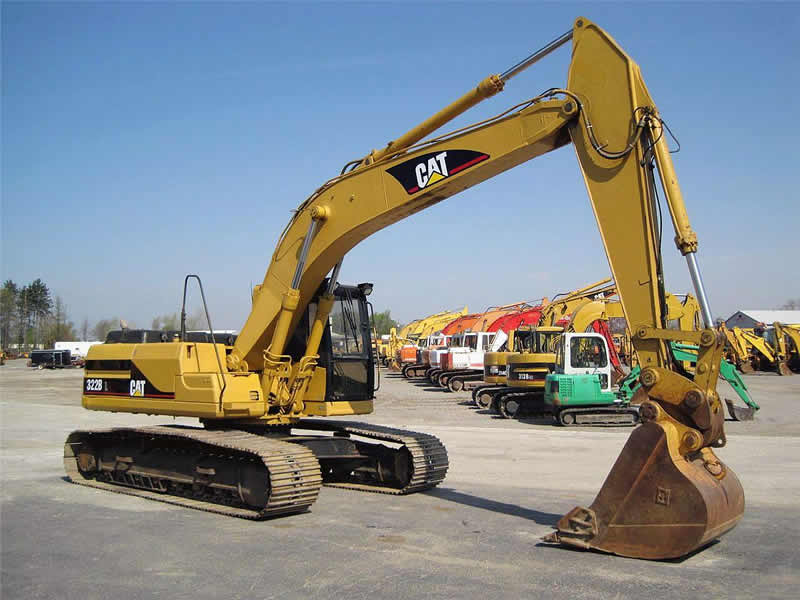

04232010   CAT 322BL  1996 year machine, with new marsh buggy bottom - $195,000.
   supplied with new long front - $215,000.     click on the photos to enlarge

   NOTE:  this machine can be matched with the new marsh buggy bottom listed below

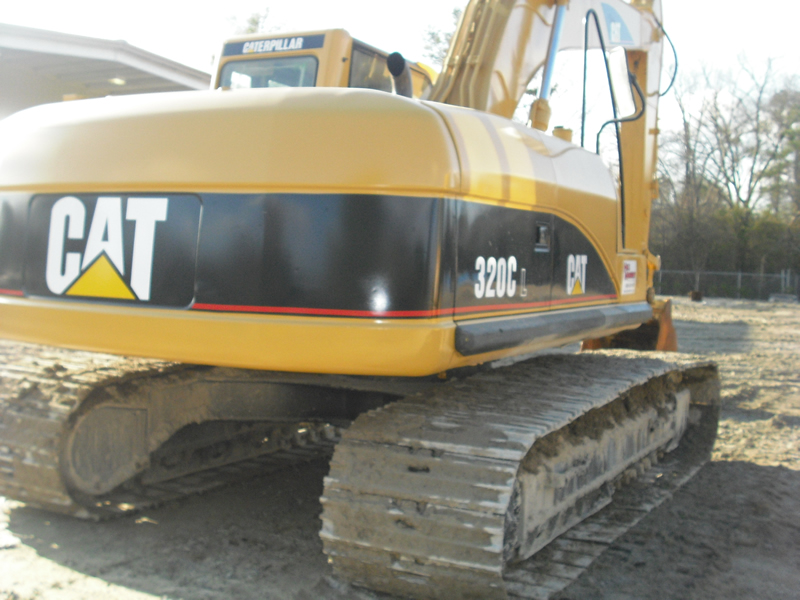

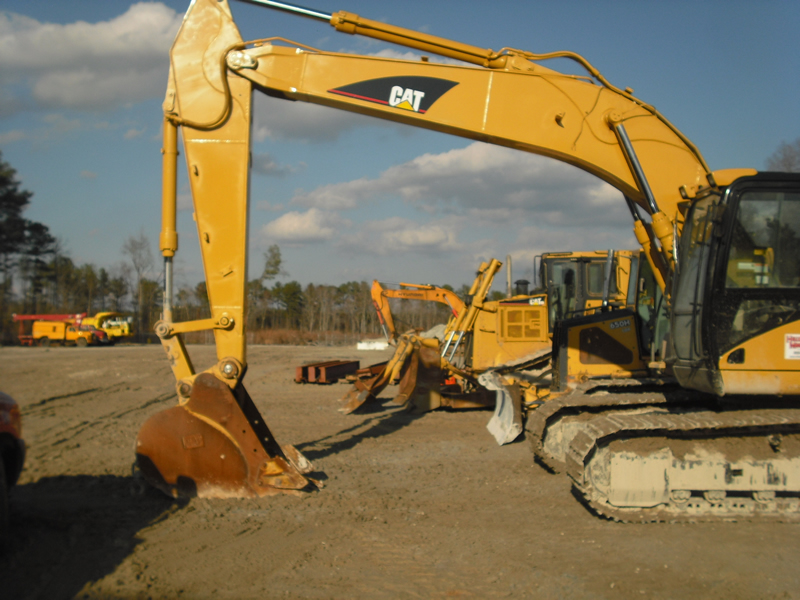

04122010   CAT 320CL  2004 year machine, just line bored the boom stick pin hole and replaced the pin and bushings, new pins in the 2006 CAT 36" bucket, 500 hour service (engine oil, outer air, fuel, hydraulic and cab air filters) performed 50 hours ago, 60-65% remaining on U/C, no leaks, runs well, recently cleaned and painted - $197,000. with new marsh buggy bottom     click on the photos to enlarge



   NOTE:  this machine can be matched with the new marsh buggy bottom listed below


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


Click on the following photos to enlarge















Return to Top

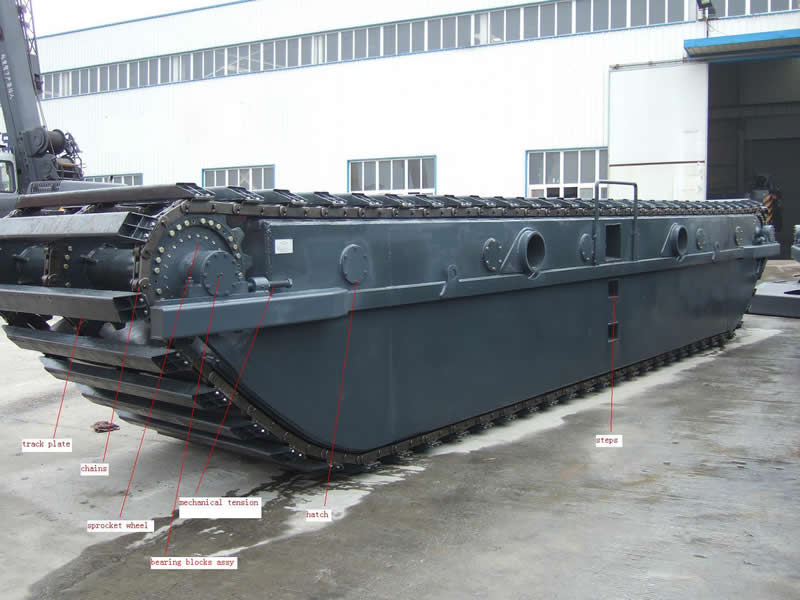

      Marsh Buggy / Swamp Buggy Bottom
